GUANLIN asphalt plant filter bags, 204°C aramid temperature resistance, for dryer drum and mixer dust collection.

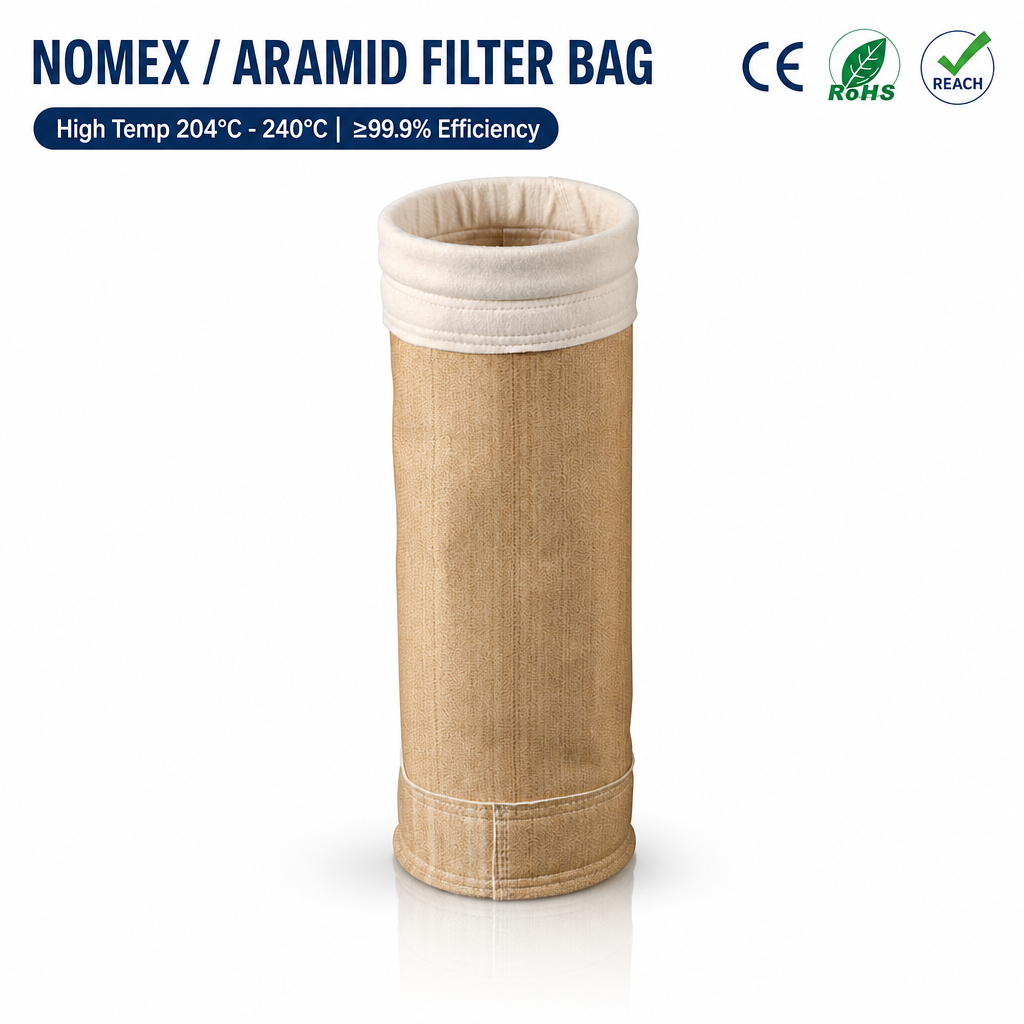

Aramid needle felt filter bags engineered for asphalt mixing plant dryer drums and mixers, resisting 204°C gas with oily bitumen fume and abrasive aggregate dust.
Description
Asphalt plants are one of the few applications where the gas is hot, abrasive and oily at the same time. Dryer drum exhaust reaches 180–200°C, carries aggregate dust that grinds through ordinary felt, and deposits bitumen fume that blinds any media without a release surface. Aramid handles the temperature and the abrasion; a PTFE membrane handles the oil.
Why Choose GUANLIN Asphalt Plant Filter Bags
- 204°C continuous rating — covers dryer drum and mixer exhaust with margin.
- High abrasion resistance — aramid outperforms polyester and PPS against aggregate dust.
- PTFE membrane option — releases bitumen fume instead of blinding.
- Low shrinkage — pleat and bag geometry stay stable through thermal cycling.
- ≥99.9% efficiency — captures fine aggregate and filler dust.
- Custom sizing — Ø130–160 mm × 2000–6000 mm.
Application Scenarios
Dryer drum exhaust
The hottest and most abrasive point in an asphalt plant; aramid with a membrane is the standard specification.
Mixer and pug mill vents
Bitumen fume and filler dust at lower but still elevated temperature.
Hot aggregate transfer points
Abrasive dust with intermittent heat.
Filler silo vents
Fine limestone filler requires high efficiency capture.
Recycled asphalt (RAP) processing
Mixed fume and dust with variable moisture.
Mobile and continuous plants
Compact baghouses with high dust loading per unit area.
Our Factory
GUANLIN has manufactured filtration products in Dongguan since 2003, operating a 6,000 m² plant with automated filter bag sewing lines, automated singeing equipment, cage welding systems and pleated filter production lines. Products are exported to Singapore, Vietnam, Malaysia and other markets, with ISO 9001 and ISO 14001 certified quality management.

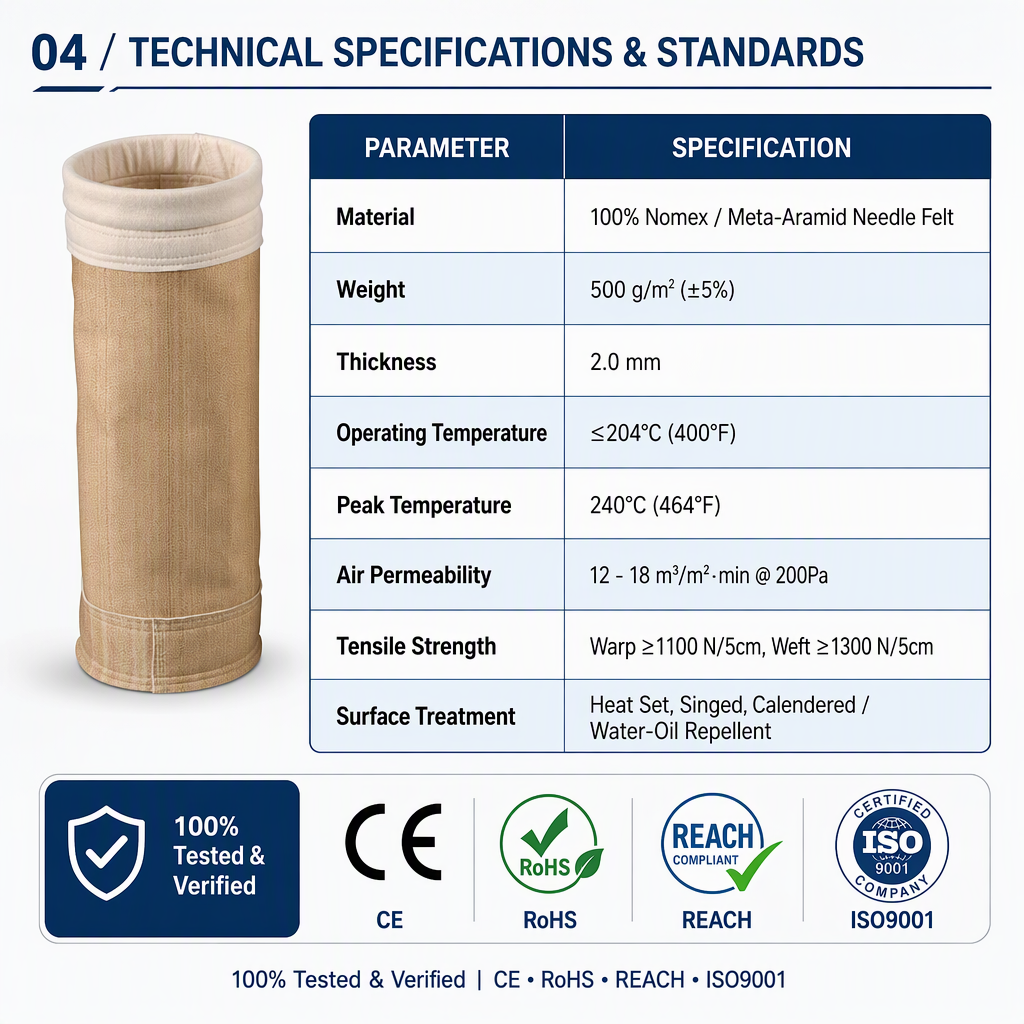

Product Specifications
| Item | Specification |

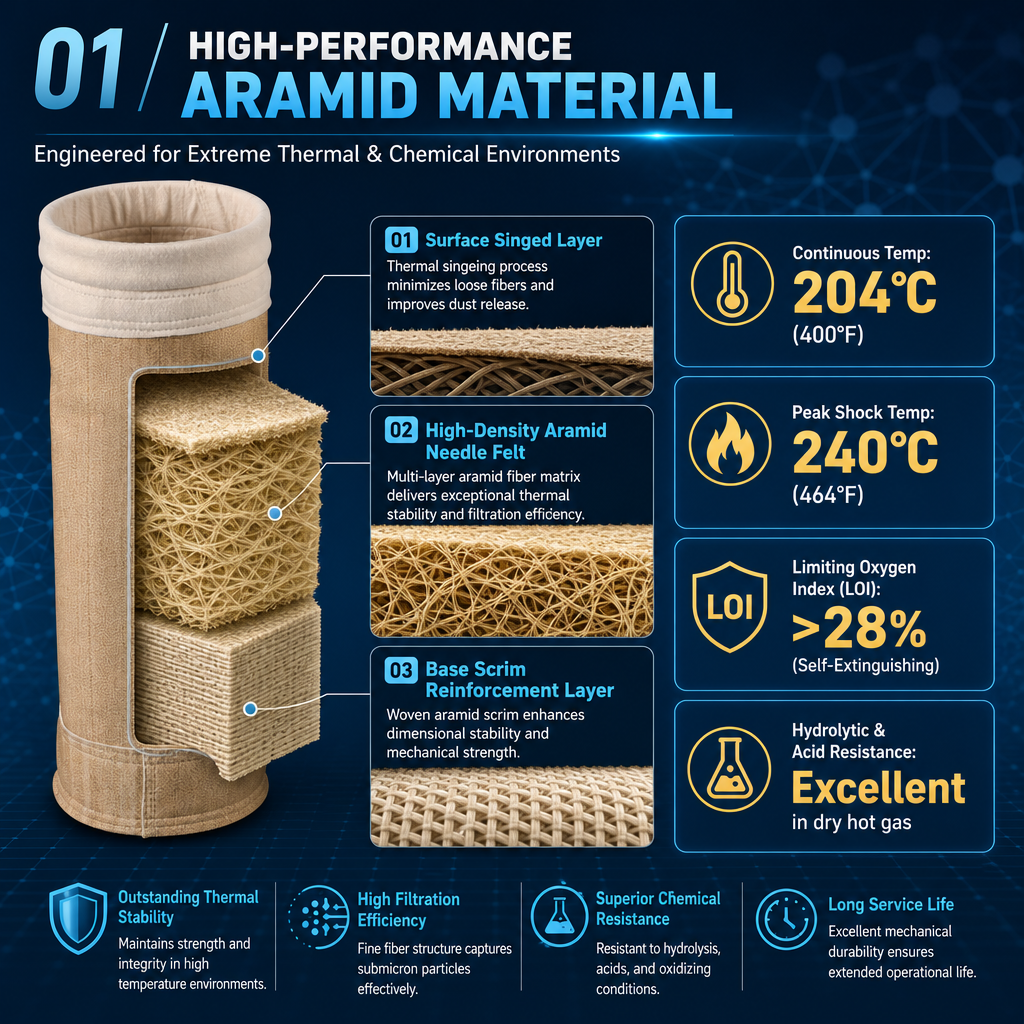

| Media | Aramid (Nomex) needle felt |
| Temperature | 204°C continuous / 240°C peak |
| Surface | Singed; PTFE membrane optional |
| Efficiency | ≥99.9% (particles ≥1 μm) |
| Sizes | Ø130–160 mm × 2000–6000 mm |
| MOQ | 10 pcs |
FAQ
Q1. Why aramid for asphalt plants?
It handles 204°C with far better abrasion resistance than polyester or PPS.
Q2. Do I need the PTFE membrane?
Strongly recommended — bitumen fume blinds untreated felt quickly.
Q3. How long do they last?
Typically 12–24 months depending on dust load and cleaning regime.
Q4. MOQ and lead time?
10 pcs, 7–15 days.
Key Specifications
- Media: aramid (Nomex) needle felt
- Temperature: 204°C continuous / 240°C peak
- Oil resistant: PTFE membrane option
- MOQ: 10 pcs
