GUANLIN polyester needle-punched felt dust collection filter bags, 130°C temperature resistance, for woodworking, cement and flour mill baghouse dust collection.
Polyester needle felt filter bags for pulse jet baghouse dust collectors in woodworking, furniture manufacturing, flour milling and cement plants — 500 g/m², 0.5–100 μm, ≥99.9% efficiency, custom sizes up to Ø160 × 6000 mm, OEM & ODM available.
Description

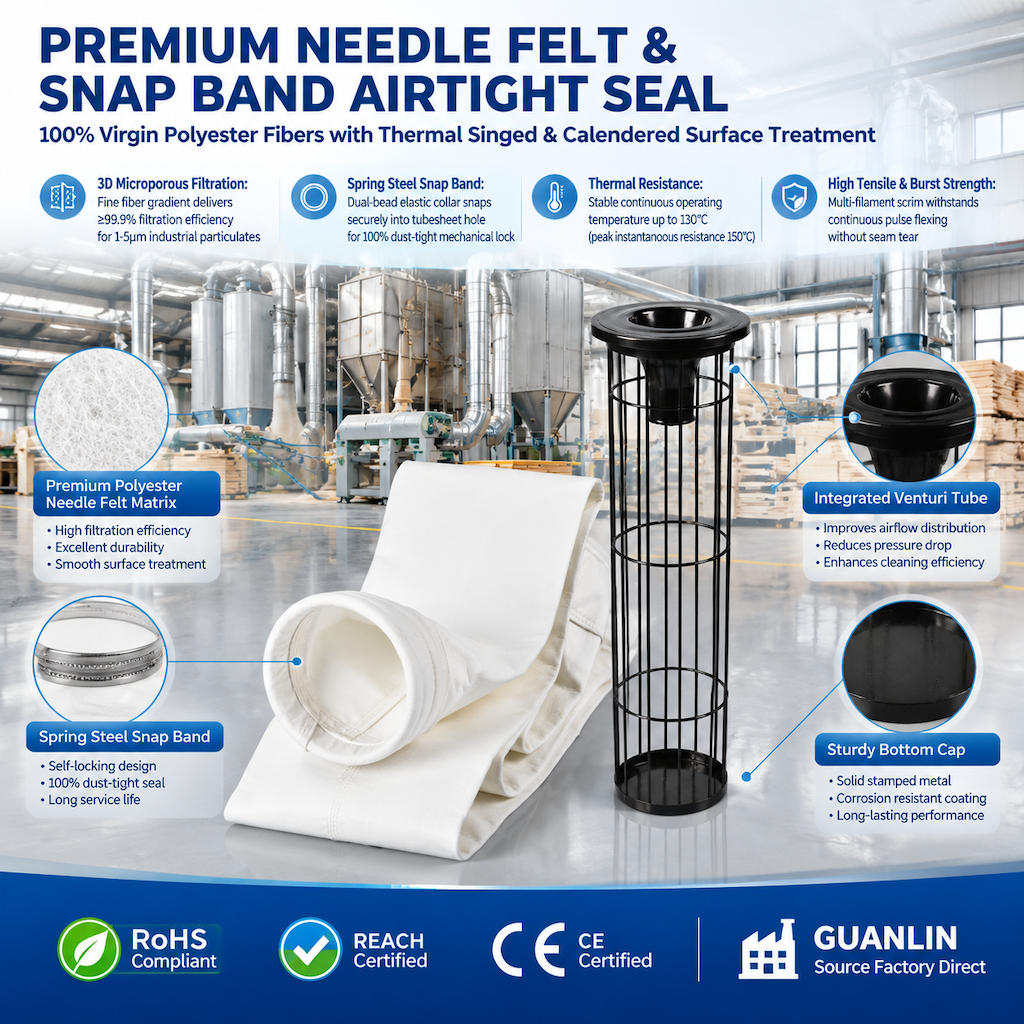

Polyester needle-punched felt dust collection filter bags from GUANLIN are engineered for continuous 130°C service in pulse-jet, shaking and reverse-air baghouses. Virgin polyester fibre, thermal singeing and calendering, and a spring-steel snap band deliver ≥99.9% dust removal efficiency with low running resistance for woodworking, cement, flour milling and foundry applications.
Why Choose GUANLIN Polyester Filter Bags
- Stable 130°C performance — virgin polyester needle felt holds shape and strength in continuous 130°C duty, with a 150°C short-term peak.
- ≥99.9% filtration efficiency — dense needle-punched structure captures fine particulate down to 1 μm.
- Fast dust cake release — singed and calendered surface keeps pressure drop low and extends cleaning intervals.

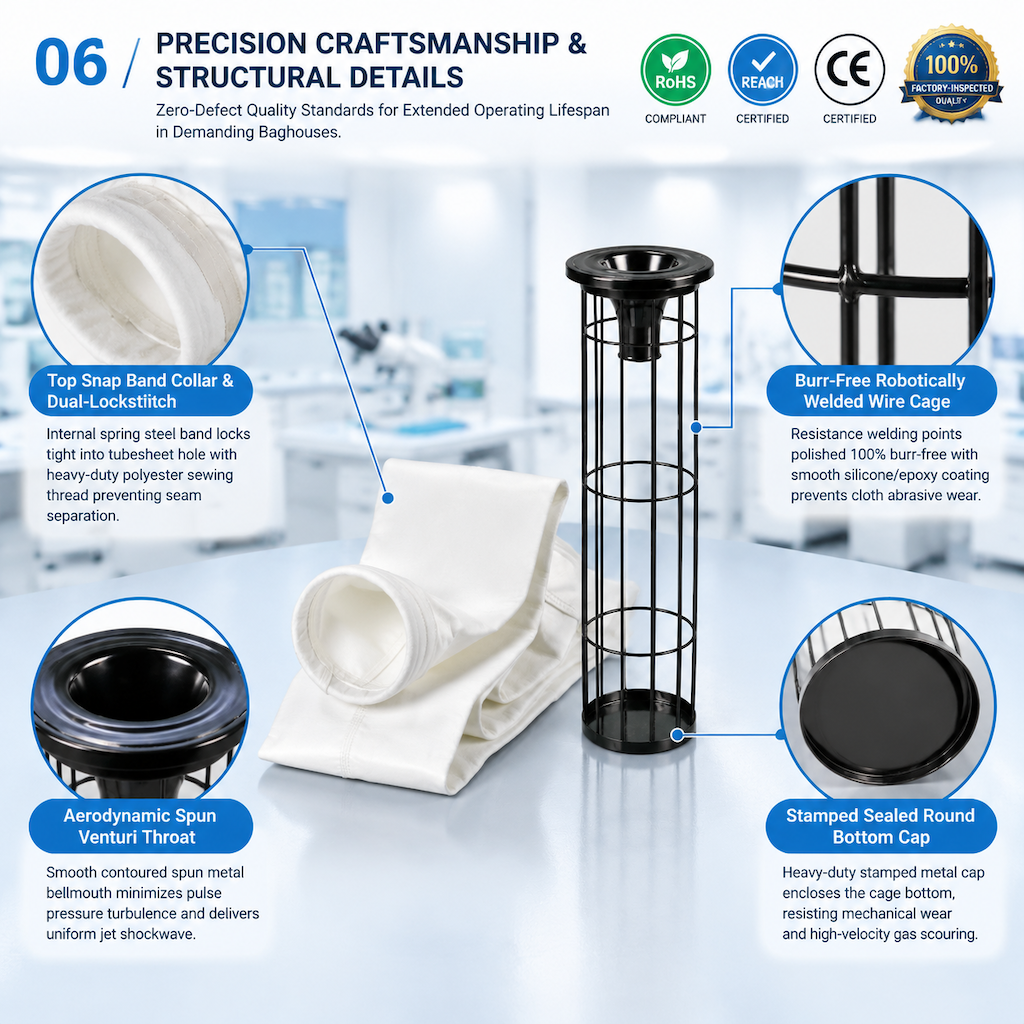

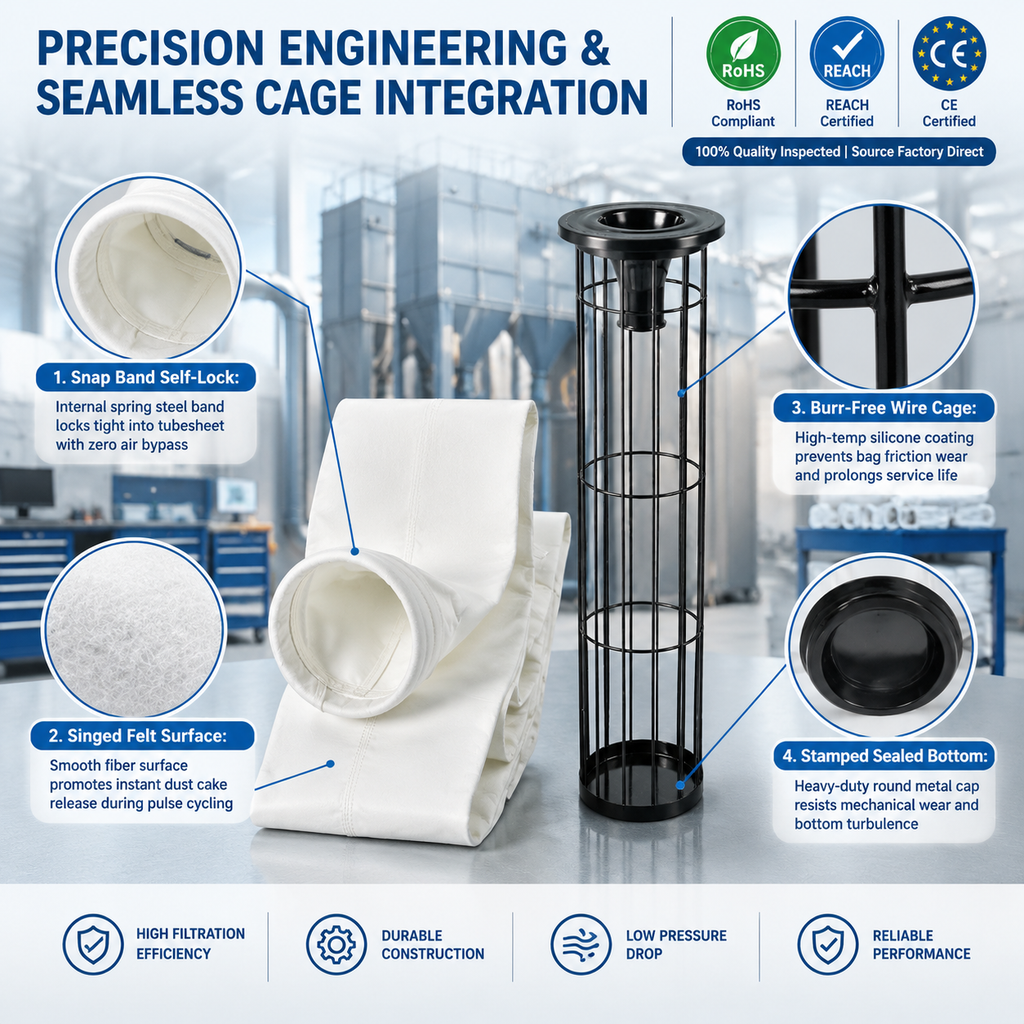

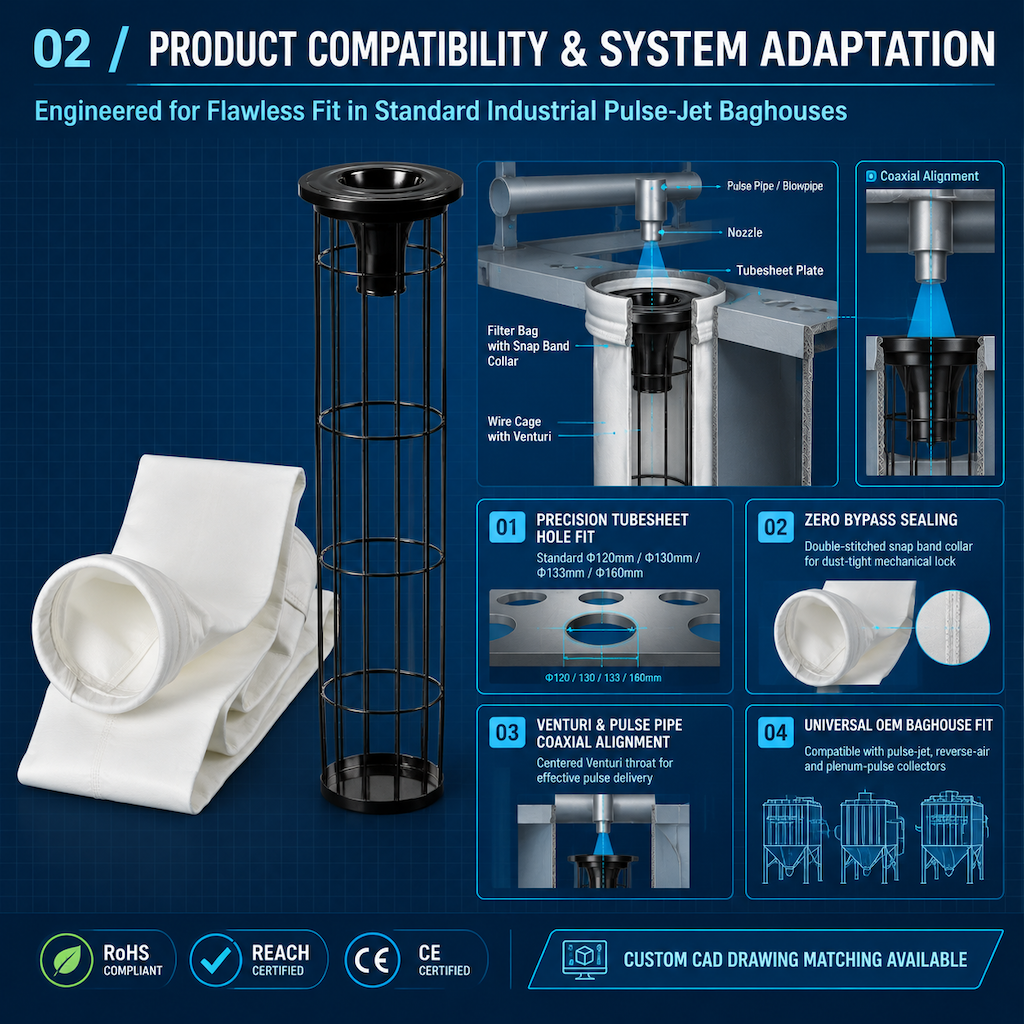

- Snap band airtight seal — dual-bead spring steel collar locks into the tubesheet with zero bypass.
- Reinforced sewing — multi-filament seam with double stitching resists pulse-jet flexing.
- Anti-static and water-oil repellent options — conductive grid for combustible dust, fluorocarbon finish for humid gas.

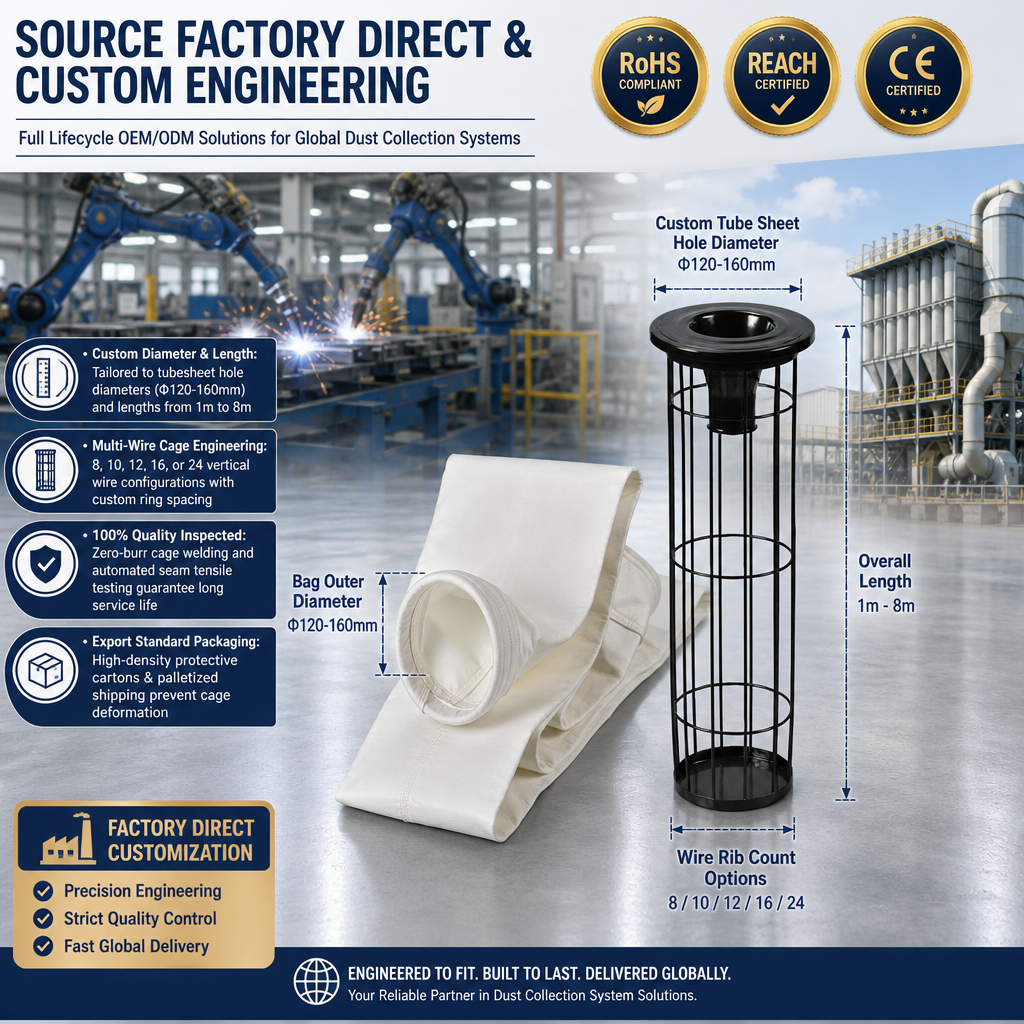

- Custom sizing — Ø115–200 mm × 1000–6000 mm to your drawing, matching existing cages.
- OEM & ODM — private label and custom packaging.
- Factory direct — ISO 9001 certified plant, stable lead time.
- Matched cages available — bags and support cages supplied as a set.
Applicable Working Conditions
- Continuous gas temperature ≤130°C (266°F), short-term peak ≤150°C (302°F)
- Non-corrosive or weakly corrosive dust, controlled humidity
- Pulse jet, shaking or reverse-air cleaning
- Inlet dust concentration up to 100 g/m³
Applicable Industries
- Woodworking and furniture — sawdust, wood flour
- Flour milling and food processing — grain dust, starch
- Cement and concrete batching — raw meal, clinker dust
- Foundry and casting — sand handling dust
- Chemical and powder processing
- Electronics and precision manufacturing
- Pharmaceutical solid dosage workshops
- Carbon black and powder conveying

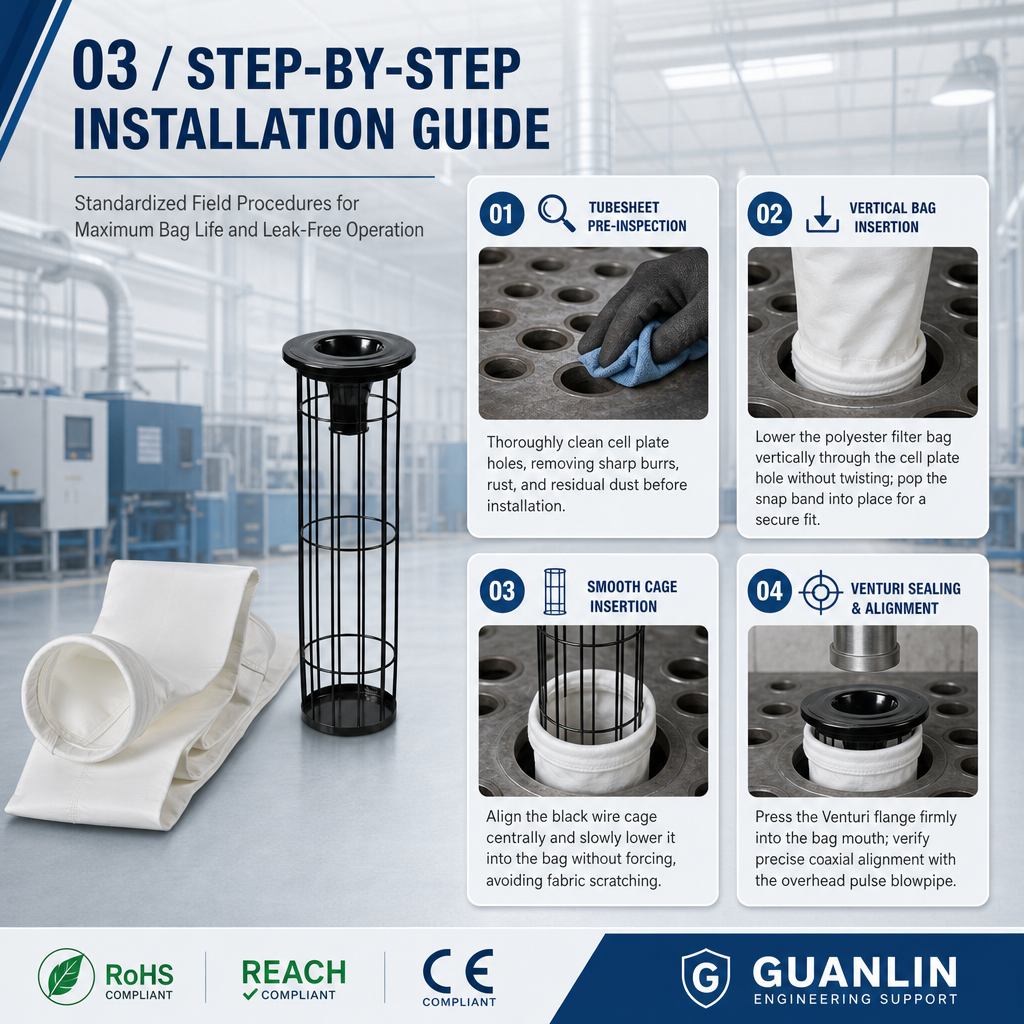

Installation Guide
Remove the old bag from the cage, inspect the cage for corrosion or burrs, slide the new bag over the cage, seat the snap band fully into the tubesheet, and re-tension the venturi. Always replace damaged cages together with the bags to avoid premature wear.

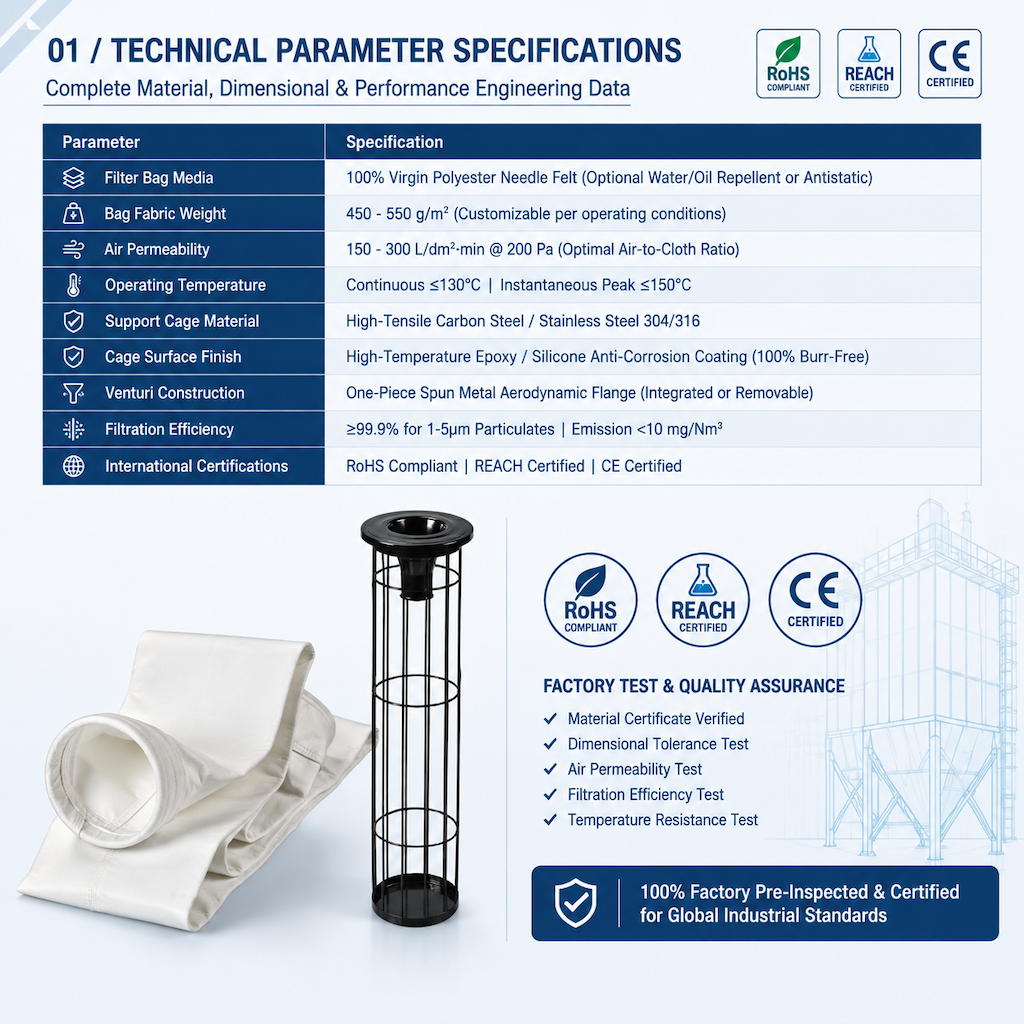

Product Specifications
| Item | Specification |
| Filter Media | 100% Virgin Polyester Needle Felt |
| Basis Weight | 500 g/m² (350–600 g/m² available) |
| Thickness | 1.6–2.0 mm |
| Continuous Operating Temperature | 130°C (266°F) |
| Max Short-Term Temperature | 150°C (302°F) |
| Filtration Rating | 0.5–100 μm (customizable) |
| Dust Removal Efficiency | ≥99.9% (particles ≥1 μm) |
| Air Permeability | 8–15 m³/m²·min @ 200 Pa |

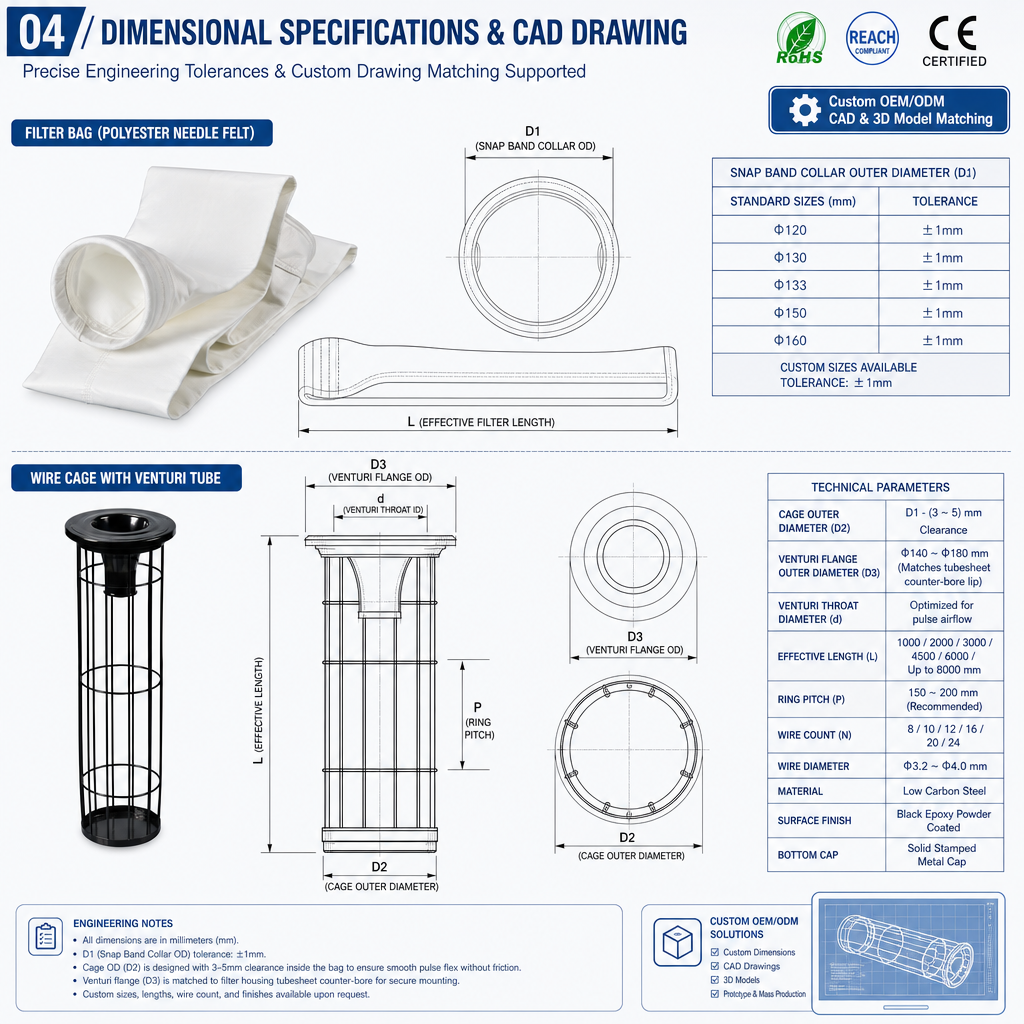

| Available Diameter | Ø115–200 mm |
| Available Length | 1000–6000 mm |
| Top Construction | Snap band / flange / buckle / sewn |
| Bottom Construction | Sewn / reinforced / disc bottom |
| Surface Treatment | Singed, calendered, PTFE membrane, water & oil repellent (optional) |
| MOQ | 10 pcs |
| Lead Time | 7–15 days |
Application Scenarios
Typical installations include woodworking baghouses with high sawdust loading, cement silo top filters, flour mill aspiration systems, foundry shakeout hoods and powder conveying receivers. For sticky or oily dust, select the water and oil repellent finish; for combustible dust, select the anti-static grid construction.
Packaging & Logistics
- Inner: individual polybag with moisture barrier
- Outer: 5-ply export carton or woven bag, 50–100 pcs per carton
- EXW / FOB Shenzhen or Guangzhou / CIF
- Full export documentation: invoice, packing list, CO, certificate of origin
FAQ
Q1. What is a polyester needle-punched felt filter bag?
A fabric filter element made of needle-punched polyester felt, installed inside a baghouse dust collector to capture particulate matter from industrial gas streams.
Q2. What is the maximum working temperature?
Continuous 130°C (266°F), short-term peak 150°C (302°F). Above that, choose PPS, aramid or fiberglass media.
Q3. Can it be used for combustible dust?
Yes — select the anti-static version with conductive yarn or grid and proper grounding of cage and baghouse.
Q4. How do I choose the right filter bag size?
Provide the cage diameter, bag length and top construction type. We produce to your drawing.
Q5. What filtration efficiency can I expect?
≥99.9% for particles ≥1 μm; add a PTFE membrane for sub-micron capture.
Q6. Why is my pressure drop rising?
Usually dust cake blinding from moisture or oil. Use the water and oil repellent treatment and check pulse pressure and interval.
Q7. Why are my bags wearing out early?
Cage corrosion or burrs, excessive pulse pressure, or inlet abrasion. Check cage condition and consider a wear sleeve.
Q8. Do you support OEM orders?
Yes, OEM and ODM are supported with private labeling and custom packaging.
Q9. What is the MOQ and lead time?
MOQ 10 pcs, 7–15 days for standard sizes.
Q10. Can you supply matching filter cages?
Yes, we manufacture bags and support cages as a matched set.
Key Specifications
- Material: 100% virgin polyester needle-punched felt, 500 g/m²
- Continuous operating temperature: 130°C (266°F); short-term peak 150°C (302°F)
- Filtration rating: 0.5–100 μm; efficiency ≥99.9% for particles ≥1 μm
- Available sizes: Ø115–200 mm × 1000–6000 mm, fully customizable
- Top construction: snap band / flange / buckle / sewn
- MOQ & lead time: 10 pcs, 7–15 days
