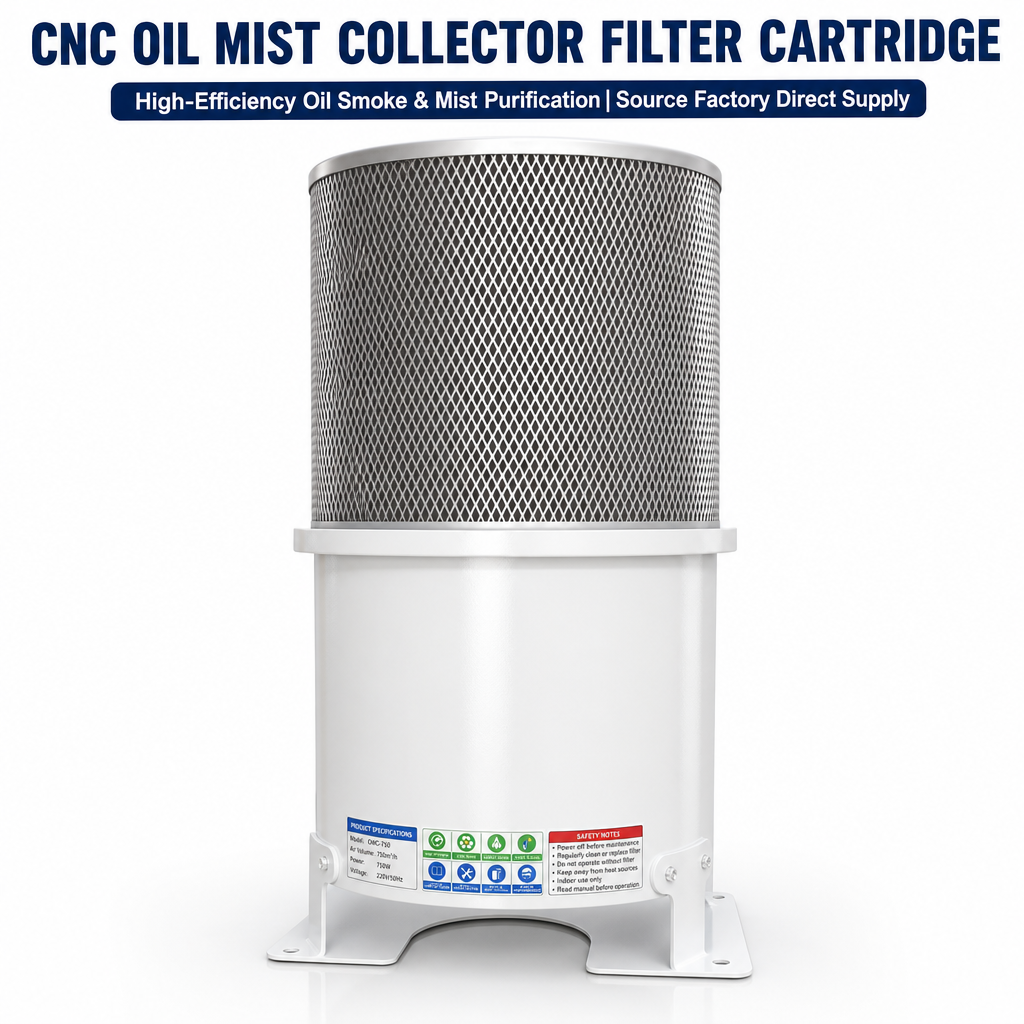

GUANLIN CNC oil mist filter cartridge, mist and smoke element for machining centres and EDM equipment.
Two-stage oil mist cartridges that capture coolant mist and machining smoke at the machine, keeping workshop air clean without ducting the whole shop.
Description
Coolant mist is one of the least visible and most persistent air quality problems in a machine shop. It hangs in the air for hours, settles on every surface, and gets into lungs. Machine-mounted mist collectors solve it at source, and the cartridge inside is what determines whether the unit keeps working or becomes another maintenance item nobody services.
Why Choose GUANLIN CNC Oil Mist Cartridges

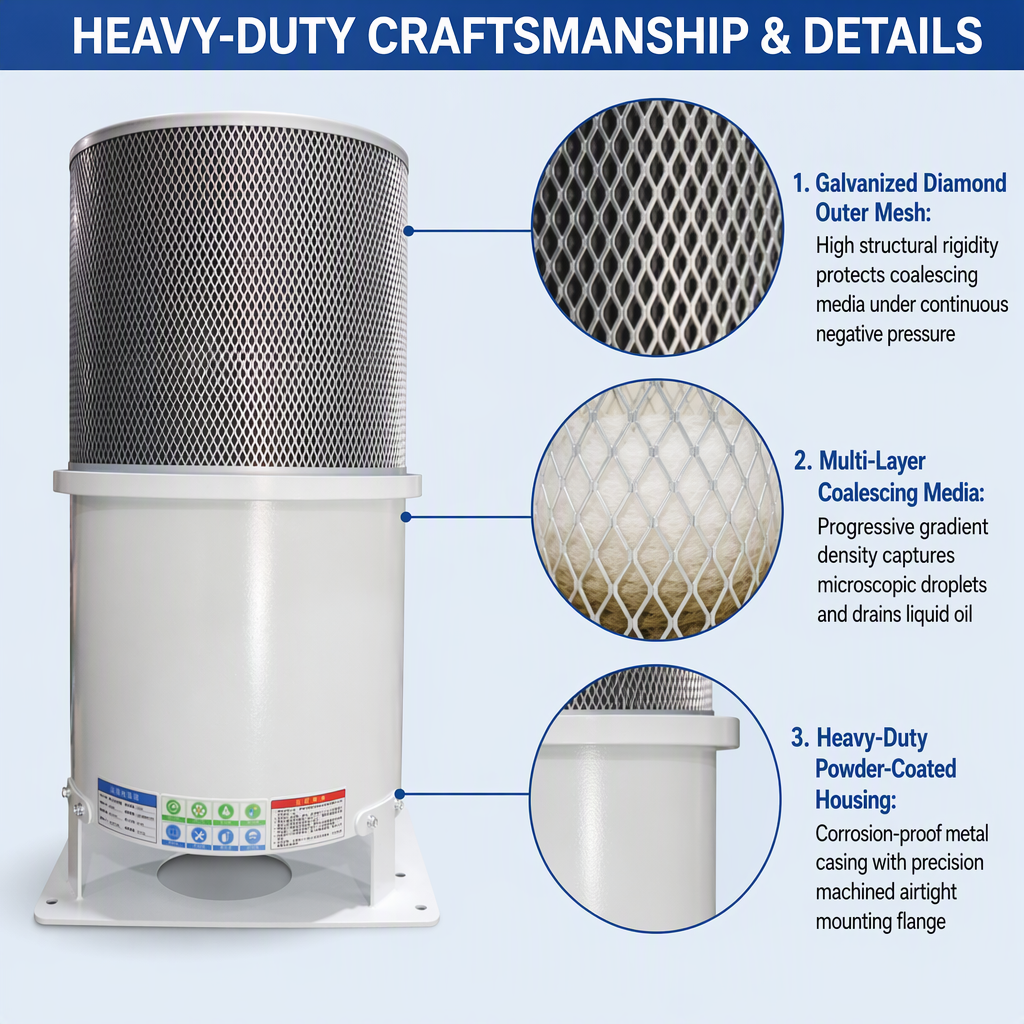

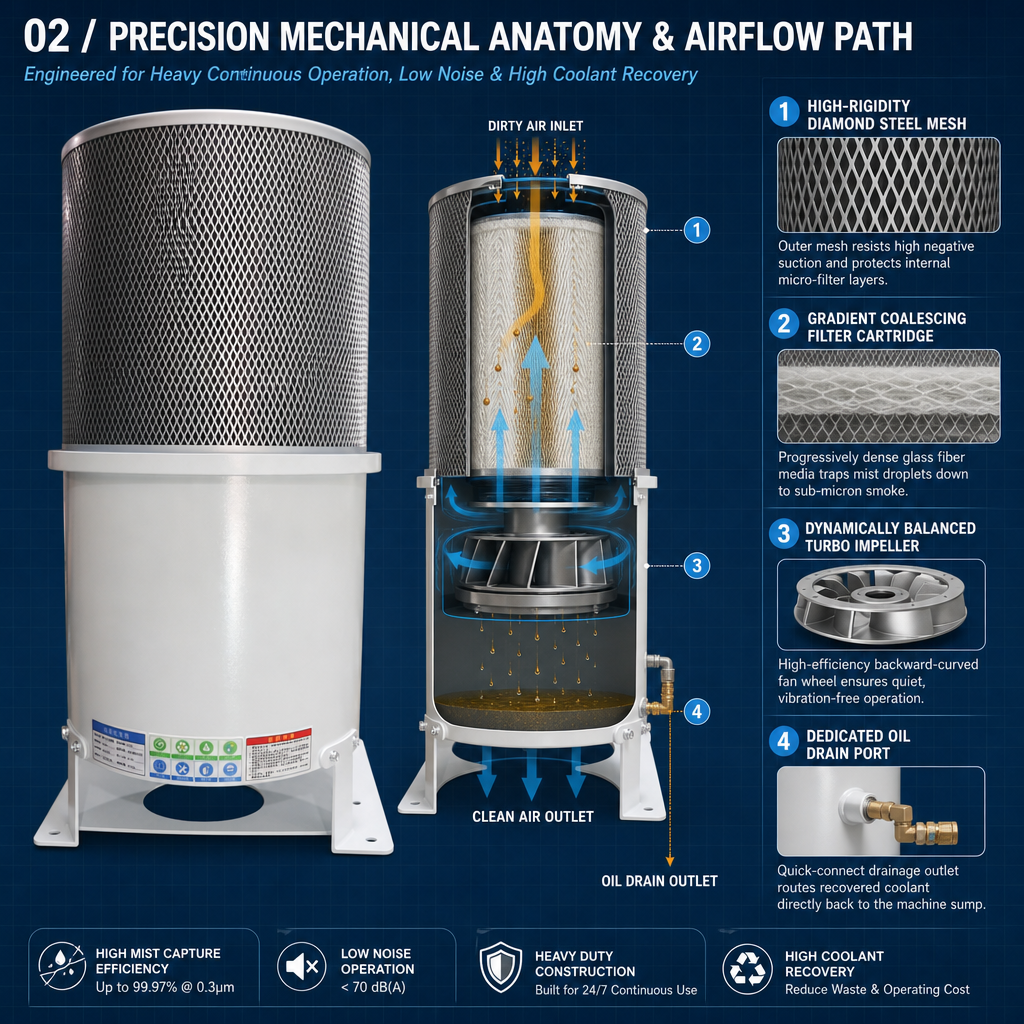

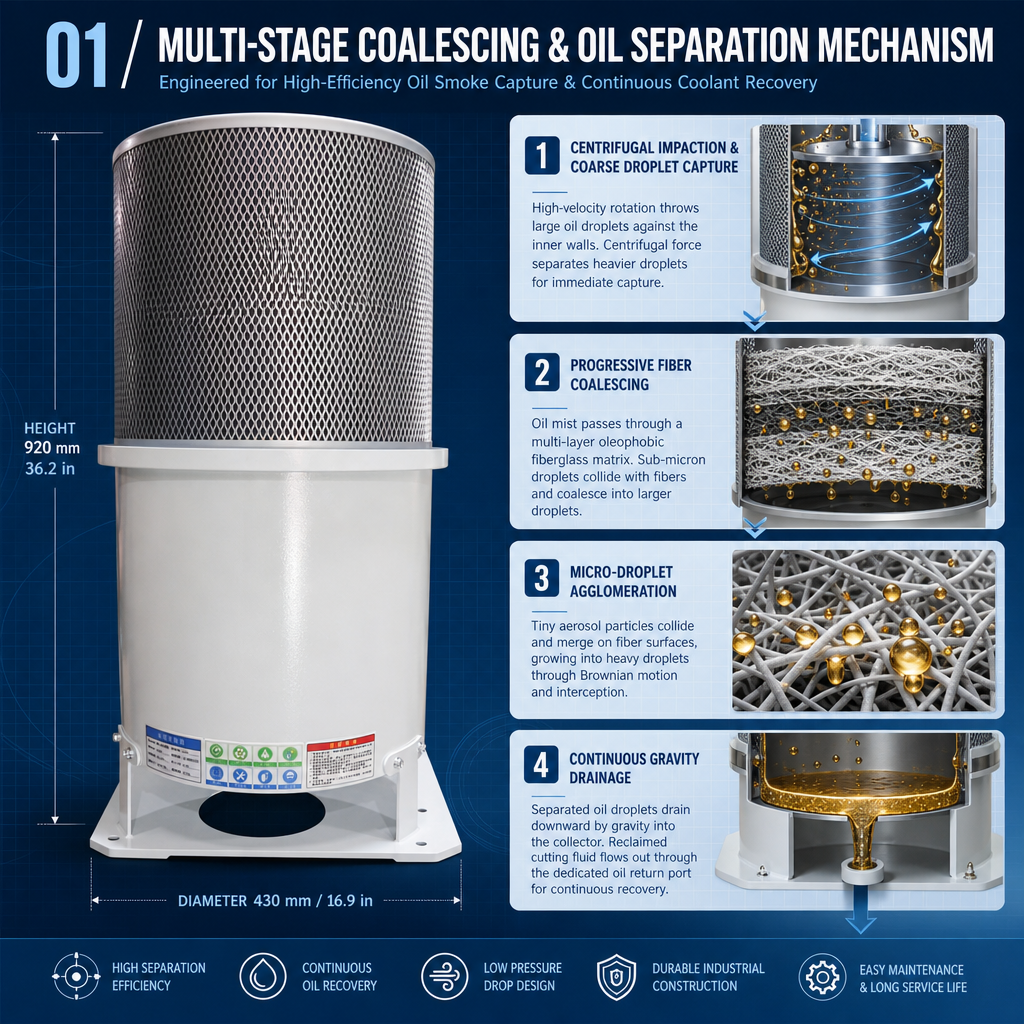

- Two-stage design — coalesces liquid, then captures smoke.
- High mist capture — clean air returned to the workshop.
- Drain-back structure — captured coolant returns to the machine.
- Compact footprint — fits machine-mounted housings.
- Stable resistance — keeps extraction flow consistent.
- Simple replacement — quick element swap.

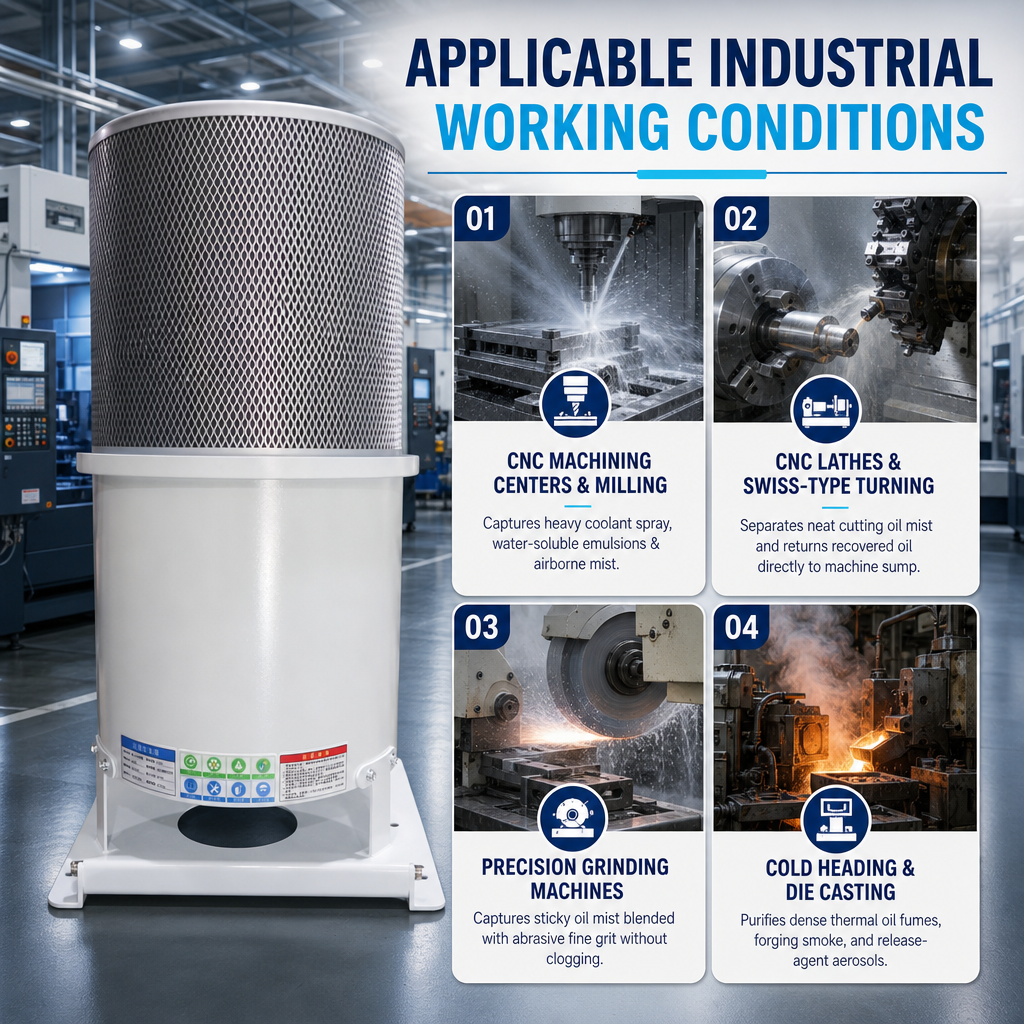

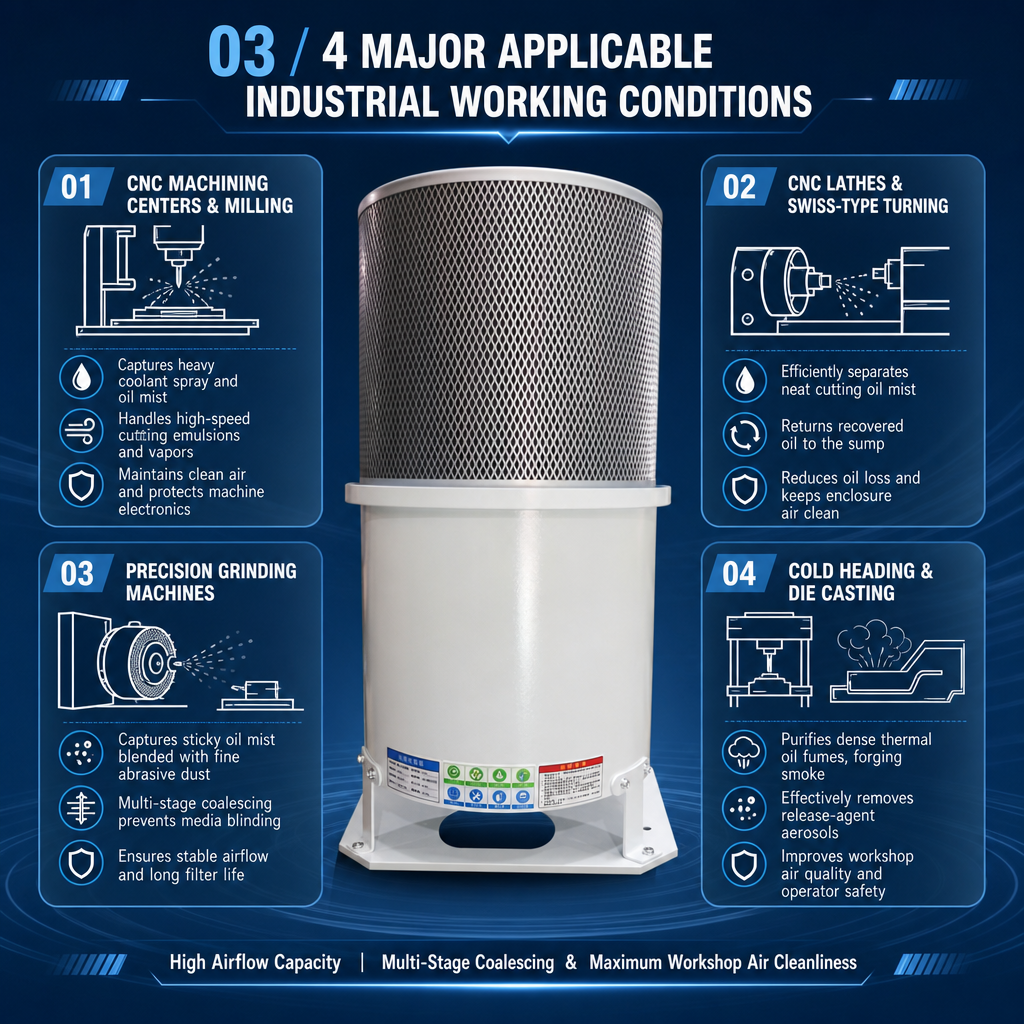

Application Scenarios
CNC machining centres
Coolant mist capture at the enclosure.
EDM and wire EDM
Dielectric mist and smoke removal.
Surface and cylindrical grinding
Fine mist plus metal particle capture.
Screw machine and Swiss turning
High pressure coolant mist.
Gear hobbing and cutting
Oil smoke from neat cutting oils.
Machine shop central systems
Multi-machine mist collection.
Our Factory
GUANLIN has manufactured filtration products in Dongguan since 2003, operating a 6,000 m² plant with automated filter bag sewing lines, automated singeing equipment, cage welding systems and pleated filter production lines. Products are exported to Singapore, Vietnam, Malaysia and other markets, with ISO 9001 and ISO 14001 certified quality management.

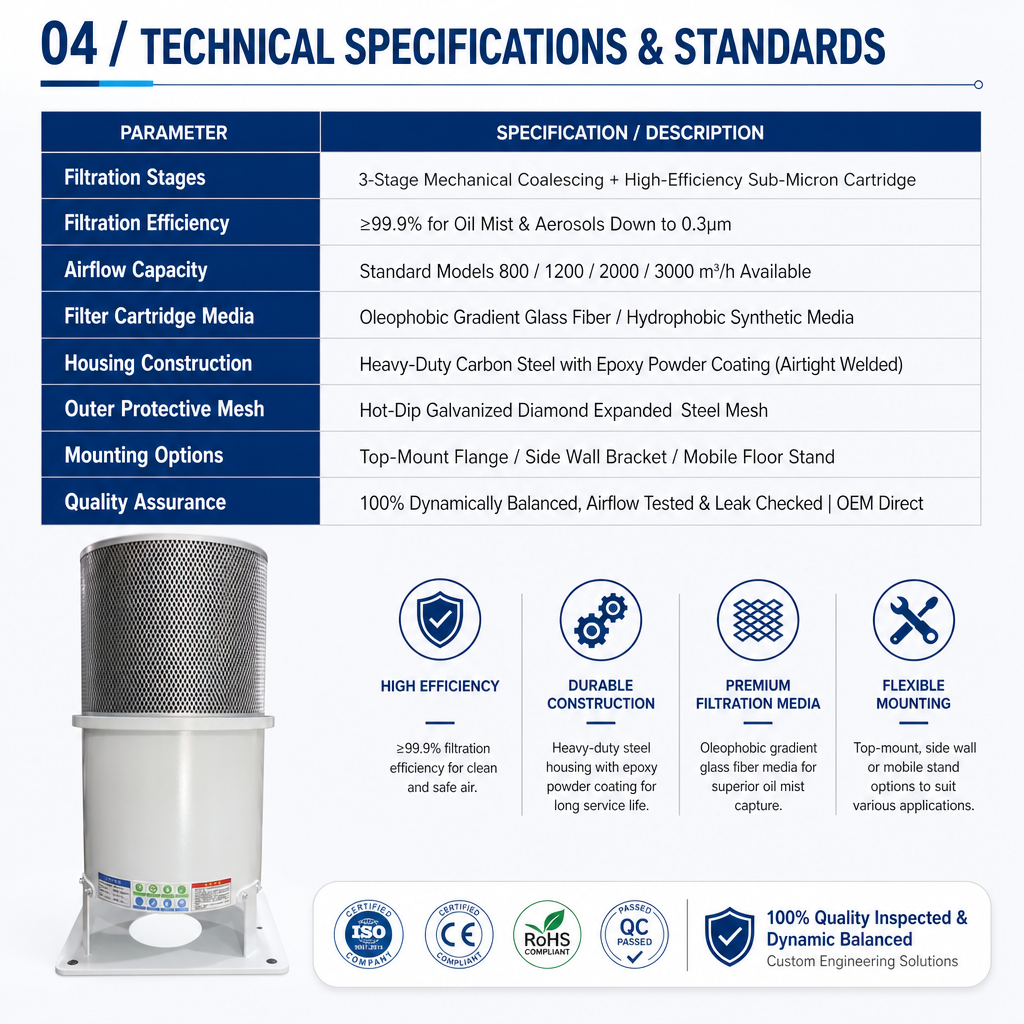

Product Specifications
| Item | Specification |
| Type | Two-stage mist and smoke cartridge |
| Stage 1 | Coalescing mesh |
| Stage 2 | Pleated fine filtration |
| Application | CNC, EDM, grinding |
| MOQ | 50 pcs |
FAQ
Q1. How often to replace?
Typically 3–6 months depending on machining hours and coolant type.
Q2. Does it handle neat oil smoke?
Yes, with the fine stage selected for smoke duty.
Q3. Is coolant recovered?
Yes, coalesced liquid drains back to the machine.
Q4. MOQ and lead time?
50 pcs, 10–20 days.
Key Specifications
- Type: two-stage mist and smoke cartridge
- Application: CNC, EDM, grinding
- Stages: coalescing + fine filtration
- MOQ: 50 pcs
