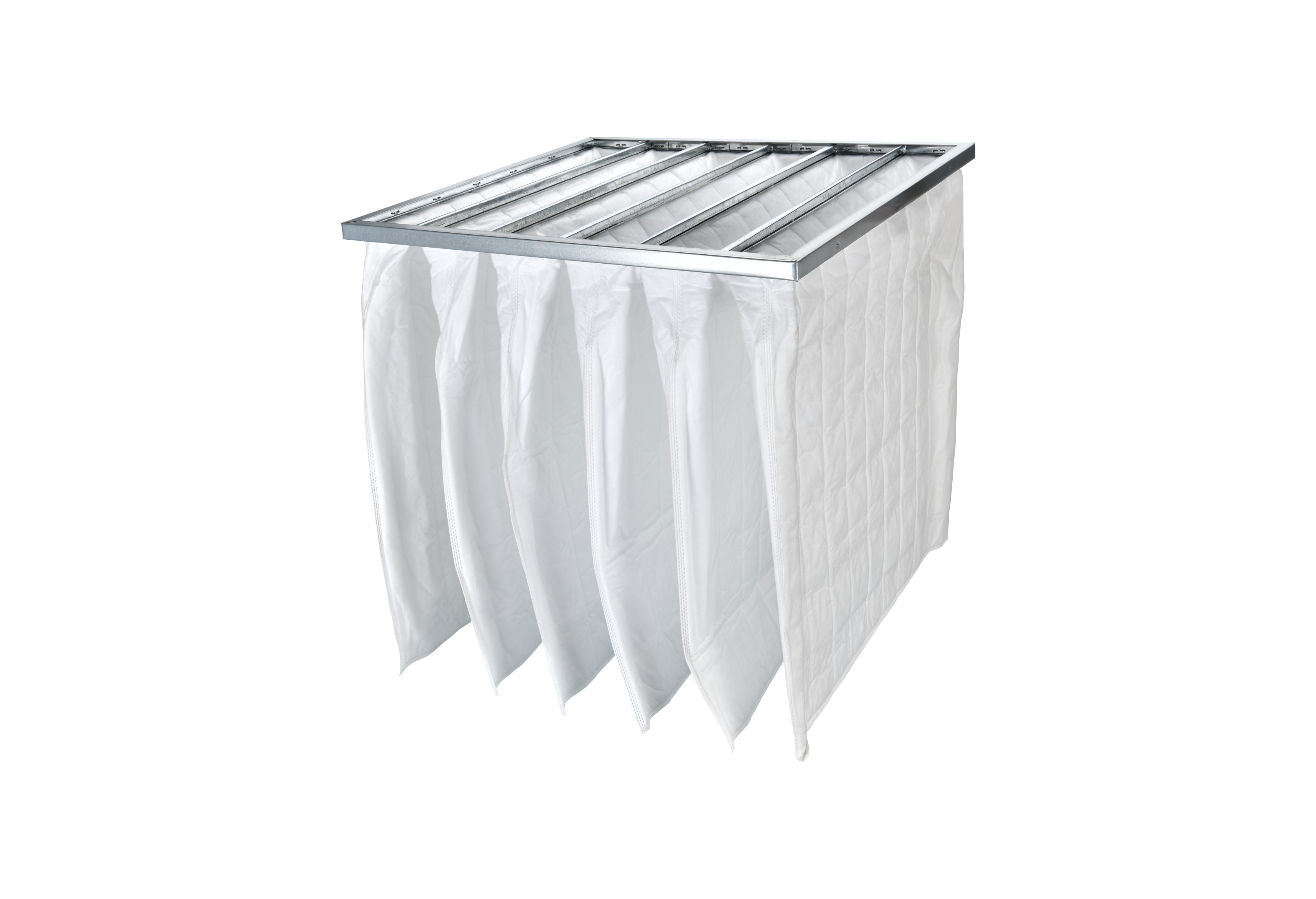

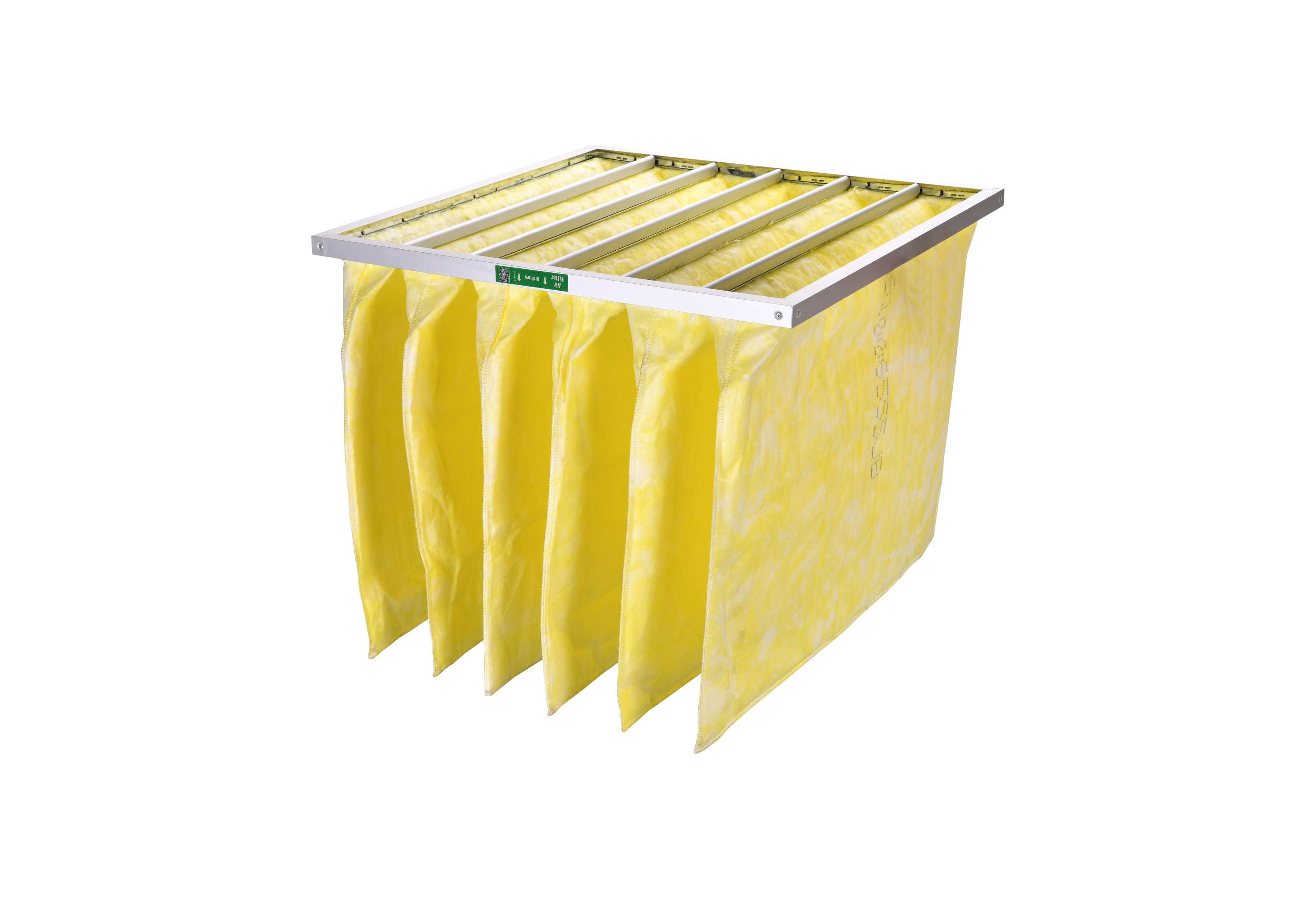

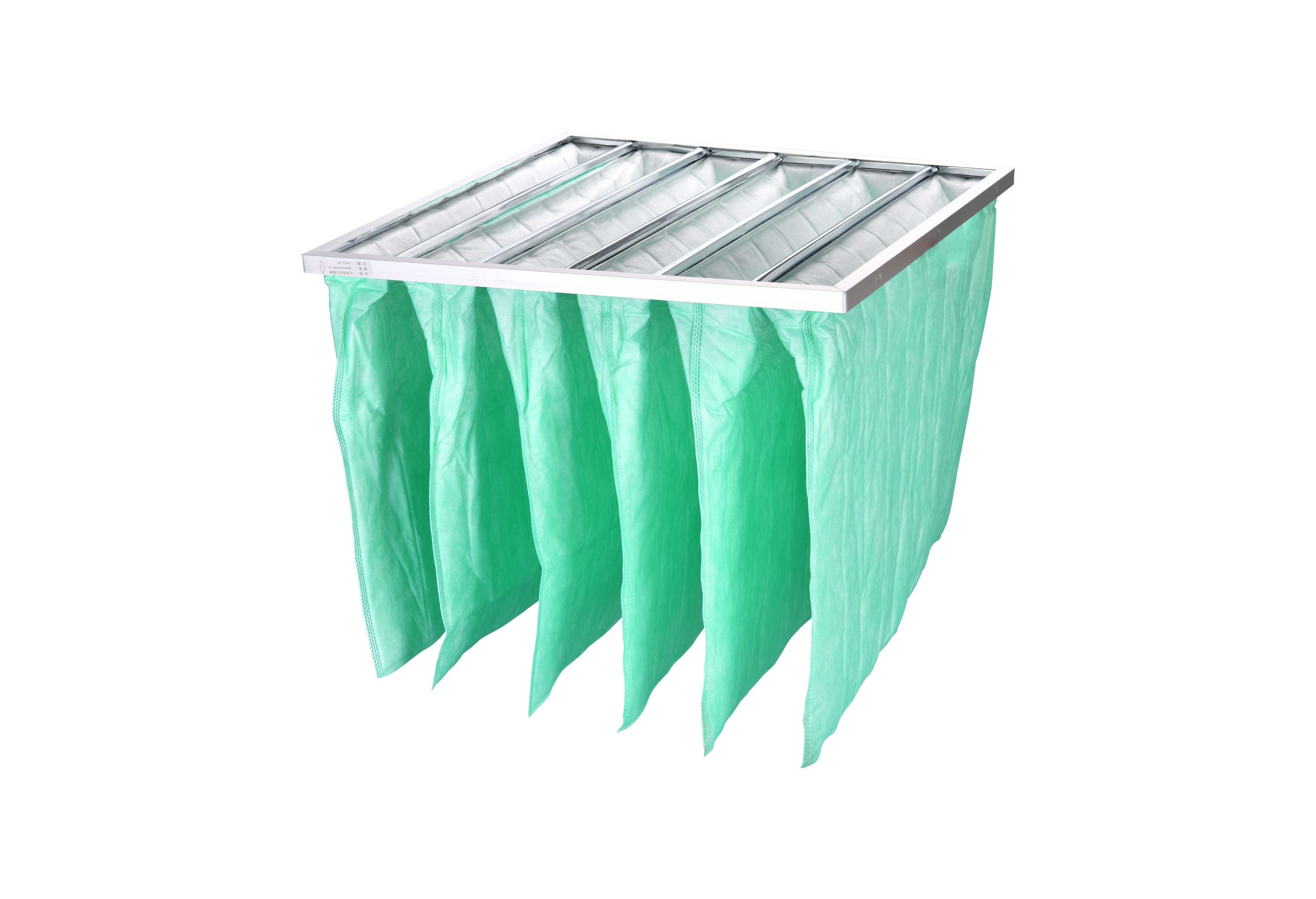

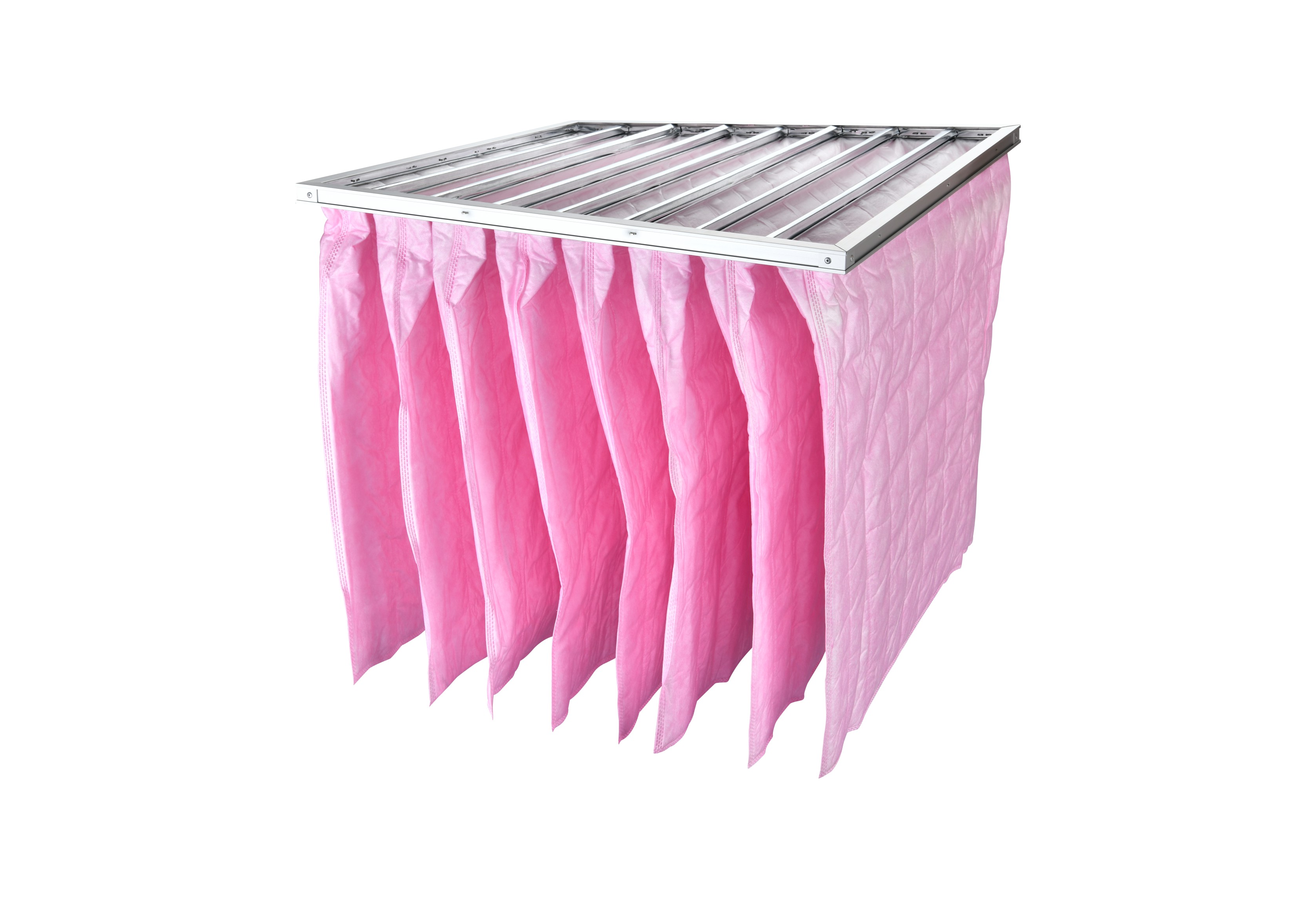

GUANLIN medium efficiency bag filter, F5 to F9 pocket filter for AHU and cleanroom supply air filtration.
Medium efficiency pocket bag filters from F5 to F9, providing high dust holding capacity and low pressure drop for AHU and cleanroom supply air stages.
Description

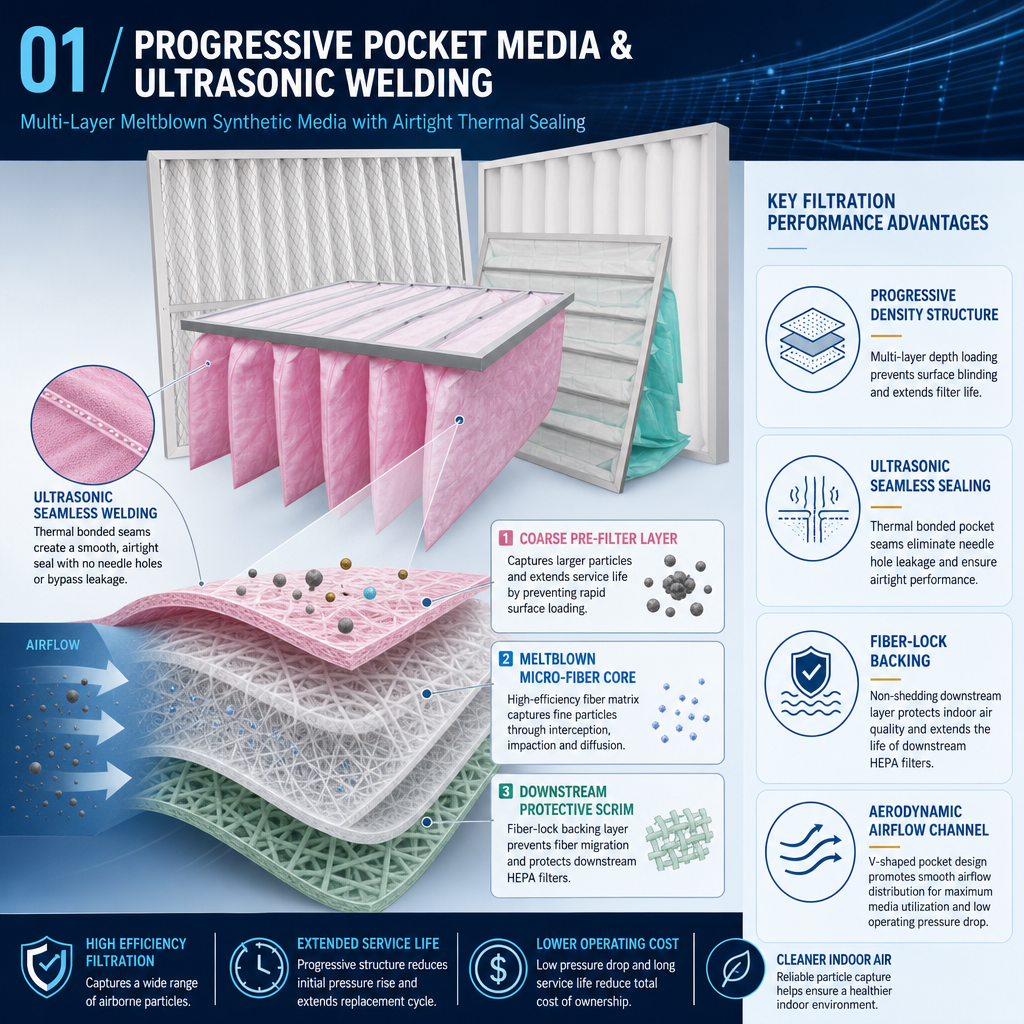

Pocket bag filters trade a little height for a lot of media area. Because the pockets hang into the airflow, a 592×592 face can carry several square metres of media, which means high dust holding capacity and a pressure drop that stays low far longer than a flat panel of the same face size. That is why the medium efficiency stage in most AHUs is a bag filter rather than a panel.
Why Choose GUANLIN Medium Efficiency Bag Filters
- Large media area per face size — multiple pockets give high dust holding capacity.
- F5 to F9 coverage — one product family covers the whole medium efficiency band.
- Low and stable pressure drop — keeps fan energy consumption down across the service life.

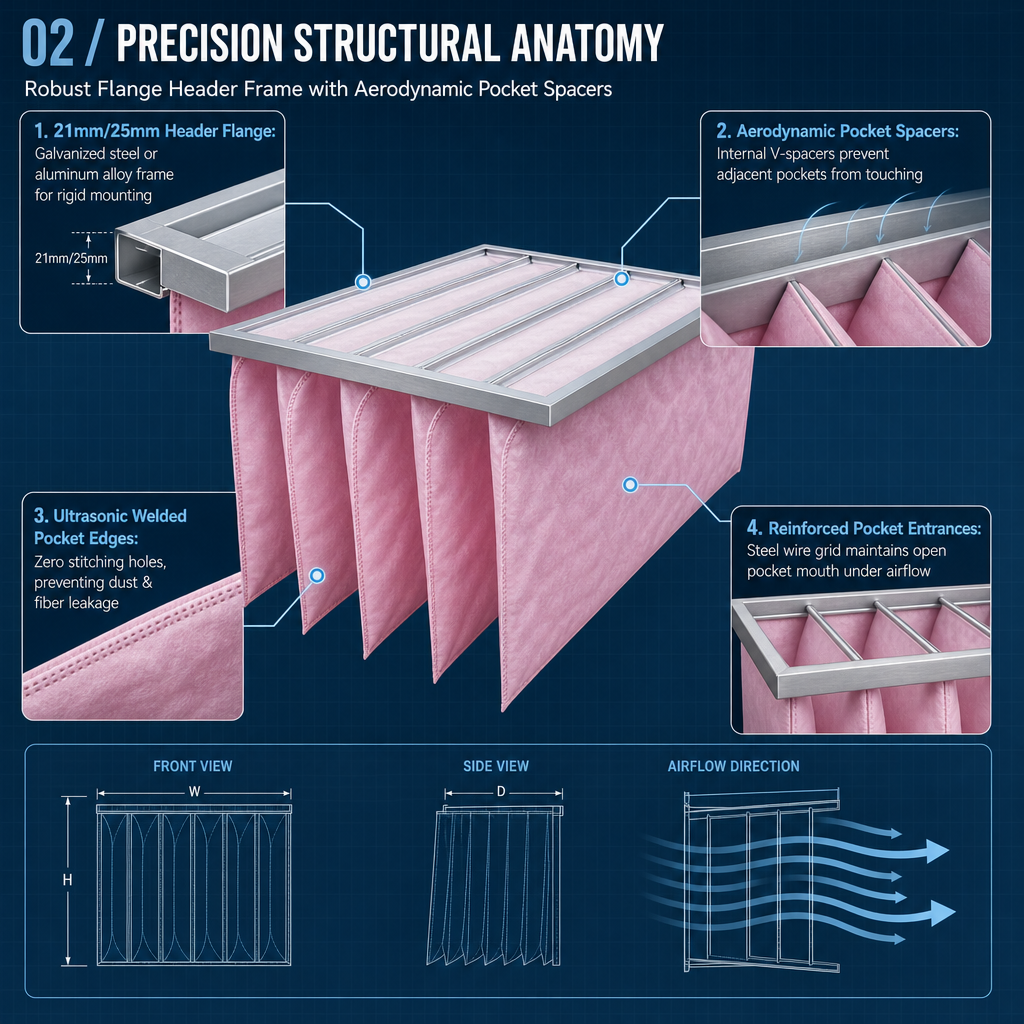

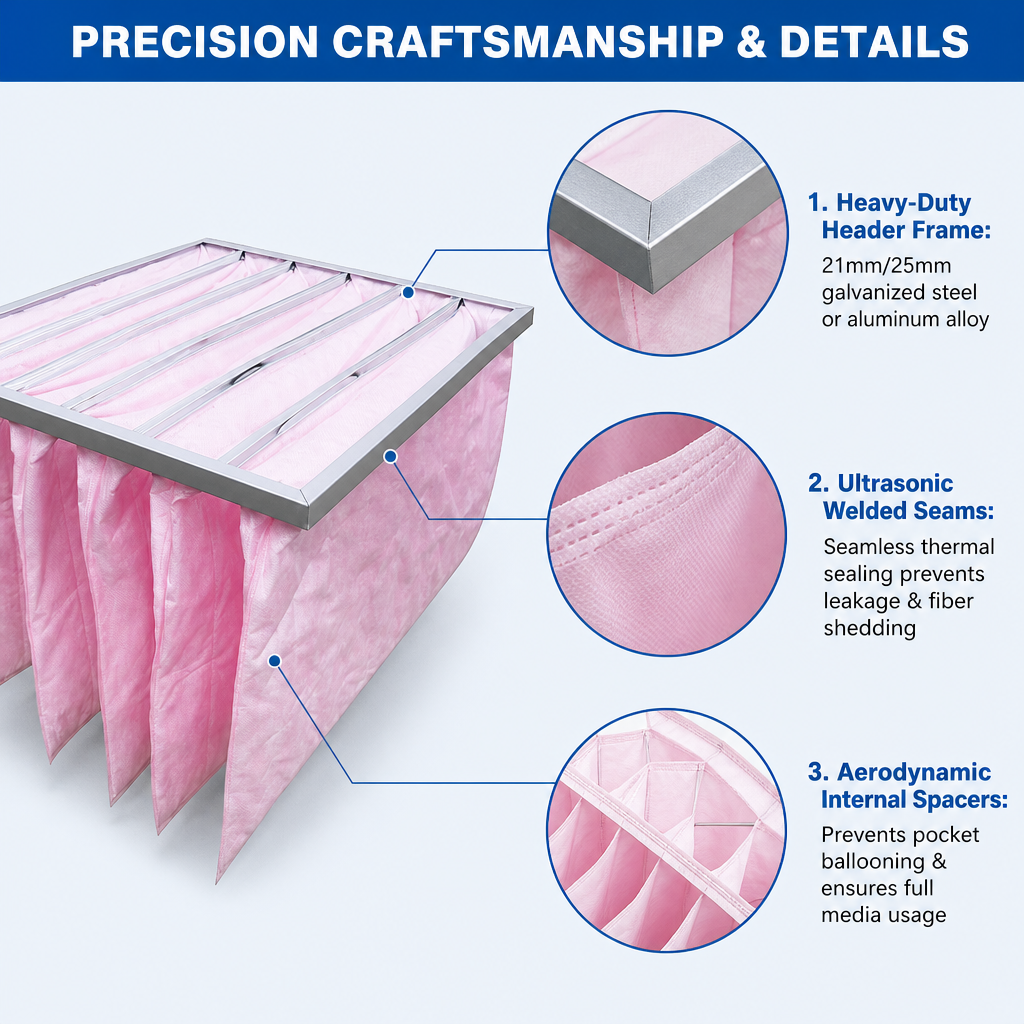

- Stitch-bonded pockets — pockets hold shape and do not collapse under airflow.
- Galvanised or plastic frame — matched to the AHU construction.
- Custom pocket counts and depths — sized to the available plenum space.
Application Scenarios
AHU medium stage
Sits behind the primary filter and ahead of the high efficiency stage, carrying the bulk of the fine dust load.
Cleanroom supply air
F7 to F9 bag filters protect terminal HEPA units and stabilise room cleanliness class.
Hospitals and laboratories
Medium efficiency stages support infection control and equipment protection.
Pharmaceutical clean areas
Staged filtration with predictable efficiency supports validation.
Food and beverage plants
Hygienic supply air for production and packaging areas.
Commercial and public buildings
High dust holding capacity reduces change frequency in large air handling systems.
Our Factory
GUANLIN has manufactured filtration products in Dongguan since 2003, operating a 6,000 m² plant with automated filter bag sewing lines, automated singeing equipment, cage welding systems and pleated filter production lines. Products are exported to Singapore, Vietnam, Malaysia and other markets, with ISO 9001 and ISO 14001 certified quality management.
Performance Notes
F5 is a light medium stage, F7 is the common cleanroom pre-filter, and F9 approaches high efficiency. Because media area is large, bag filters typically reach their final pressure drop two to three times more slowly than a flat panel of the same face size.
Product Specifications
| Item | Specification |
| Efficiency | F5 / F6 / F7 / F8 / F9 |
| Type | Pocket bag filter |
| Media | Synthetic fibre, stitch-bonded pockets |
| Pocket Count | 3 / 5 / 6 / 8 pockets |
| MOQ | 20 pcs |
FAQ
Q1. Why a bag filter instead of a panel?
Far more media area in the same face size, so higher dust holding capacity and lower pressure drop.
Q2. Which class should I choose?
F7 is the common cleanroom pre-filter; F9 approaches high efficiency.
Q3. Can you match my frame size?
Yes, including pocket count and depth.
Q4. MOQ and lead time?
20 pcs, 10–20 days.
Key Specifications
- Efficiency: F5 / F6 / F7 / F8 / F9
- Type: pocket bag filter
- Sizes: standard and custom
- MOQ: 20 pcs
