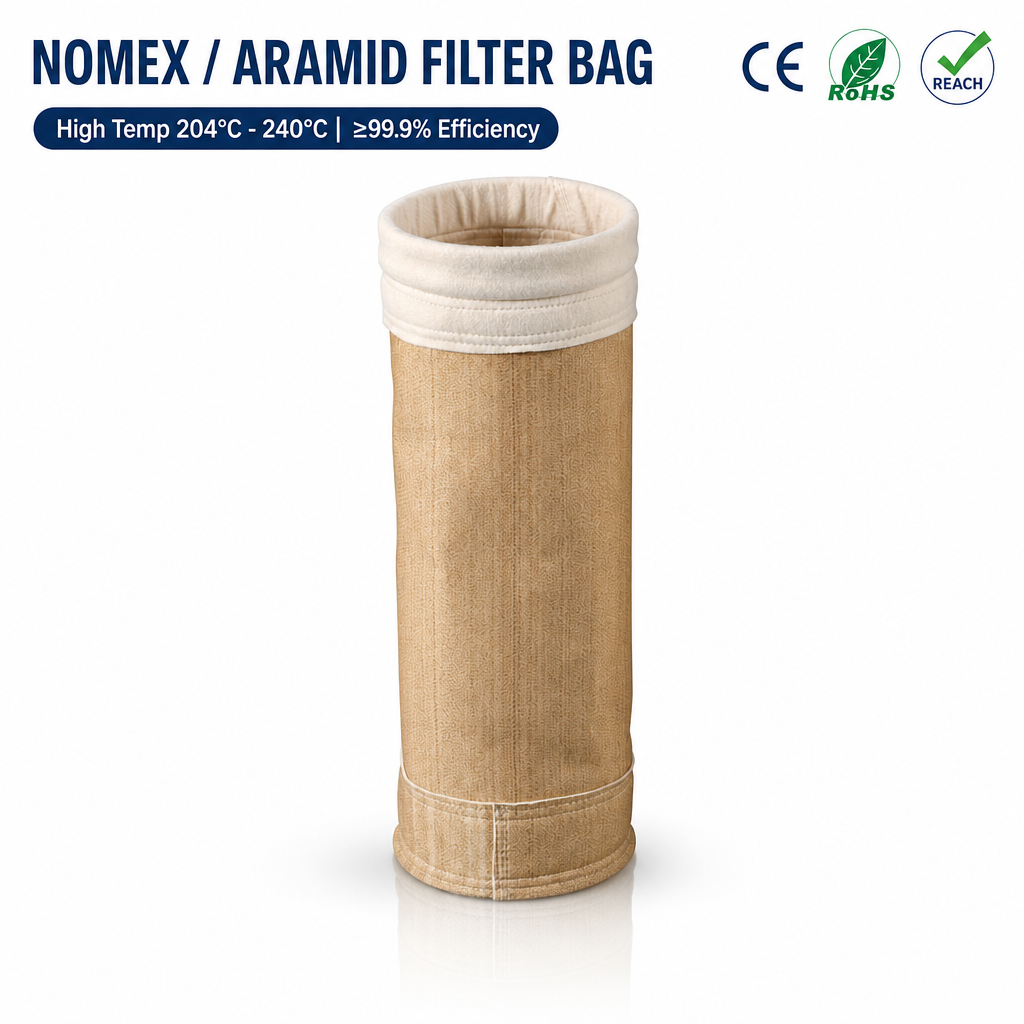

GUANLIN aramid high temperature filter bag, Nomex needle felt bag for asphalt mixing and hot gas dedusting.
Aramid needle felt filter bags for asphalt plants, hot mix facilities and other continuous high temperature dust collection duties up to 204°C.
Description

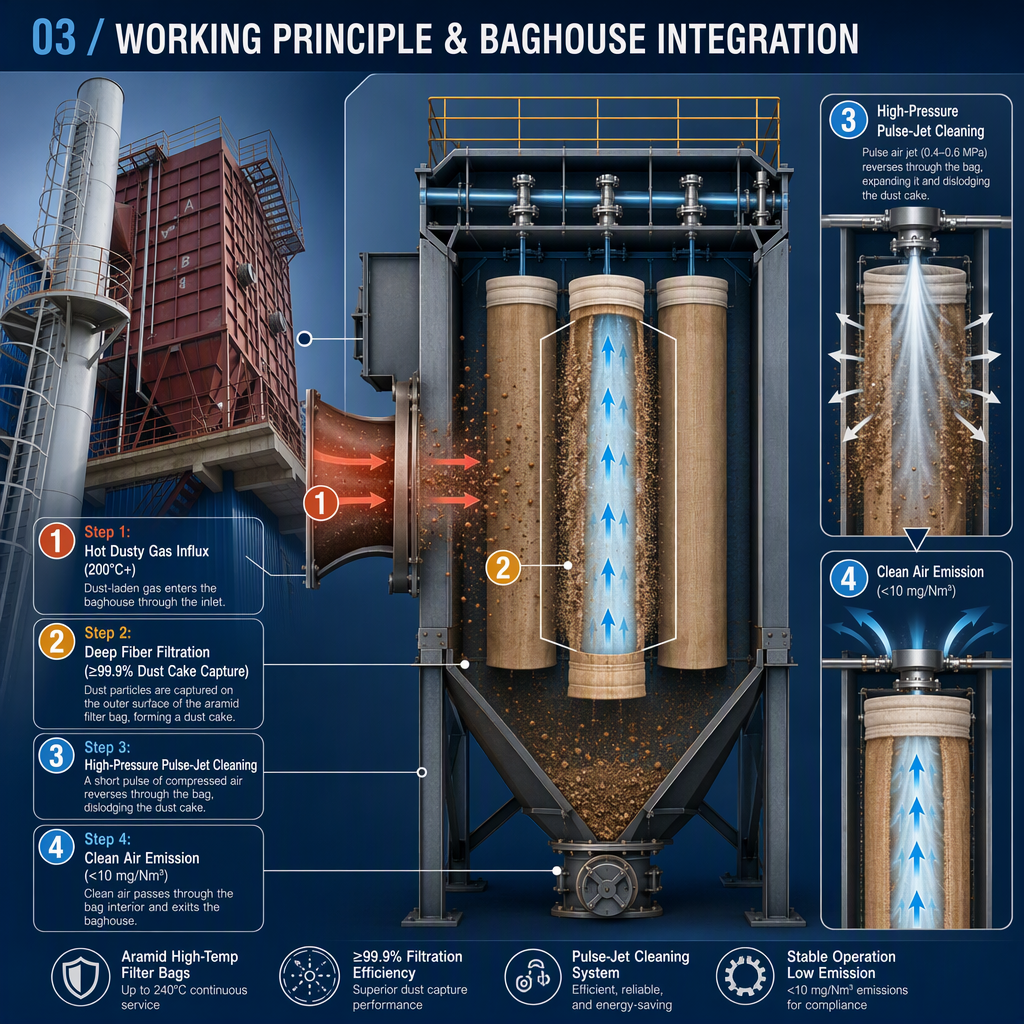

Asphalt plants run their baghouses hot and they run them hard. The bag sees 160–190°C gas carrying fine aggregate dust and oily condensate, cycle after cycle, with cleaning pulses that flex the media millions of times over its life. Aramid needle felt is the established answer because it holds strength at temperature and resists the abrasion that comes with the dust load.
Why Choose GUANLIN Aramid High Temperature Filter Bags
- 204°C continuous — matched to asphalt plant gas temperatures.
- High tensile strength — resists pulse flex fatigue.
- Singed and calendered — clean release, stable pressure drop.
- PTFE coating option — improved acid and condensate resistance.
- Precise dimensions — correct fit on the cage, no bypass.
- Proven in asphalt — the standard media for the duty.
Application Scenarios
Asphalt mixing plants
Dryer and mixer baghouse filtration.
Hot mix asphalt transfer
Load-out and silo vent dedusting.
Foundry cupola off-gas
High temperature dust collection.
Carbon black processing
Hot process gas filtration.
Ceramic kiln exhaust
Continuous high temperature duty.
Boiler flue gas
Moderate temperature power applications.
Our Factory
GUANLIN has manufactured filtration products in Dongguan since 2003, operating a 6,000 m² plant with automated filter bag sewing lines, automated singeing equipment, cage welding systems and pleated filter production lines. Products are exported to Singapore, Vietnam, Malaysia and other markets, with ISO 9001 and ISO 14001 certified quality management.

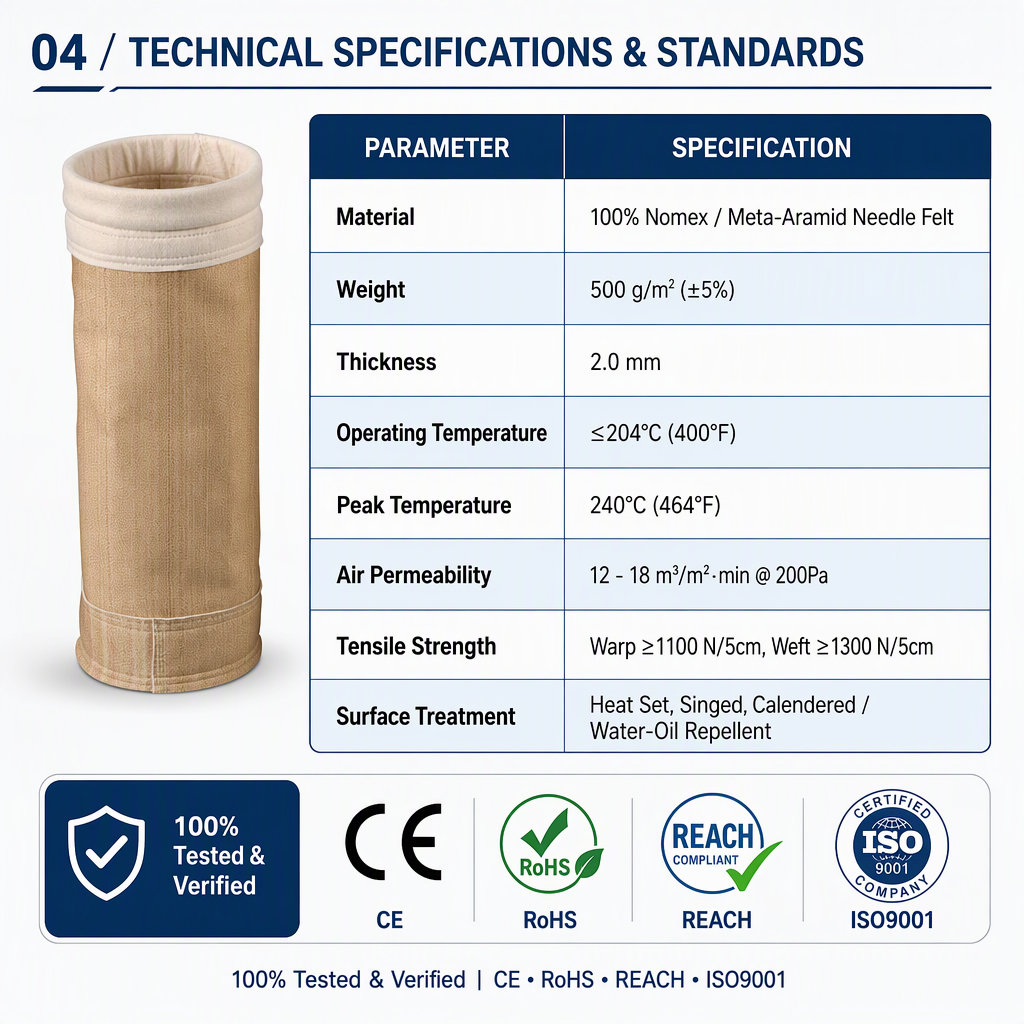

Product Specifications
| Item | Specification |
| Media | Aramid (Nomex) needle felt |
| Weight | 500–550 g/m² |
| Max Temperature | 204°C continuous |
| Finish | Singed, calendered, PTFE optional |
| MOQ | 50 pcs |
FAQ
Q1. What is the peak temperature limit?
204°C continuous; short excursions higher, but avoid sustained overload.
Q2. Is PTFE coating needed?
Recommended where oily condensate or acid is present.

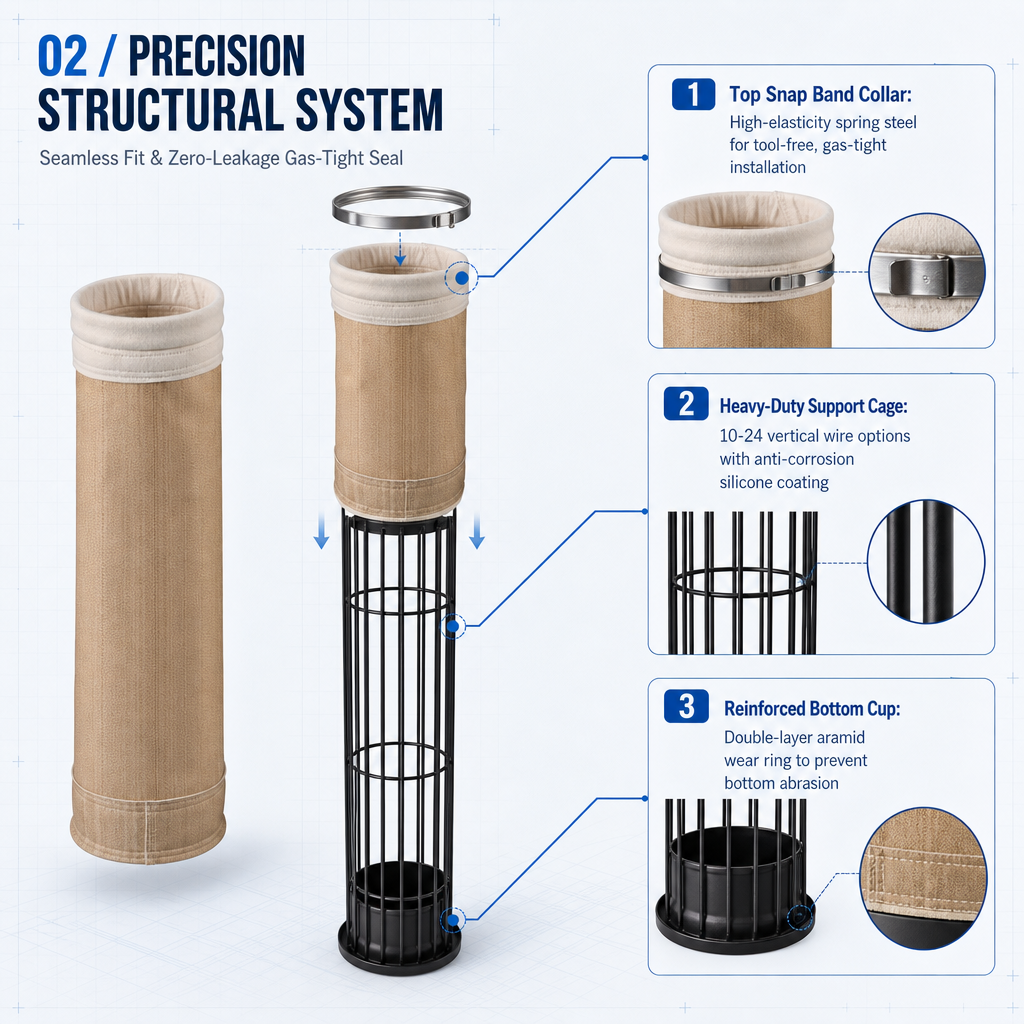

Q3. What cage suits these bags?
Standard galvanised or stainless cage, matched to bag dimensions.
Q4. MOQ and lead time?
50 pcs, 10–20 days.
Key Specifications
- Media: aramid (Nomex) needle felt
- Max temperature: 204°C continuous
- Finish: singed, calendered, PTFE coated optional
- MOQ: 50 pcs
