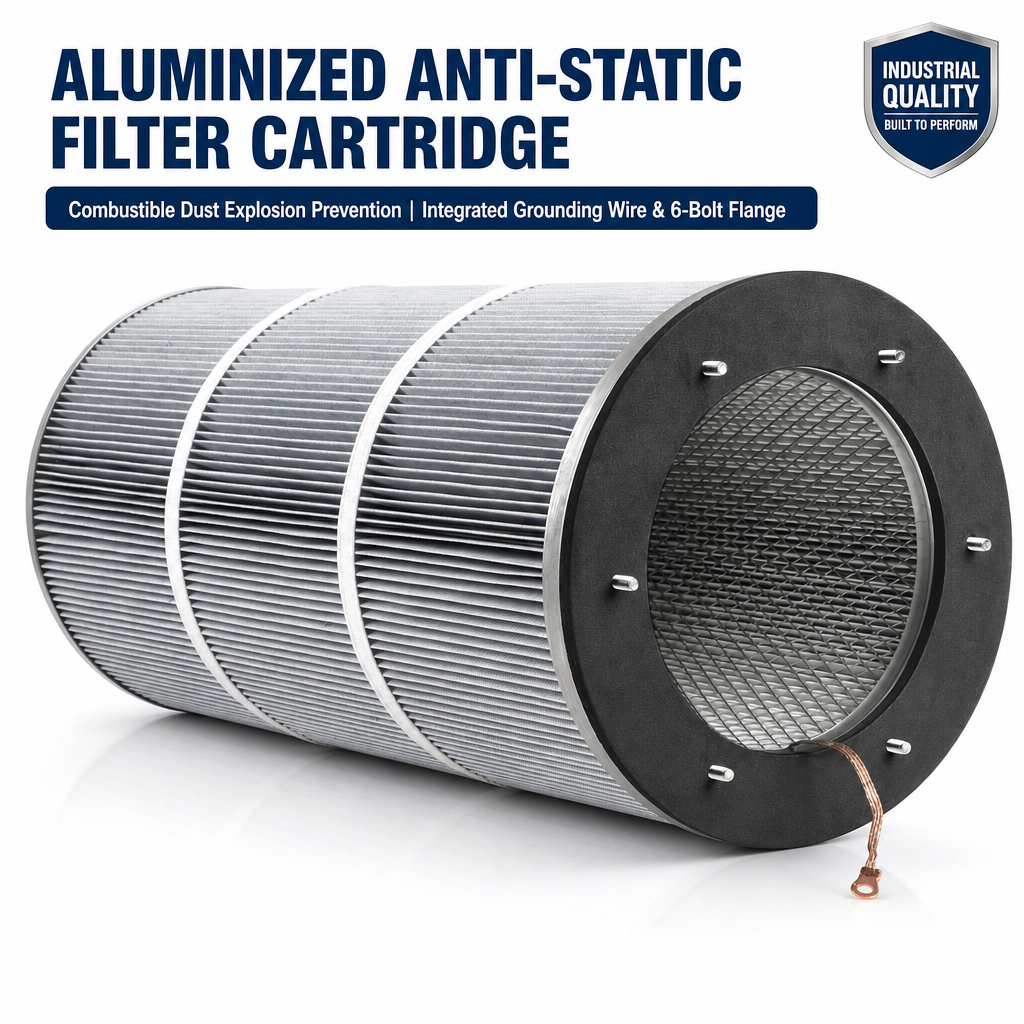

GUANLIN powder coating recovery cartridge, conductive anti-static element for electrostatic spray booths.
Conductive aluminised cartridges for powder coating recovery, dissipating static charge while capturing overspray for reuse at high efficiency.
Description

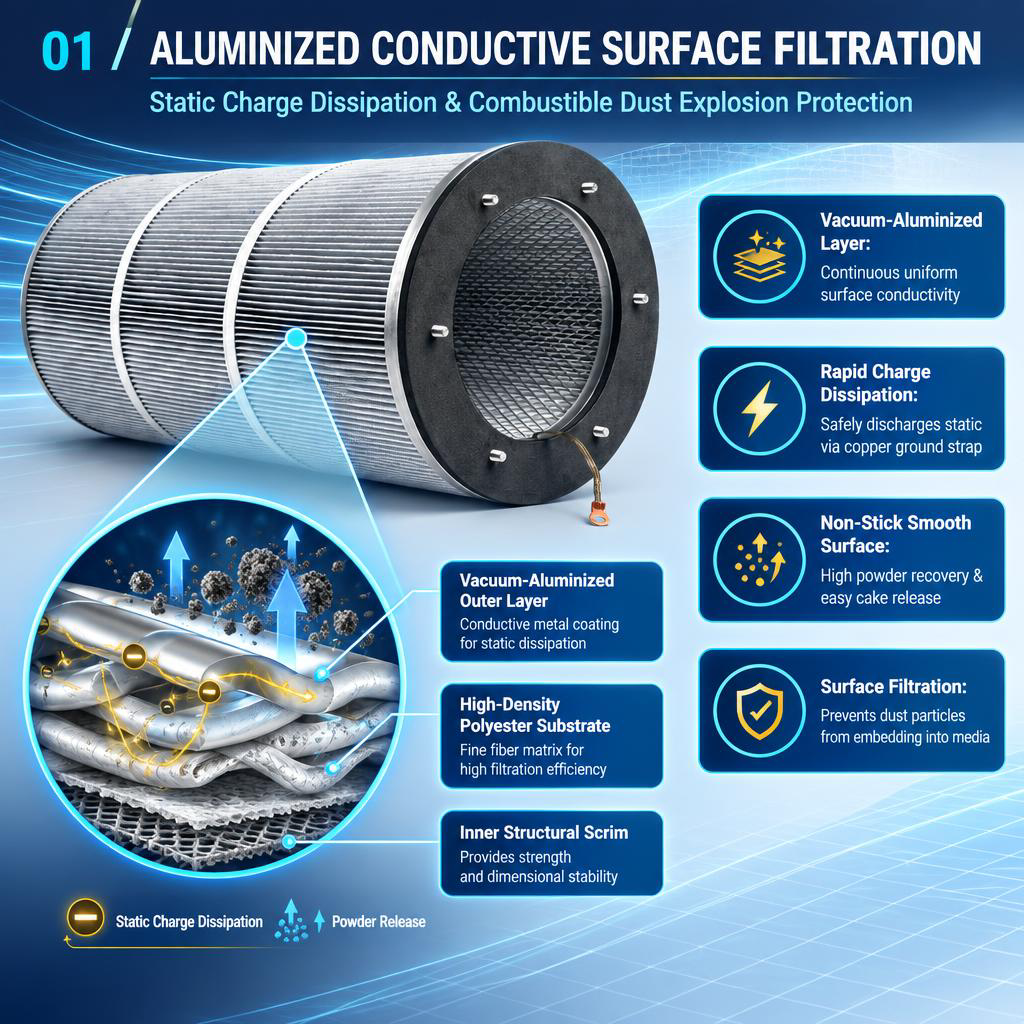

Powder coating is the one application where the filter cartridge is also a production asset. The overspray it captures is reclaimed and reused, so efficiency and clean release translate directly into material savings. Static is the complicating factor: charged powder particles build up on non-conductive media and cause uneven loading, so a conductive surface is essential for even recovery.
Why Choose GUANLIN Powder Coating Recovery Cartridges
- Conductive media — dissipates static so powder loads evenly across the pleats.
- Product recovery — captured overspray can be reclaimed and reused.
- Clean release — pulse cleaning returns powder to the hopper efficiently.
- High efficiency — minimises powder loss to atmosphere.
- Grounded housing compatibility — works with standard recovery systems.

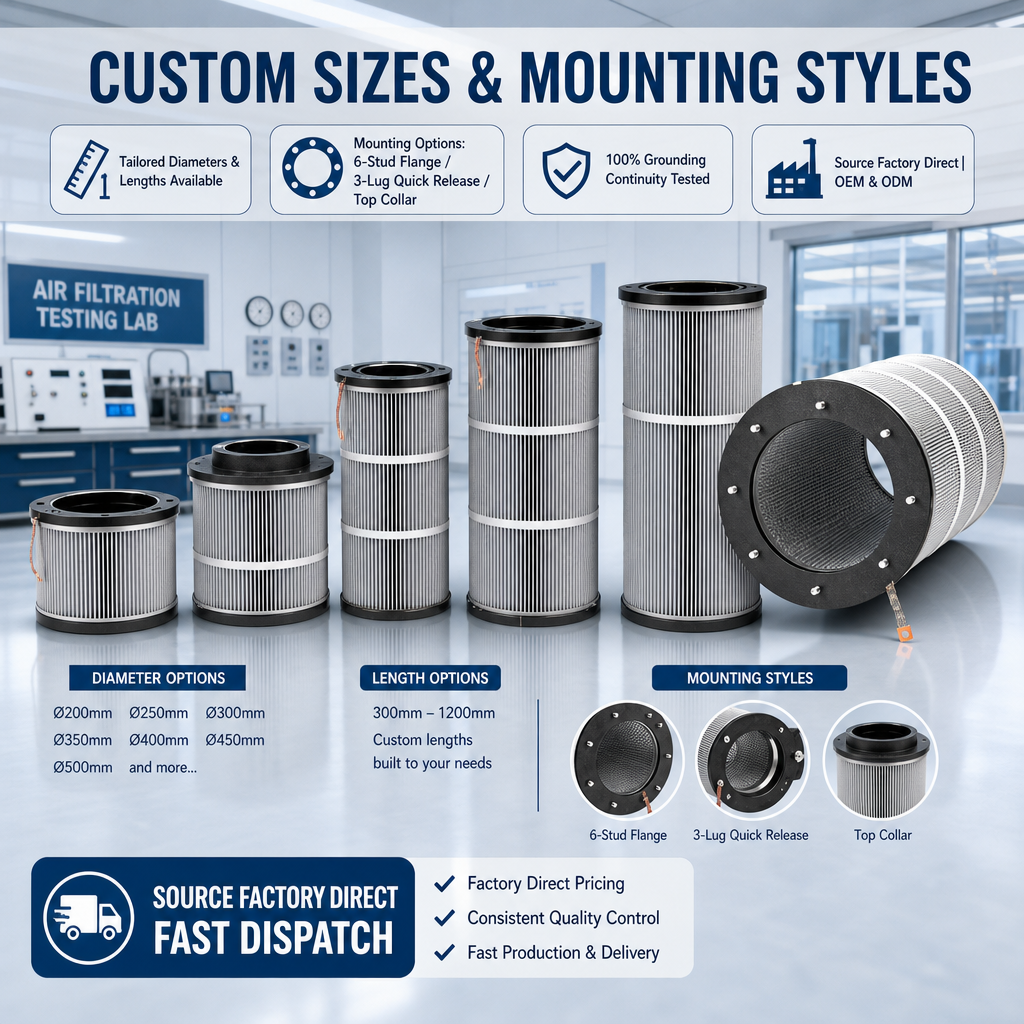

- Custom sizing — standard 325 mm and non-standard lengths.

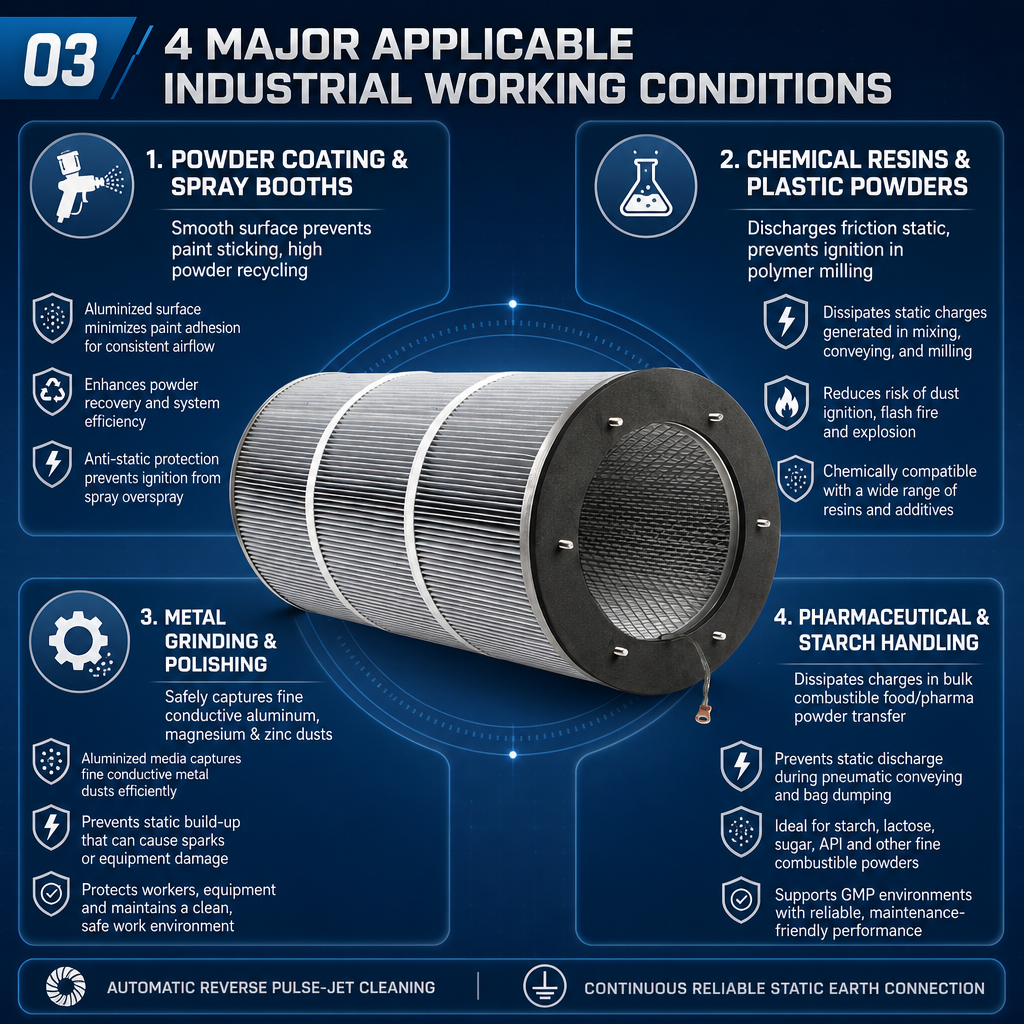

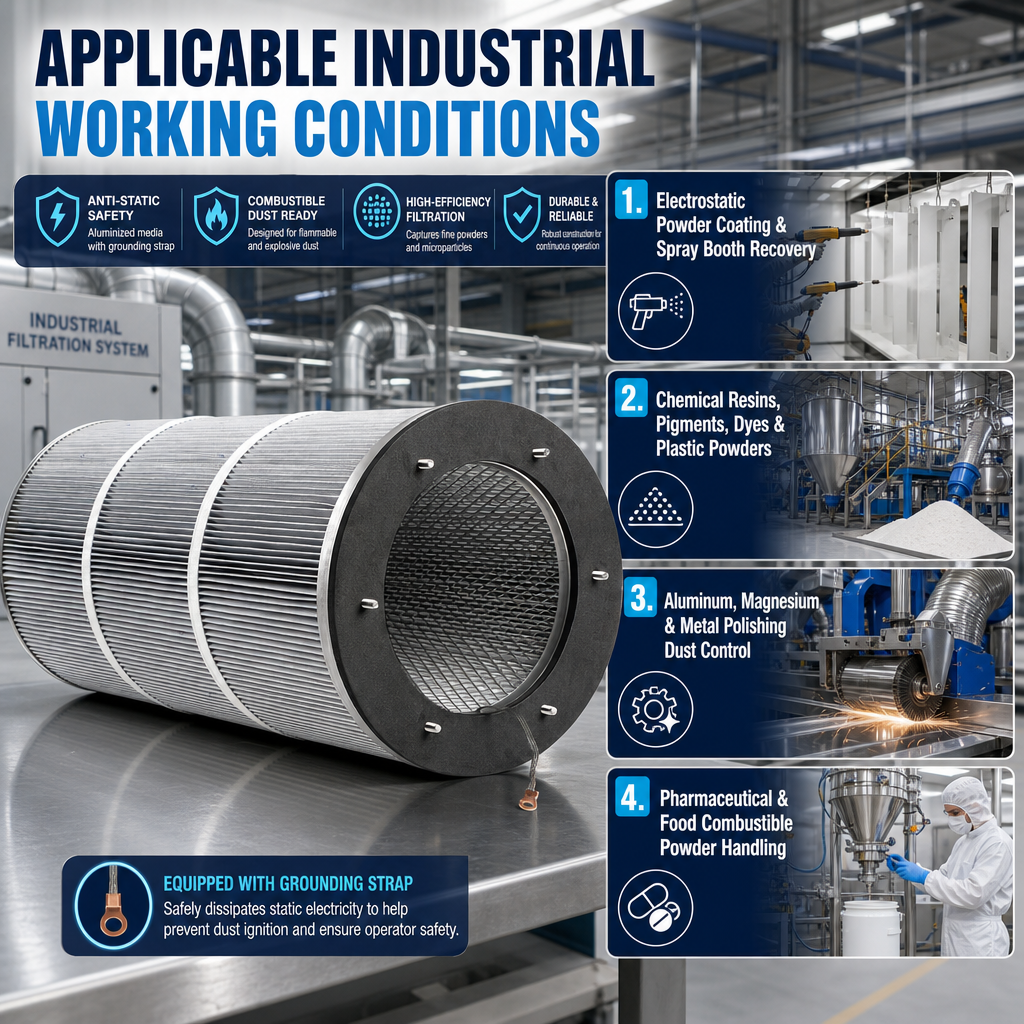

Application Scenarios
Electrostatic powder coating booths
Overspray recovery with charged particles.
Powder reclaim systems
Sieve and recovery circuits requiring even loading.
Batch coating of metal parts
Colour changes need clean, complete recovery.
Automotive and appliance finishing
High volume coating with tight colour control.
Architectural aluminium coating
Large parts with high powder consumption.
Job shops with frequent colour changes
Complete release matters to avoid cross-contamination.
Our Factory
GUANLIN has manufactured filtration products in Dongguan since 2003, operating a 6,000 m² plant with automated filter bag sewing lines, automated singeing equipment, cage welding systems and pleated filter production lines. Products are exported to Singapore, Vietnam, Malaysia and other markets, with ISO 9001 and ISO 14001 certified quality management.

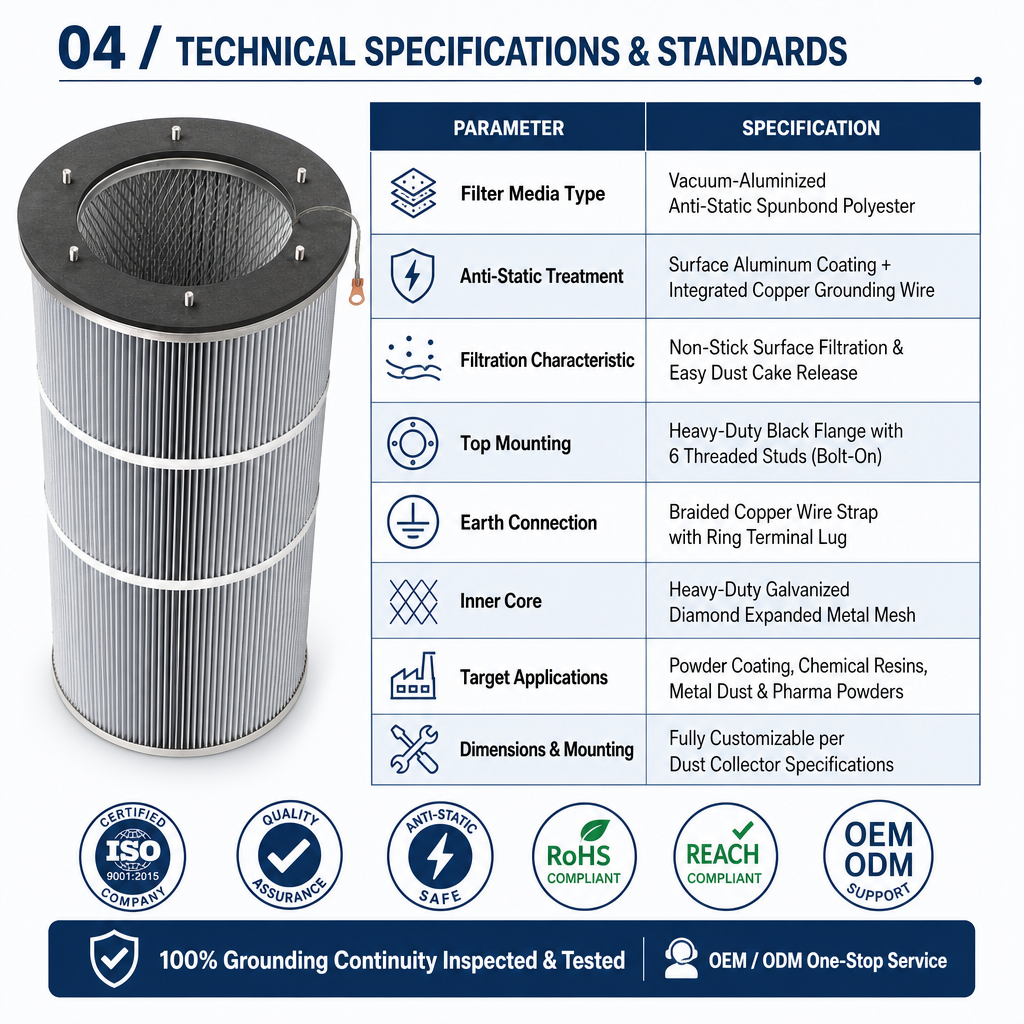

Product Specifications
| Item | Specification |
| Construction | Aluminised conductive layer on pleated media |
| Surface Resistance | Conductive (anti-static grade) |
| Filtration Rating | 1–100 μm |
| Outer Diameter | Ø325 mm standard and custom |
| MOQ | 10 pcs |
FAQ
Q1. Why conductive media for powder coating?
Charged powder builds up on non-conductive media, causing uneven loading and poor recovery.
Q2. Can recovered powder be reused?
Yes, with proper sieving and colour segregation.

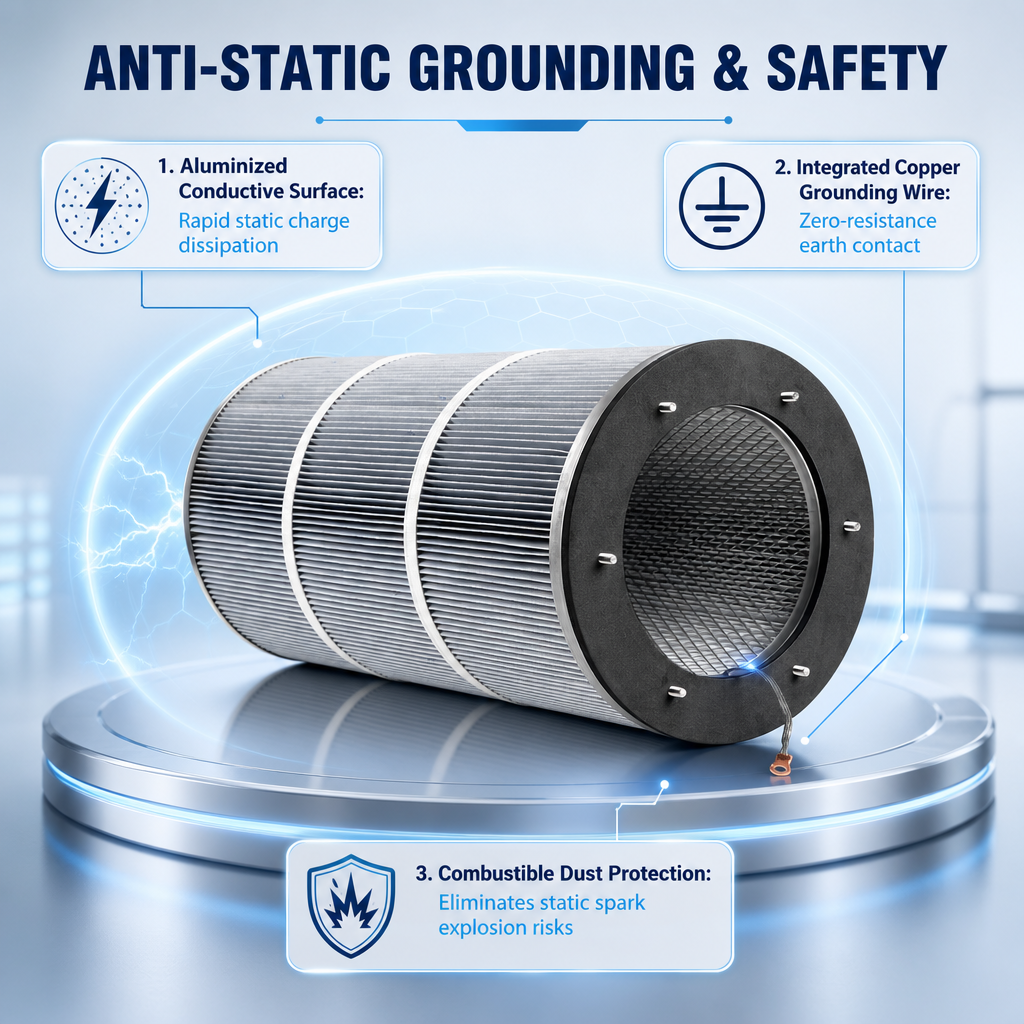

Q3. Does grounding matter?
Yes, the housing must be bonded and grounded.
Q4. MOQ and lead time?
10 pcs, 7–15 days.
Key Specifications
- Construction: aluminised conductive pleated media
- Function: overspray recovery + static dissipation
- Rating: 1–100 μm
- MOQ: 10 pcs
