GUANLIN cleanroom terminal HEPA filter set, H13 H14 panel with pre-filter for ISO 5 to ISO 8 cleanrooms.

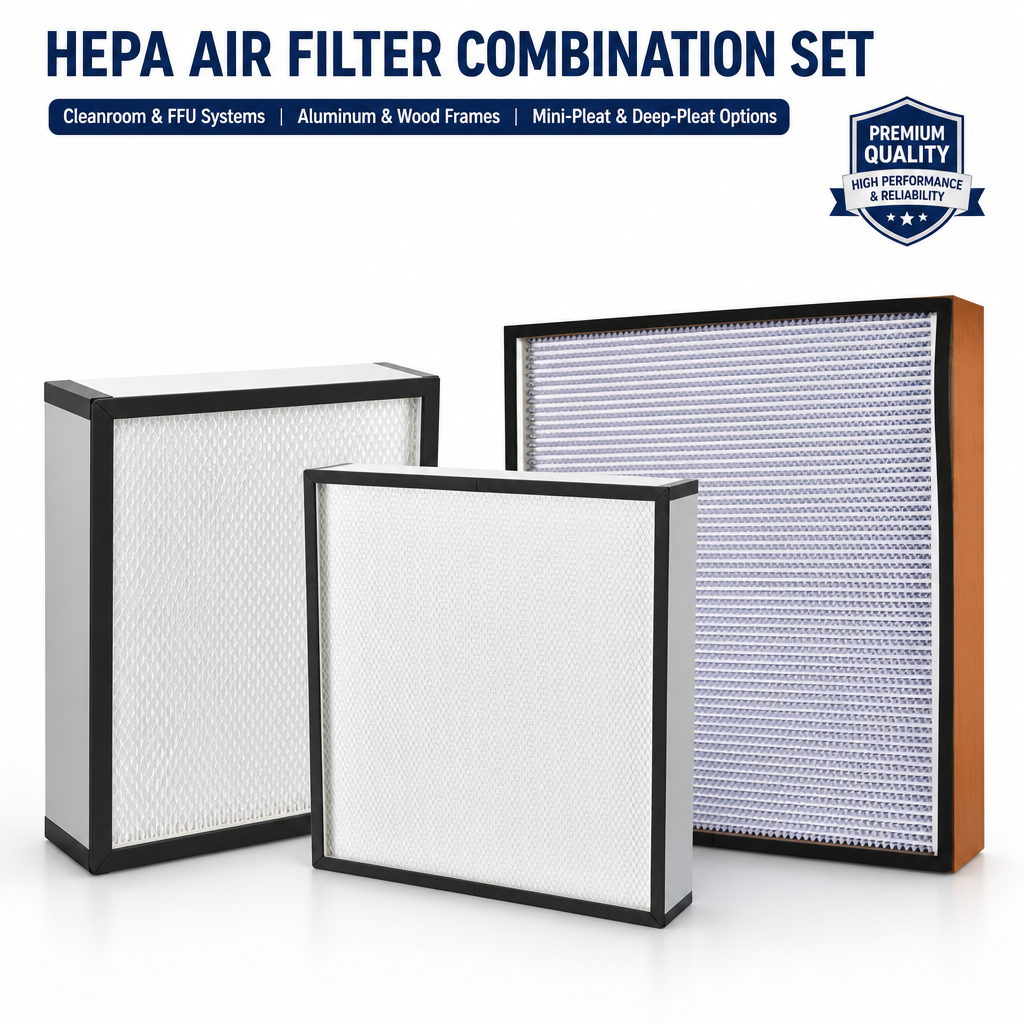

Terminal HEPA filter sets pairing an H13/H14 panel with a matched pre-filter, supplied for cleanroom ceiling grids and terminal boxes in ISO 5–8 environments.
Description

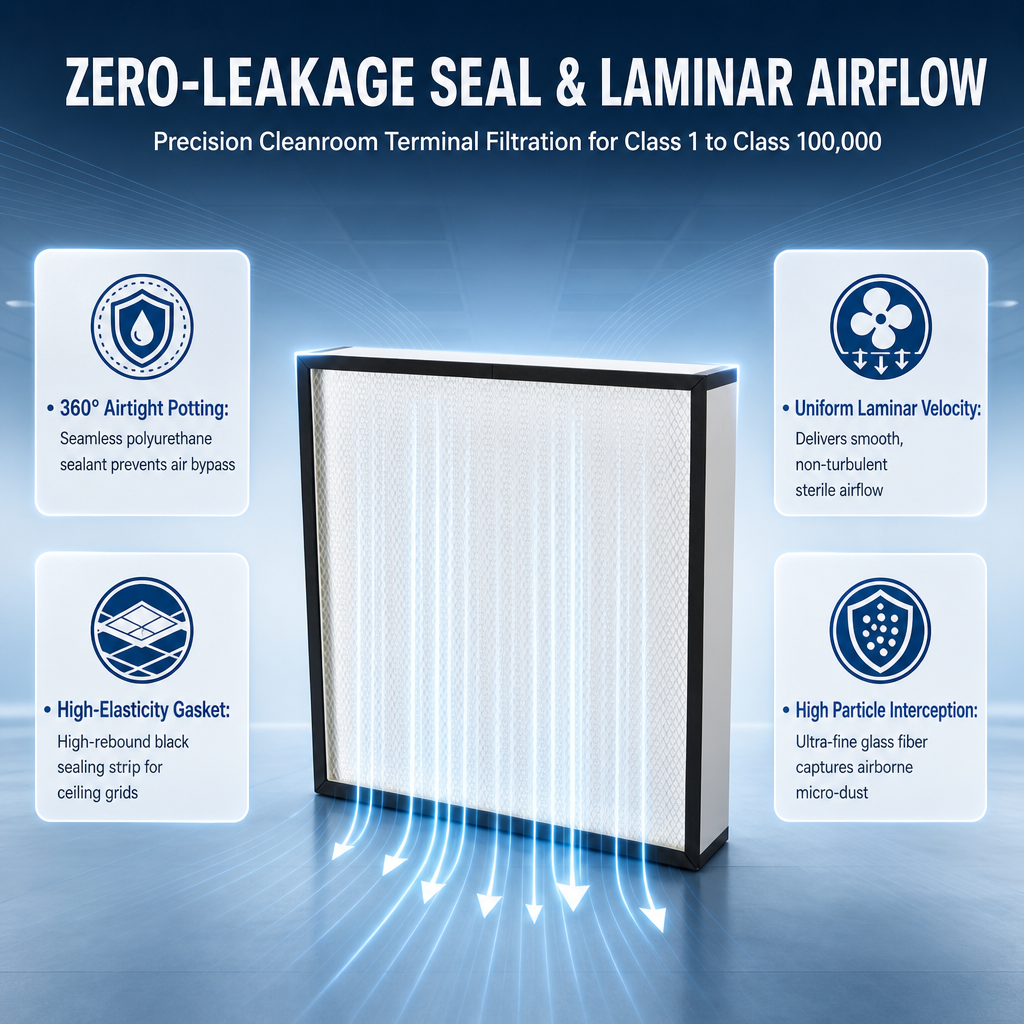

A cleanroom terminal is only as good as its seal. A HEPA panel that sits slightly proud of the ceiling grid, or a gasket that compresses unevenly, gives a leak path that no amount of media efficiency can compensate for. GUANLIN supplies the terminal as a set — HEPA panel, matched pre-filter and the gaskets that make both seat correctly — so the validated performance is what actually gets installed.
Why Choose GUANLIN Cleanroom Terminal HEPA Sets
- H13 / H14 efficiency — compliant with ISO 5–8 cleanroom classification.
- Matched pre-filter — extends terminal HEPA life and keeps change intervals predictable.
- Uniform gasket compression — no leak path at the grid interface.
- Scan tested — each panel leak tested before shipment.
- Lightweight construction — easier installation in ceiling grids.
- Custom grid sizes — matched to your ceiling module.
Application Scenarios
Pharmaceutical cleanrooms
Grade A–D areas requiring validated HEPA terminals.
Hospital operating theatres
Critical ventilation with periodic DOP testing.
Electronics and semiconductor
ISO 5–7 production environments.
Laboratories and bio-safety facilities
Containment and supply air filtration.
Food and beverage clean zones
Hygienic production requiring controlled air.
Cleanroom retrofit
Replacing terminal sets while maintaining classification.
Our Factory
GUANLIN has manufactured filtration products in Dongguan since 2003, operating a 6,000 m² plant with automated filter bag sewing lines, automated singeing equipment, cage welding systems and pleated filter production lines. Products are exported to Singapore, Vietnam, Malaysia and other markets, with ISO 9001 and ISO 14001 certified quality management.

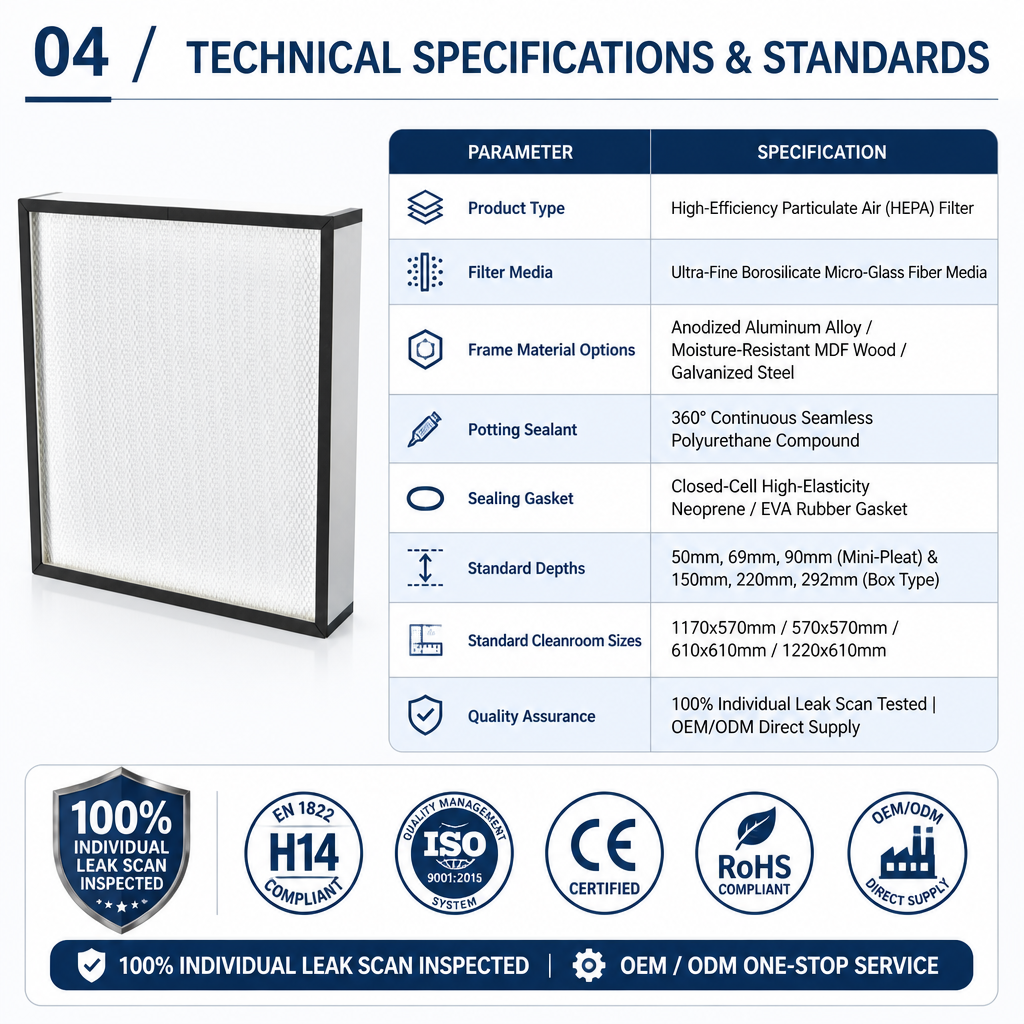

Product Specifications
| Item | Specification |
| Set Contents | HEPA panel + matched pre-filter + gaskets |
| HEPA Efficiency | H13 (99.95%) / H14 (99.995%) @ MPPS |
| Media | Glass fibre HEPA paper, mini-pleat |
| Frame | Aluminium, gasket sealed |
| MOQ | 20 sets |
FAQ
Q1. H13 or H14?
H13 for ISO 6–7, H14 for ISO 5 and higher-risk areas.
Q2. Is each panel tested?
Yes, scan tested before shipment; on-site DOP testing is still recommended.
Q3. Will it fit my ceiling grid?
Custom sizes to your module; send the grid drawing.
Q4. MOQ and lead time?
20 sets, 15–25 days.
Key Specifications
- Set: HEPA panel + matched pre-filter
- Efficiency: H13 / H14
- Application: ISO 5–8 cleanroom terminals
- MOQ: 20 sets
