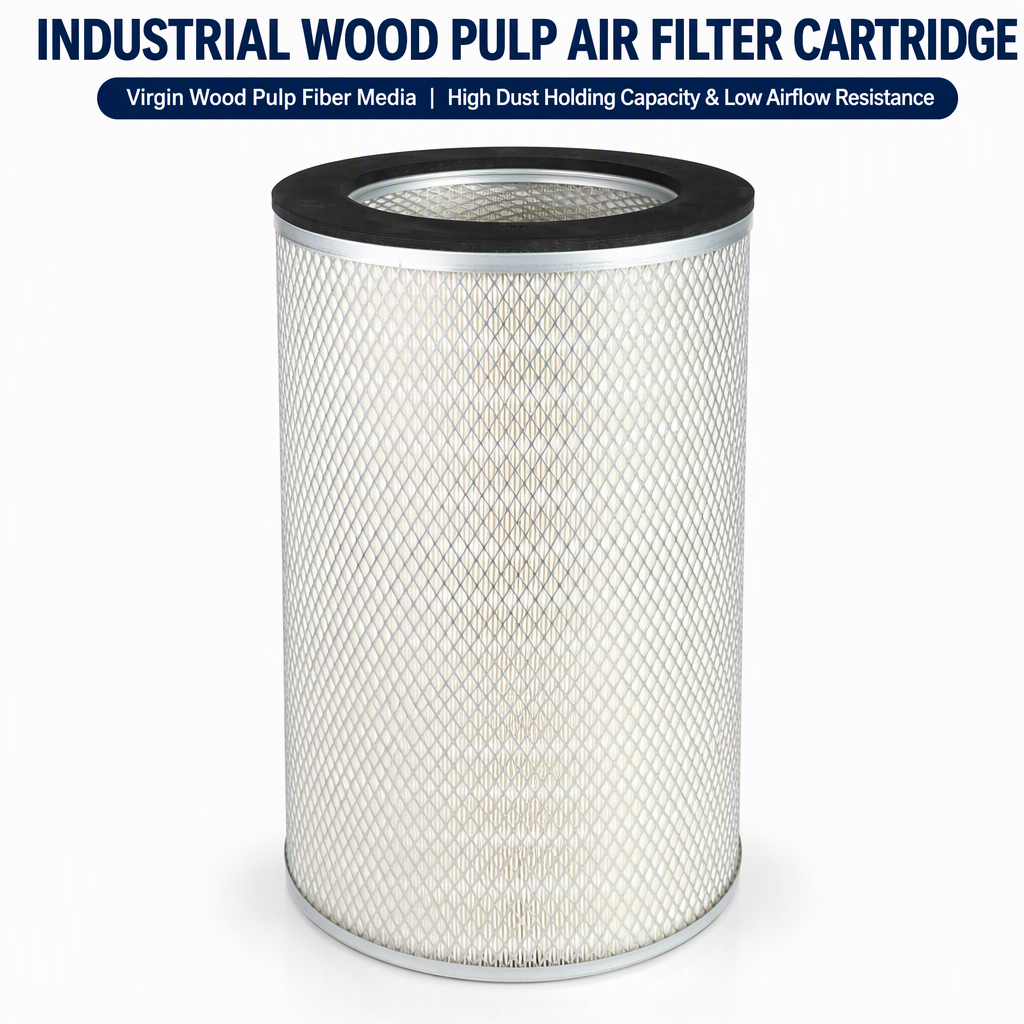

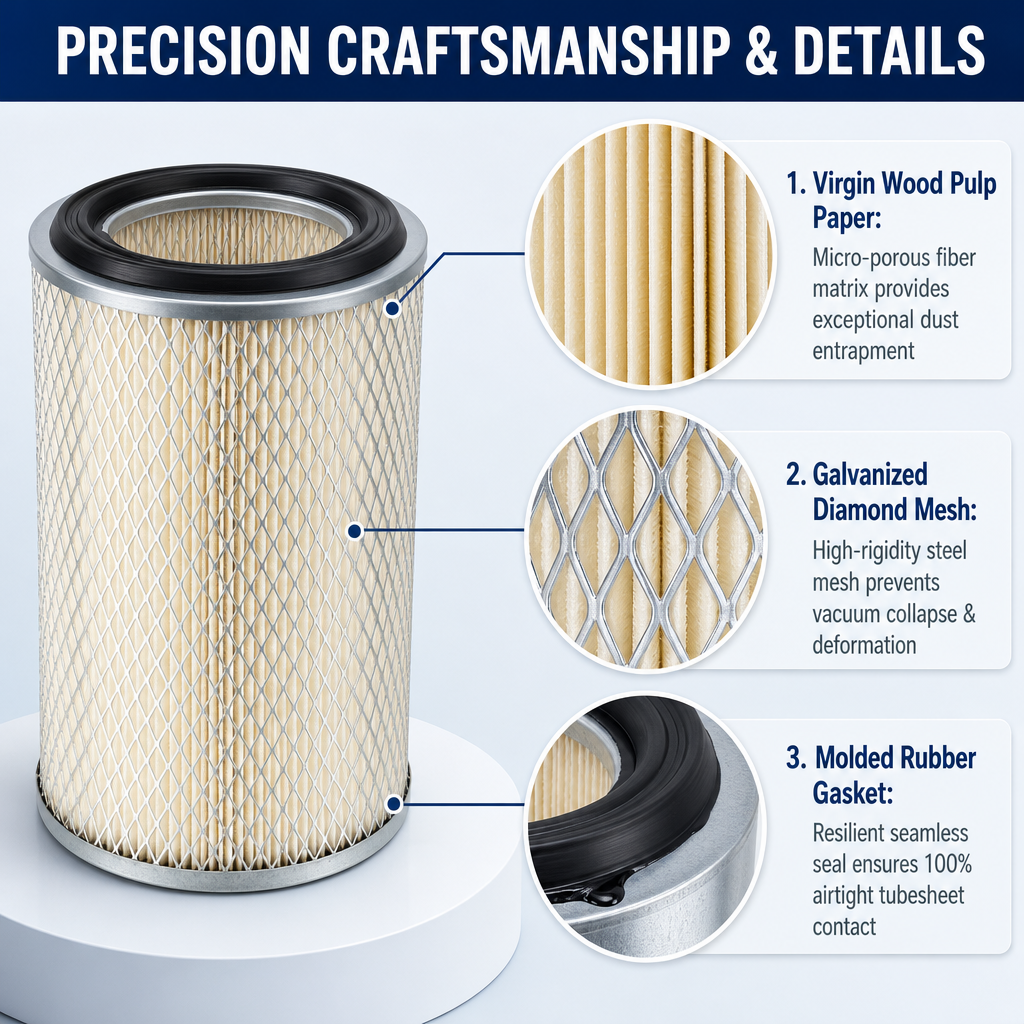

GUANLIN wood pulp paper filter cartridge, pleated cellulose dust collector element for woodworking and general workshop extraction.
Pleated cellulose cartridges delivering the lowest cost per unit of filtration area for dry, non-aggressive dust in woodworking, grain handling and general factory ventilation.
Description

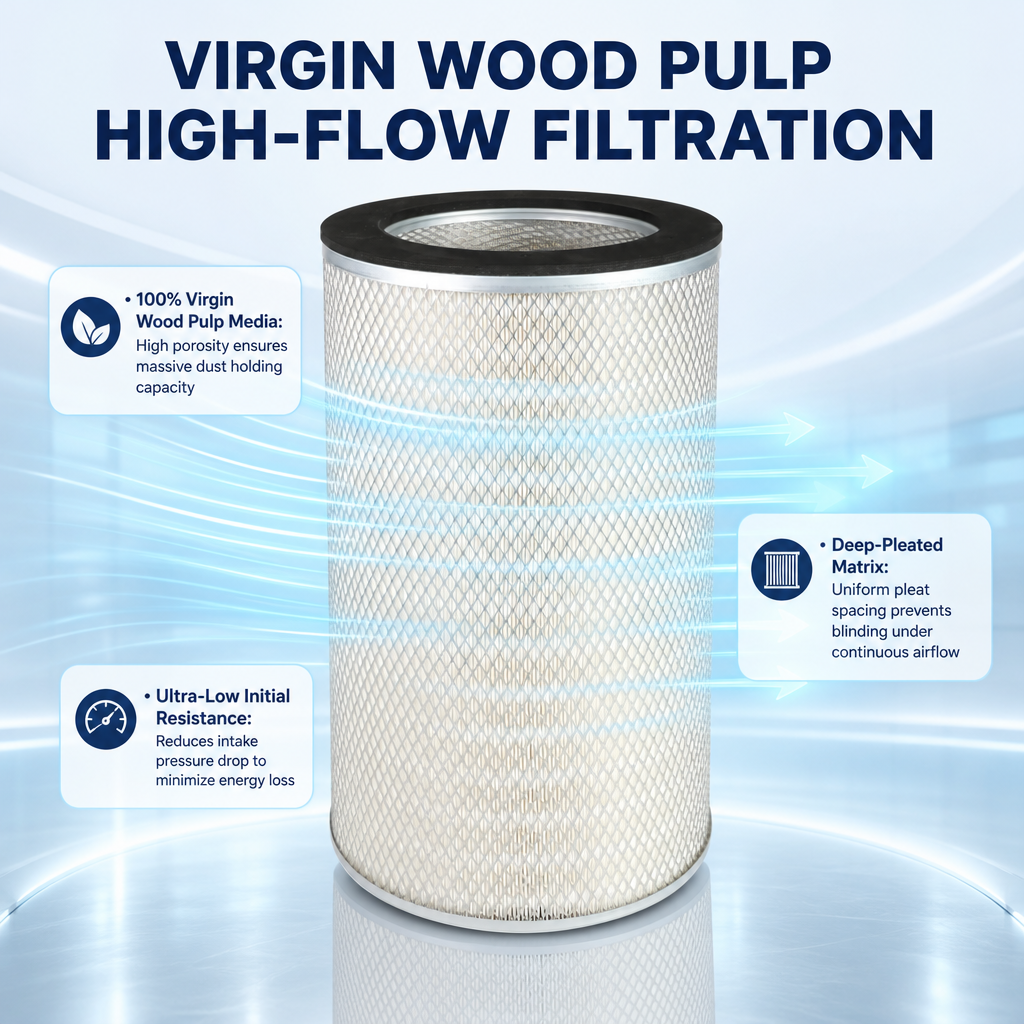

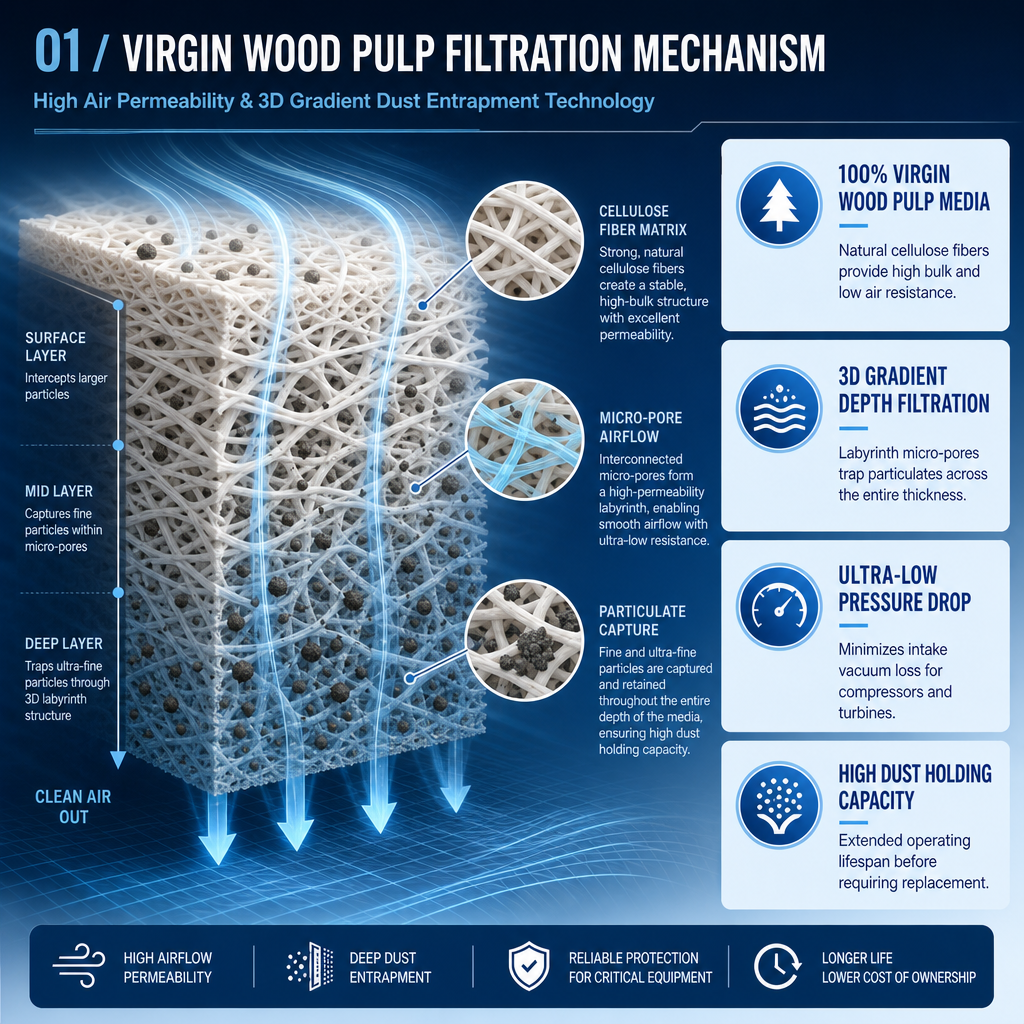

Wood pulp paper cartridges are the economical choice for dry, non-aggressive dust in general workshop extraction. The pleated cellulose media gives a large surface area at low cost, and it holds a heavy dust load before pressure drop rises — which matters in woodworking, powder handling and general factory ventilation where media cost dominates the consumable budget.
Why Choose GUANLIN Wood Pulp Paper Cartridges
- Cost-effective media — cellulose paper gives the lowest cost per unit of filtration area.
- High dust holding capacity — deep pleats retain a heavy load before resistance climbs.
- Good for dry dust — ideal for wood, grain, mineral and general factory dust.

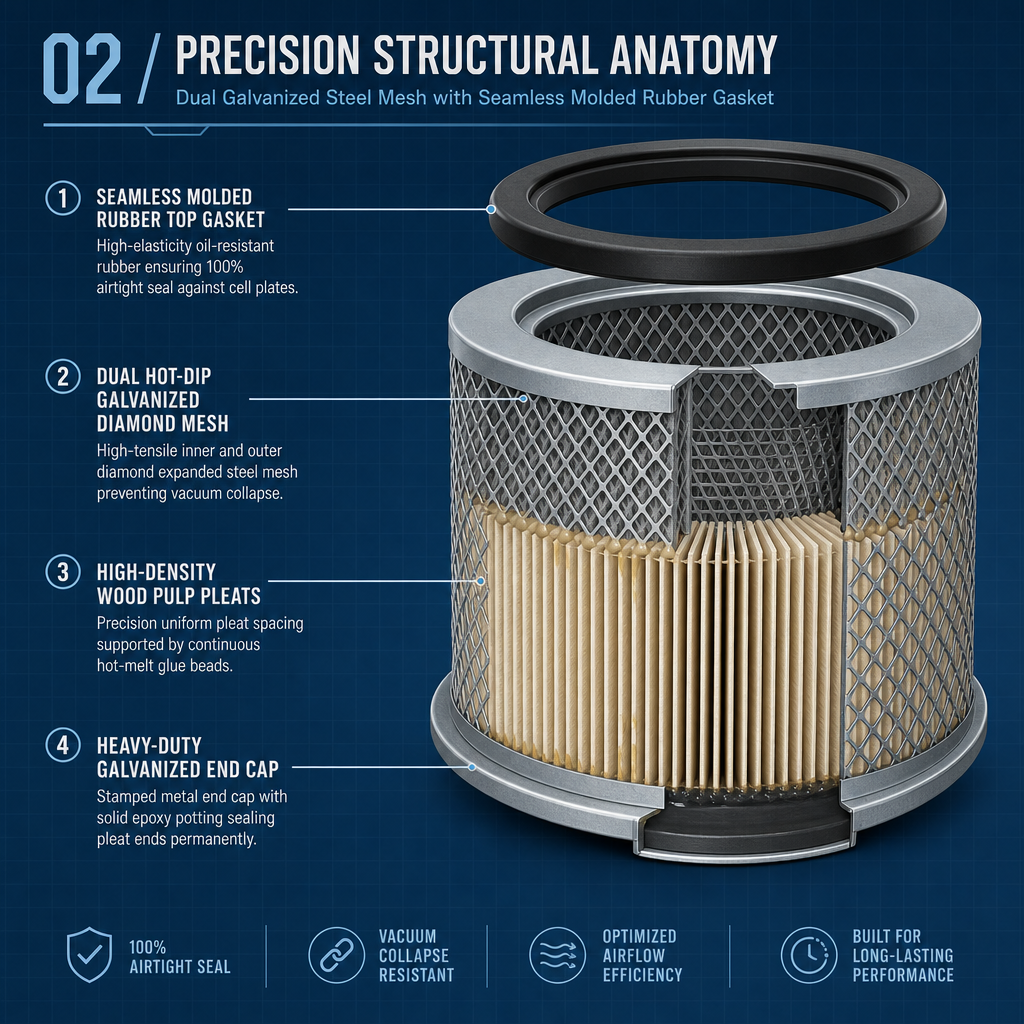

- Consistent pleat spacing — machine pleating keeps airflow even across the element.
- Standard sizes — interchangeable with common cartridge collector elements.
- Custom lengths — non-standard heights available on request.
Application Scenarios
Woodworking and furniture manufacturing
Sawdust and sanding dust are dry and non-aggressive; paper media delivers the lowest consumable cost per cubic metre of air cleaned.
Grain and feed processing
Starch and grain dust are handled economically at high dust loading.
Powder mixing and conveying
Dry mineral and chemical powders are captured without the cost penalty of membrane media.
General factory ventilation
Large air volumes with moderate dust load favour the cost efficiency of paper cartridges.
Shot blast and deburring
Dry abrasive dust is held by the pleat pack, with replacement cost kept low.
Replacement market
A direct, lower-cost alternative for standard cartridge collectors using paper elements.
Applicable Working Conditions
- Dry, non-aggressive dust only
- Not suitable for oil mist, sticky dust or high humidity
- Standard ambient temperature operation
- Pulse jet or manual cleaning
Product Specifications
| Item | Specification |
| Media | Pleated cellulose wood pulp paper |
| Filtration Rating | 5–100 μm |

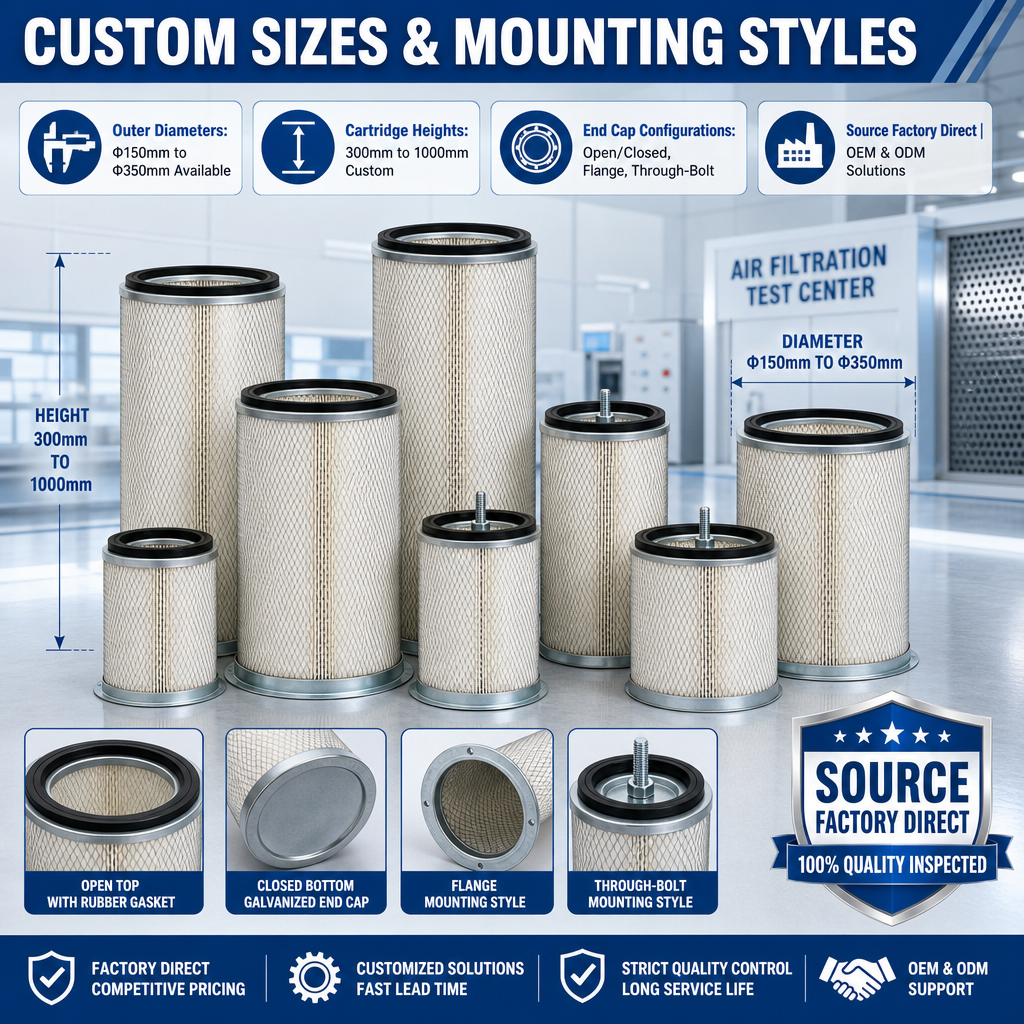

| Outer Diameter | Ø325 mm standard and custom |
| Length | 600 / 660 / 1000 mm and custom |
| MOQ | 10 pcs |
FAQ
Q1. Can paper cartridges handle oil mist?
No — use coalescing media for oil mist or wet dust.
Q2. What dust is it suited to?
Dry, non-aggressive dust such as wood, grain and mineral powders.
Q3. Is it cheaper than membrane media?
Yes, substantially, at the cost of lower sub-micron efficiency.
Q4. MOQ and lead time?
10 pcs, 7–15 days.
Key Specifications
- Media: pleated wood pulp paper
- Rating: 5–100 μm
- OD: Ø325 mm standard
- Use: dry non-aggressive dust only
- MOQ: 10 pcs
