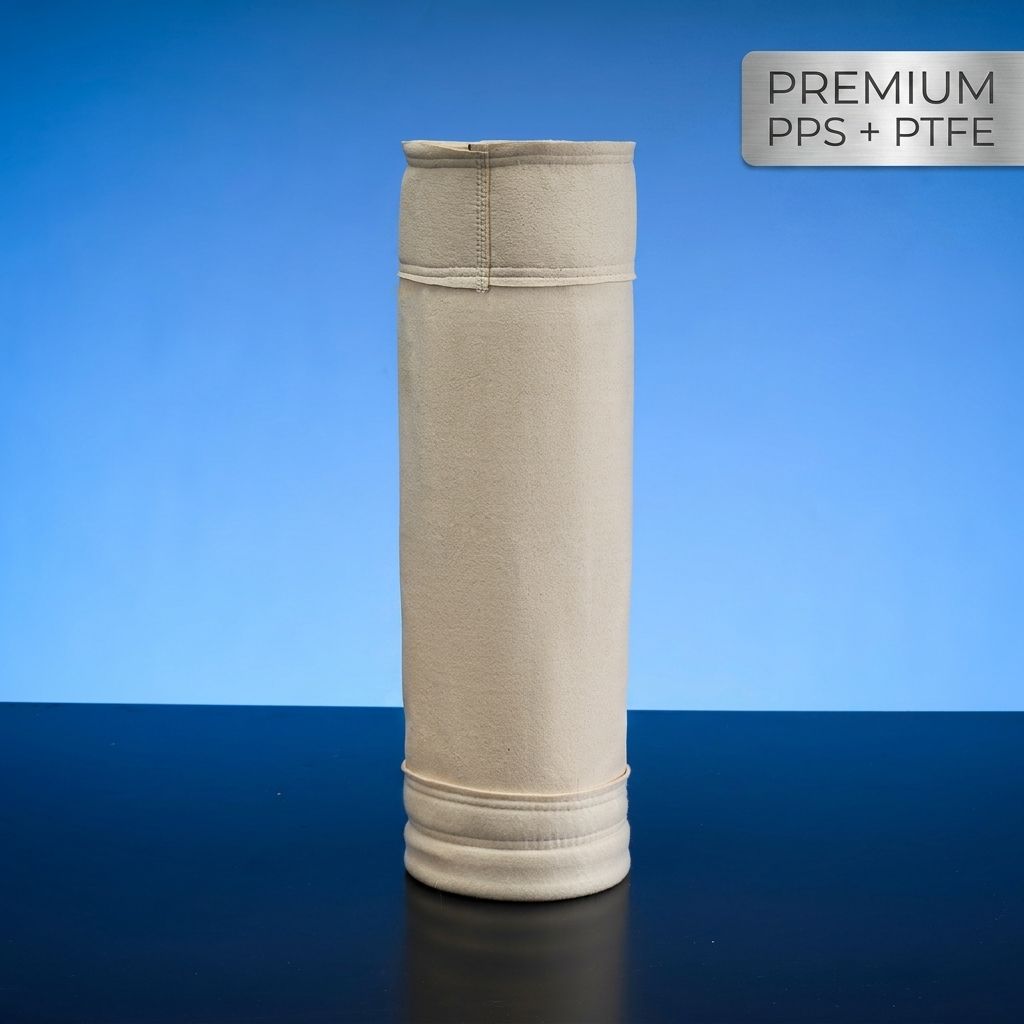

PTFE Membrane PPS Filter Bag High Efficiency Low Resistance Ultra-fine Dust Removal Filter Sleeve
Our pure PPS needle felt filter bags are made of 100% polyphenylene sulfide fiber, featuring excellent high temperature resistance, strong acid corrosion resistance and superior hydrolysis resistance. With a continuous working temperature up to 190℃ and instant temperature resistance of 230℃, it stably adapts to high-temperature flue gas dust removal from power plant boilers and waste incineration. The uniform fiber structure achieves 99.9% high-efficiency interception of 0.3μm fine dust, with low air resistance and stable air volume. Inherent flame retardant property effectively avoids combustion risks. Optional PTFE membrane treatment further enhances surface dust release performance, preventing dust embedding and bag clogging. It maintains stable filtration performance in long-term acidic and humid working conditions, greatly extending service life and reducing overall equipment operation and maintenance costs.
Brand:
GUANLIN
Spu:
GLpps-4
Description
Product Standard Parameters
Parameter Item |
Technical Specification |
Material |
100% Pure PPS (Polyphenylene Sulfide) Needle Felt |
Weight |
500g/㎡ / 550g/㎡ (Customizable) |
Filtration Precision |
0.3μm |
Filtration Efficiency |
99.7%–99.9% |
Working Temperature |
Continuous: ≤190℃, Instant: 230℃ |
Key Features |
High temperature resistance, acid resistance, hydrolysis resistance, flame retardant, low shrinkage |
Application Scenarios |
Power plant, boiler flue gas, waste incineration, chemical plant, desulfurization dust removal |
Post-treatment |
Singeing, calendering, water & oil repellent, PTFE membrane optional |
Customization Service |
Customizable diameter, length, sewing technology and surface treatment |
Key product selling points and advantages.
1. Excellent High Temperature Resistance, Stable High-temperature Operation
100% pure PPS fiber material supports long-term stable operation at 190℃ and instant temperature resistance up to 230℃, no thermal deformation or strength attenuation under high-temperature flue gas conditions.
2. Super Strong Acid & Corrosion Resistance, Anti-aging
Inherent excellent acid resistance, effectively resists sulfur dioxide, nitrogen oxide and acidic condensate corrosion, solves the problem of easy aging and breakage of ordinary filter bags in desulfurization flue gas.
3. Outstanding Hydrolysis Resistance, Adapt to Humid Working Conditions
Superior hydrolysis resistance, stable performance in high-temperature and high-humidity flue gas environment, not easy to swell or degrade, suitable for long-term industrial humid flue gas dust removal.
4. Inherent Flame Retardant & Low Shrinkage Performance
High limit oxygen index ensures self-extinguishing performance, effectively prevents dust spark combustion risks; ultra-low thermal shrinkage ensures stable filter bag size and no air leakage.
5. High Filtration Precision & Stable Low-resistance Operation
Uniform and dense fiber structure accurately intercepts 0.3μm fine dust with filtration efficiency up to 99.9%. Stable air permeability and low air resistance ensure long-term high-efficiency operation of dust collector.
6. Optional PTFE Membrane Upgrading, Easy Dust Cleaning
Optional PTFE membrane surface treatment realizes absolute surface filtration, excellent dust release performance, no dust embedding, thoroughly solves bag clogging and incomplete ash cleaning problems.
Dust Removal Challenges Q&A: A Special Round of Questions and Answers on Incomplete Dust Removal
Q1：Ordinary filter bags cannot withstand high-temperature boiler flue gas, easy to deform and damage with short service life?
Conventional polyester filter bags can only withstand 130℃, and are prone to shrinkage, brittleness and failure in high-temperature flue gas above 160℃. Our pure PPS filter bag stably operates at 190℃ with instant 230℃ temperature resistance. It maintains complete fiber structure and stable filtration performance in long-term high-temperature working conditions, avoiding frequent bag replacement and downtime loss.
Q2：Strong acidic desulfurization flue gas corrodes filter bags, causing aging and poor long-term dust removal effect?
Ordinary filter materials are severely corroded by sulfur-containing flue gas, resulting in fiber breakage and dust leakage. Our PPS filter bag has inherent strong acid resistance, effectively resists erosion of sulfur dioxide and acidic condensate. It keeps intact filtration structure in harsh acidic working conditions, permanently solving incomplete dust removal caused by corrosion damage.
Q3：High temperature and high humidity flue gas causes filter bag hydrolysis, clogging and rising operating resistance?
Common filter bags are prone to hydrolysis and fiber degradation in humid and hot environments. Our PPS filter bag features excellent anti-hydrolysis performance, no swelling or pulverization in long-term humid flue gas. Equipped with surface anti-sticking treatment, it avoids dust adhesion and bag clogging, maintaining low-resistance and stable operation all year round.
Q4：Sparks from boiler and incineration working conditions bring fire risks to ordinary filter bags?
Our PPS filter bag has high oxygen index and inherent self-extinguishing flame retardant performance. It will not continue to burn when leaving the fire source, effectively blocking spark ignition risks. It solves both safety hazards and dust leakage problems, ensuring safe and stable operation of dust removal system.
Q5：Dust collector air volume decreases over time, ultra-fine dust cannot be filtered completely and exhaust emits smoke?
Ordinary filter bags have loose fiber structure, ultra-fine dust penetrates easily and embeds into gaps, causing increasing resistance. Our high-density PPS needle felt forms a dense deep filtration layer, intercepting 0.3μm fine dust completely. Optional PTFE membrane realizes surface filtration with zero fine dust leakage, fundamentally solving incomplete dust removal and exhaust smoke problems.
Q6:Frequent filter bag replacement in high-temperature corrosive conditions leads high operation costs?
Our PPS filter bag integrates high temperature resistance, acid resistance and hydrolysis resistance, adapting to various harsh industrial flue gas working conditions. Its service life is 2–3 times longer than ordinary filter bags. Reducing replacement frequency and equipment shutdown time, it comprehensively lowers long-term spare parts and maintenance costs.
