Antistatic PTFE Coated Filter Bag Manufacturer

We manufacture antistatic PTFE coated filter bags for industrial dust collectors, pulse jet baghouses and demanding dust filtration systems.

These filter bags combine antistatic polyester filtration media with PTFE surface coating technology to provide dust filtration, static electricity dissipation and enhanced surface characteristics.

The PTFE coating creates a smoother filtration surface that can help improve dust release and reduce dust penetration into the filter media.

The antistatic construction helps dissipate electrostatic charge when properly integrated with the dust collector grounding system.

Custom filter bags are available according to filter bag dimensions, filter media specifications, dust collector models and actual operating conditions.

---

Key Features

• Antistatic polyester filter media

• PTFE coated filtration surface

• Conductive fiber or conductive grid construction

• Improved static charge dissipation

• Smooth PTFE filtration surface

• Excellent dust release characteristics

• Reduced dust penetration

• Good fine dust filtration performance

• Good chemical resistance

• Suitable for pulse jet cleaning

• Customized dimensions available

• Multiple top and bottom configurations

• Replacement filter bags available

• OEM and ODM manufacturing available

---

Product Overview

Antistatic PTFE coated filter bags are high-performance industrial dust collector filter bags designed for applications where both static electricity control and enhanced surface filtration characteristics are required.

The filter bag combines a polyester needle felt substrate with conductive components and a PTFE coating.

The polyester substrate provides mechanical strength and filtration support.

The conductive structure helps dissipate electrostatic charge.

The PTFE coating creates a smooth surface that can improve dust release and reduce dust penetration into the filtration media.

This combination makes the filter bag suitable for demanding applications involving fine powder, static-sensitive dust, sticky dust, moisture and chemically challenging operating environments.

---

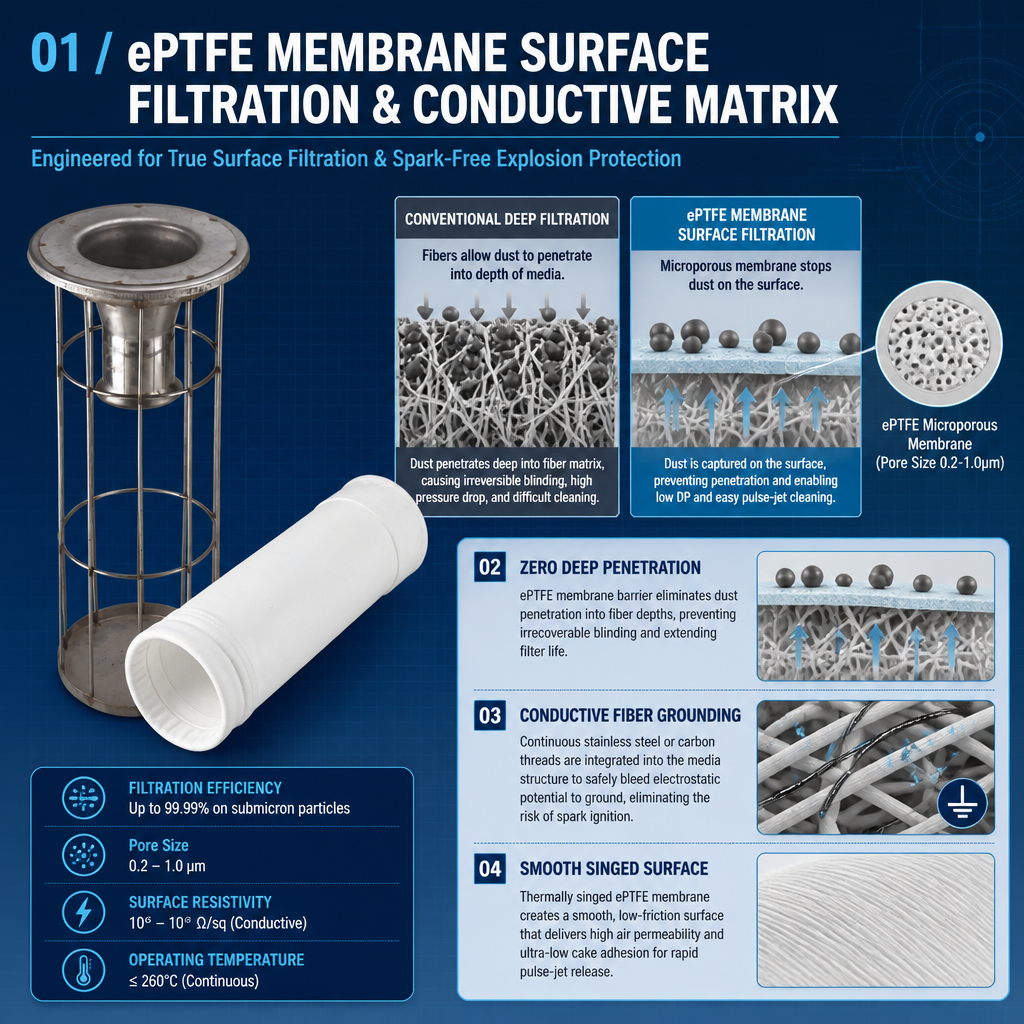

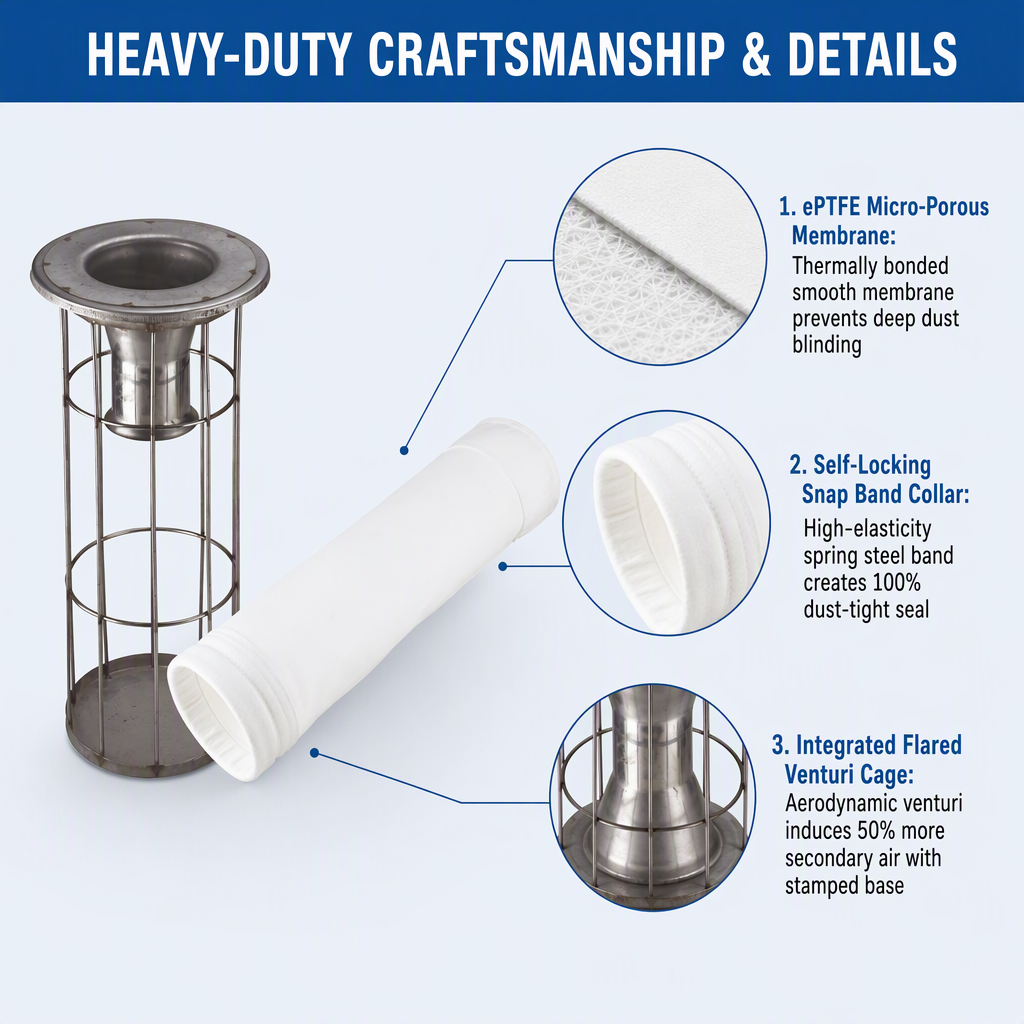

Antistatic PTFE Filter Bag Construction

The filter bag generally consists of three key filtration components.

1. Polyester Needle Felt

Provides the structural foundation and primary filtration support.

2. Conductive Structure

Conductive fibers, conductive grid or other antistatic components help dissipate electrostatic charge.

3. PTFE Coating

A PTFE coating forms a smooth filtration surface that can improve surface filtration and dust release characteristics.

The exact construction can be customized according to the required filtration performance and operating conditions.

---

PTFE Coated Filter Media

PTFE coating is applied to the filtration surface to improve surface characteristics.

Potential benefits include:

• Smooth filtration surface

• Improved dust release

• Reduced dust penetration

• Improved surface filtration

• Better resistance to certain chemicals

• Improved resistance to moisture in suitable applications

• Easier pulse jet cleaning

PTFE coating does not mean that the entire filter bag is made from PTFE.

The substrate, coating thickness and construction should be selected according to the actual application.

---

Antistatic Filter Media

The antistatic component is designed to help dissipate electrostatic charge generated during dust transportation and filtration.

Possible conductive constructions include:

• Conductive fibers

• Conductive grid

• Conductive yarn

• Antistatic surface structure

• Customized conductive construction

Electrical performance depends on the specific media construction and the complete grounding system.

For combustible dust applications, the filter bag should be considered as part of the overall dust collection safety system.

---

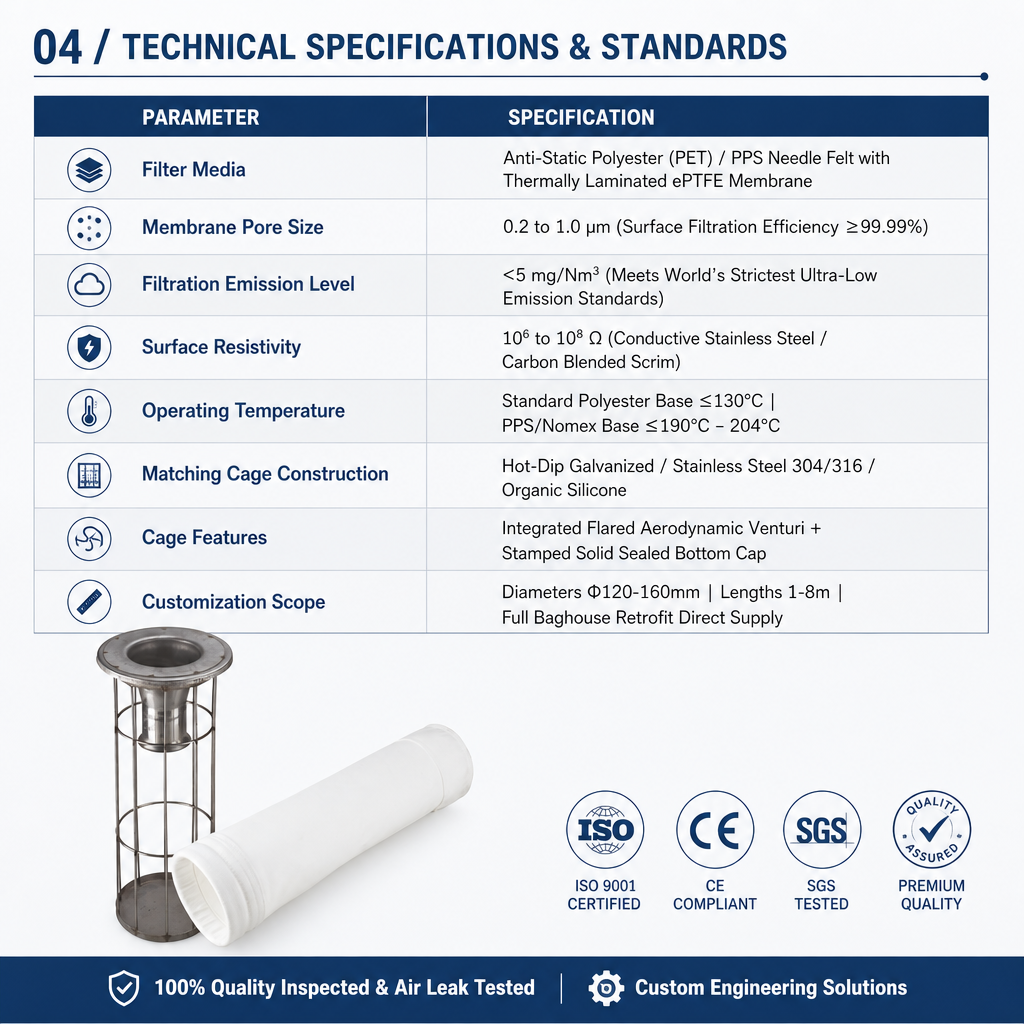

Antistatic PTFE Coated Filter Bag Specifications

Item	Specification
Product Type	Antistatic PTFE Coated Filter Bag
Base Material	Polyester
Filter Media	Polyester Needle Felt
Surface Treatment	PTFE Coating
Antistatic Structure	Conductive Fiber / Conductive Grid
Filter Type	Industrial Dust Collector Filter Bag
Cleaning Method	Pulse Jet / Customized
Diameter	Customized
Length	Customized
Surface Finish	PTFE Coated
Top Design	Customized
Bottom Design	Customized
Antistatic Function	Static Dissipation
Application	Industrial Dust Collection
OEM/ODM	Available

Final specifications should be selected according to dust characteristics, gas temperature, chemical conditions and system requirements.

---

PTFE Coated Antistatic Filter Bag for Fine Dust

Fine dust can penetrate conventional filter media and become embedded inside the filtration structure.

A PTFE-coated surface creates a smoother filtration layer that can improve surface filtration and dust release.

Potential applications include:

• Fine powder

• Mineral powder

• Chemical powder

• Pharmaceutical powder

• Carbon powder

• Industrial fine dust

• Pigment powder

• Dry process dust

The actual filtration efficiency should be confirmed according to the selected media construction and testing requirements.

---

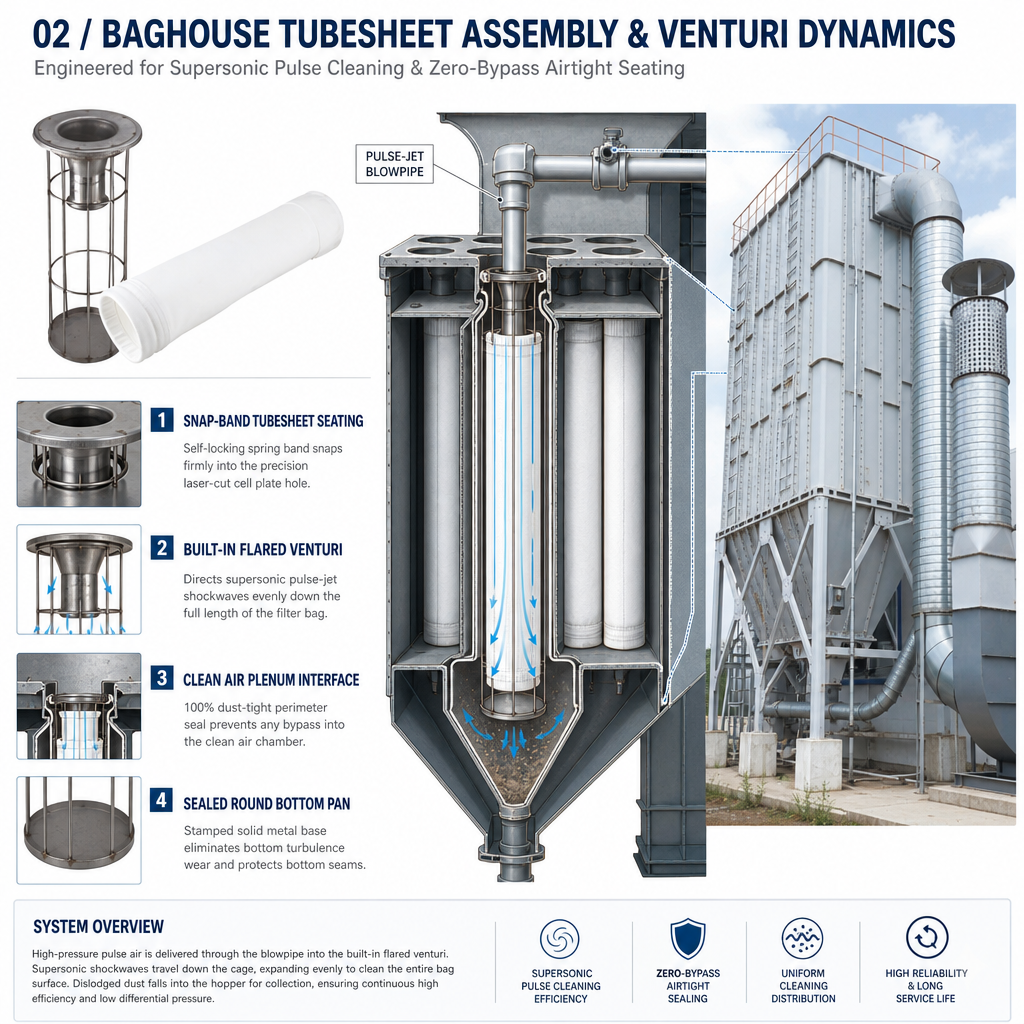

Antistatic PTFE Filter Bag for Pulse Jet Dust Collector

These filter bags are suitable for compatible pulse jet dust collector systems.

During operation, dust-laden air passes through the filtration surface while particles are captured on the filter bag.

Compressed-air pulse cleaning periodically removes accumulated dust.

The PTFE-coated surface can help improve dust release during cleaning.

The filter bag should be matched to:

• Bag diameter

• Bag length

• Cage dimensions

• Cleaning pressure

• Cleaning frequency

• Air-to-cloth ratio

• Gas temperature

• Dust concentration

• Dust characteristics

---

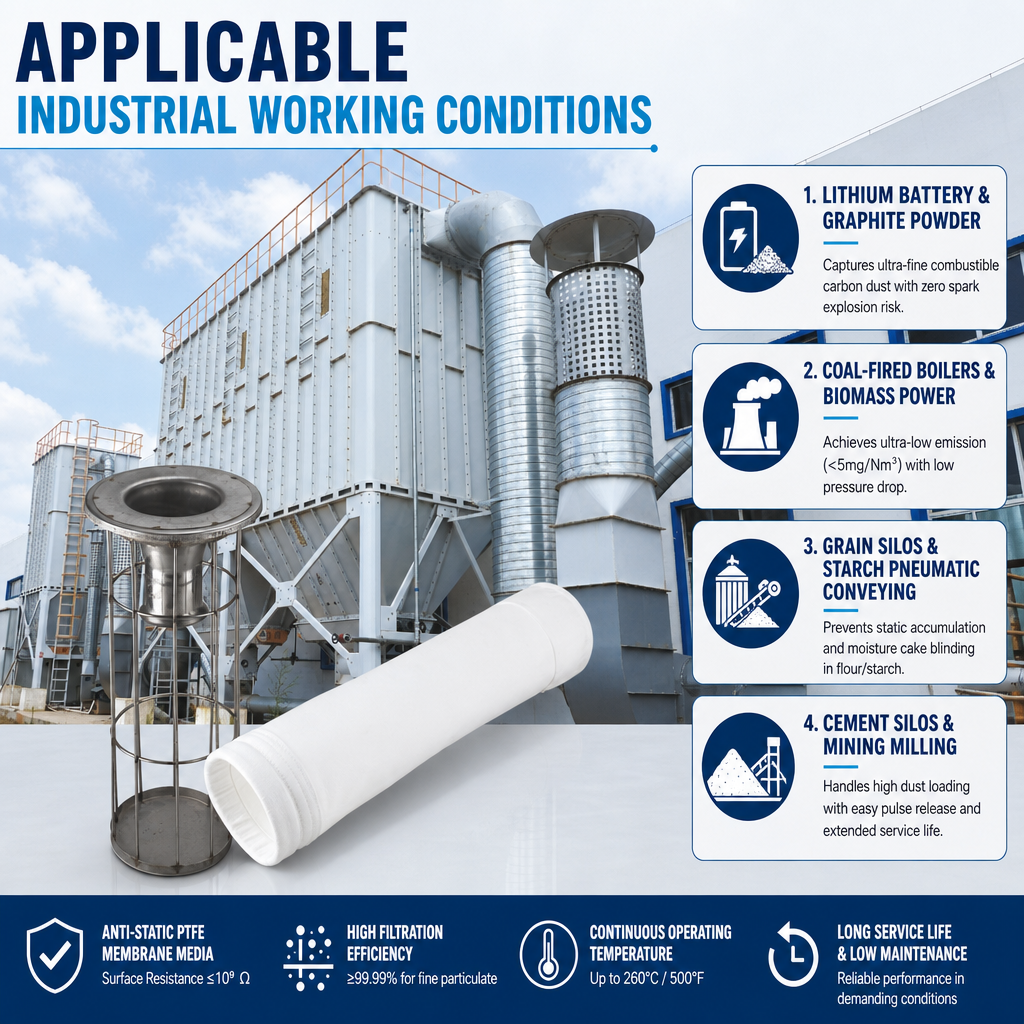

Antistatic Filter Bag for Combustible Dust

Antistatic filter bags can be considered for applications involving combustible or static-sensitive dust.

Potential dust types include:

• Wood dust

• Grain dust

• Flour dust

• Sugar dust

• Coal dust

• Carbon powder

• Plastic dust

• Pharmaceutical powder

• Chemical powder

• Fine industrial powders

However, an antistatic filter bag by itself does not make a dust collector explosion-proof.

A complete system evaluation may include:

• Dust explosibility

• Minimum ignition energy

• Grounding

• Electrical equipment

• Explosion venting

• Explosion isolation

• Fire prevention

• Dust collector design

---

PTFE Coated Filter Bag for Chemical Industry

PTFE-coated filter bags can be considered for selected chemical dust filtration applications because PTFE provides strong resistance to many chemicals.

Typical applications include:

• Chemical powder filtration

• Fine chemical processing

• Pigment production

• Industrial powder handling

• Chemical raw material processing

• Process dust collection

Actual chemical compatibility should be confirmed based on the specific chemical composition, concentration, temperature and exposure conditions.

---

PTFE Coated Filter Bag for Pharmaceutical Industry

Fine pharmaceutical powders require effective surface filtration and controlled dust collection.

PTFE-coated filter bags can be used in selected pharmaceutical and powder processing applications.

Potential applications include:

• Powder handling

• Powder mixing

• Pharmaceutical production

• Dry material conveying

• Fine powder collection

• Process dust filtration

Material compatibility, cleanliness requirements and applicable industry standards should be confirmed for each application.

---

PTFE Coated Filter Bag for Food & Powder Processing

PTFE-coated filter bags can be considered for suitable dry powder and material handling applications.

Applications may include:

• Food powder processing

• Flour handling

• Grain processing

• Sugar processing

• Powder conveying

• Ingredient handling

• Dry material processing

Specific food-contact requirements should be confirmed where applicable.

---

PTFE Coated Antistatic Filter Bag Advantages

PTFE Surface Coating

Creates a smooth filtration surface that can improve dust release.

Antistatic Construction

Helps dissipate electrostatic charge when correctly integrated with a grounding system.

Fine Dust Filtration

Suitable for selected applications involving fine powder and industrial dust.

Improved Dust Release

The smooth PTFE surface can help reduce dust adhesion during pulse jet cleaning.

Chemical Resistance

PTFE provides strong resistance to many chemical environments.

Customized Construction

Filter media, conductive structure, dimensions and mounting configurations can be customized.

---

PTFE Coated vs Standard Polyester Filter Bag

Feature	PTFE Coated Antistatic Filter Bag	Standard Polyester Filter Bag
Polyester Base	Yes	Yes
PTFE Surface	Yes	Usually No
Antistatic Structure	Yes	Usually No
Fine Dust Filtration	Excellent	Good
Dust Release	Enhanced	Standard
Static Dissipation	Designed for static control	Limited
Chemical Resistance	Enhanced	Moderate
Moisture Resistance	Enhanced	Application Dependent
Cost	Higher	More Economical
Demanding Applications	Suitable	Application Dependent

---

Antistatic PTFE Filter Bag Replacement

We manufacture replacement antistatic PTFE coated filter bags for industrial dust collectors and baghouse systems.

Replacement bags can be manufactured according to:

• Existing filter bag samples

• Technical drawings

• Dust collector models

• Filter bag dimensions

• Filter cage dimensions

• Conductive requirements

• PTFE coating requirements

• Operating conditions

Send us your original filter bag or technical drawing for accurate replacement manufacturing.

---

Custom Antistatic PTFE Coated Filter Bag

We provide customized manufacturing for industrial customers requiring specialized filter bags.

Customization options include:

• Filter bag diameter

• Filter bag length

• Polyester media weight

• PTFE coating

• Conductive grid

• Conductive fiber

• Surface treatment

• Top design

• Bottom design

• Sewing configuration

• Grounding configuration

• Private labeling

• Customized packaging

Products can be manufactured according to drawings, samples, dimensions and operating conditions.

---

How to Choose an Antistatic PTFE Coated Filter Bag

1. Dust Type

Determine whether the dust is fine, abrasive, sticky, combustible or static-sensitive.

2. Particle Size

Fine particles may require enhanced surface filtration.

3. Gas Temperature

Confirm continuous and peak operating temperatures.

4. Chemical Environment

Identify acids, alkalis, solvents or other aggressive chemicals.

5. Humidity

Moisture and condensation can affect dust release and filter performance.

6. Static Requirements

Determine whether conductive or antistatic media is required.

7. Dust Collector Design

Confirm:

• Filter bag dimensions

• Cage dimensions

• Cleaning method

• Pulse pressure

• Cleaning frequency

• Air-to-cloth ratio

---

Quality Control

Quality inspection can include:

• Polyester media inspection

• PTFE coating inspection

• Conductive structure inspection

• Fabric weight inspection

• Thickness inspection

• Dimensional inspection

• Sewing inspection

• Top and bottom inspection

• Electrical resistance testing when specified

• Finished filter bag inspection

• Packaging inspection

Electrical and filtration performance requirements can be customized according to customer specifications.

---

OEM & ODM Antistatic PTFE Filter Bag Manufacturer

We provide OEM and ODM antistatic PTFE coated filter bag manufacturing for global industrial customers.

Our services include:

• Custom filter media

• PTFE coating

• Conductive grid construction

• Conductive fiber construction

• Custom filter bag dimensions

• Custom sewing

• Customized mounting

• Private labeling

• Customized packaging

• Bulk manufacturing

• Replacement filter bags

Send us your drawing, sample, specifications or operating conditions for a customized filtration solution.

---

Factory Direct Antistatic PTFE Filter Bag Supplier

We supply antistatic PTFE coated dust collector filter bags directly to:

• Dust collector manufacturers

• Industrial filtration companies

• Engineering companies

• Industrial distributors

• Powder processing companies

• Chemical manufacturers

• Pharmaceutical manufacturers

• Factory end users

We support filter media selection, custom manufacturing, OEM/ODM production and replacement filter bag supply.

---

Packaging & Shipping

Filter bags are carefully packaged to protect the PTFE-coated surface, filtration media and conductive components during transportation.

Packaging can be customized according to:

• Product dimensions

• Order quantity

• Export requirements

• Customer specifications

• Private label requirements

International shipping arrangements are available according to order requirements.

---

Frequently Asked Questions

What is an antistatic PTFE coated filter bag?

It is an industrial filter bag that combines antistatic filtration media with a PTFE-coated surface to provide dust filtration, static charge dissipation and enhanced surface filtration characteristics.

What is the advantage of PTFE coating?

PTFE coating creates a smooth surface that can improve dust release, reduce dust penetration and provide enhanced resistance to many chemical environments.

What is the advantage of the antistatic structure?

The conductive structure helps dissipate electrostatic charge when the filter bag is properly connected to the dust collector grounding system.

Can this filter bag be used for fine powder?

Yes. PTFE-coated filter bags can be considered for selected fine powder applications where enhanced surface filtration and dust release are required.

Can antistatic PTFE filter bags be used for combustible dust?

They can be considered for suitable combustible dust applications, but the complete dust collection system must be properly designed and evaluated for fire and explosion risks.

Are these filter bags suitable for pulse jet dust collectors?

Yes. They can be manufactured for compatible pulse jet baghouse systems.

Can you make custom antistatic PTFE filter bags?

Yes. We can customize the filter media, PTFE coating, conductive grid or fiber, bag dimensions, top and bottom configuration and sewing design.

Do you provide replacement filter bags?

Yes. Replacement antistatic PTFE coated filter bags can be manufactured according to samples, drawings or existing filter bag dimensions.

Can you provide electrical resistance testing?

Yes. Electrical resistance or other antistatic performance testing can be provided according to agreed technical requirements.

What information is required for quotation?

Please provide filter bag diameter, length, quantity, top and bottom design, dust type, gas temperature, chemical conditions, static requirements and dust collector model whenever available.

---

Antistatic PTFE Coated Filter Bag Manufacturer

If you are looking for a reliable antistatic PTFE coated filter bag manufacturer, PTFE dust collector filter bag supplier or custom industrial filter bag factory, we can provide customized filtration products for demanding dust collection applications.

Our filter bags combine polyester filtration media, conductive antistatic construction and PTFE surface coating to provide a specialized solution for fine dust, static-sensitive materials and demanding industrial filtration.

From standard replacement bags to customized OEM products, we provide filter media selection, custom manufacturing, OEM/ODM production and industrial dust filtration support.

Send us your filter bag dimensions, drawing, sample or operating conditions to receive a customized antistatic PTFE coated filter bag solution and quotation.

---

Core

antistatic PTFE coated filter bag
PTFE coated filter bag
antistatic filter bag
PTFE dust collector filter bag
antistatic dust collector filter bag
PTFE coated dust filter bag
antistatic polyester filter bag
PTFE coated polyester filter bag
conductive PTFE filter bag
PTFE baghouse filter bag

Commercial

antistatic PTFE filter bag manufacturer
PTFE coated filter bag manufacturer
PTFE filter bag supplier
antistatic filter bag supplier
PTFE dust collector filter bag manufacturer
custom PTFE coated filter bag
custom antistatic filter bag
PTFE filter bag factory
PTFE filter bag OEM
replacement PTFE filter bag

Application

PTFE filter bag for dust collector
PTFE filter bag for pulse jet dust collector
antistatic filter bag for combustible dust
PTFE filter bag for fine powder
PTFE filter bag for chemical industry
PTFE filter bag for pharmaceutical industry
PTFE filter bag for powder processing
PTFE filter bag for food processing
antistatic filter bag for industrial dust collection
PTFE filter bag for baghouse

Long-Tail

antistatic PTFE coated polyester filter bag
PTFE coated antistatic dust collector filter bag
conductive grid PTFE coated filter bag
PTFE coated filter bag for fine dust filtration
antistatic PTFE filter bag for pulse jet baghouse
PTFE coated filter bag for combustible dust
custom antistatic PTFE dust collector filter bag
PTFE coated polyester needle felt filter bag
replacement antistatic PTFE filter bag
PTFE coated filter bag manufacturer for industrial dust collection
antistatic PTFE filter bag for chemical powder
PTFE coated filter bag for pharmaceutical powder
conductive PTFE dust collector filter bag manufacturer
custom PTFE coated baghouse filter bag
