GUANLIN activated carbon pleated filter, high efficiency panel for odour and VOC removal in HVAC and cleanroom air.
Activated carbon pleated panels combining high efficiency particulate capture with odour and VOC adsorption, for HVAC, cleanroom and laboratory supply air where gas-phase contamination matters.
Description

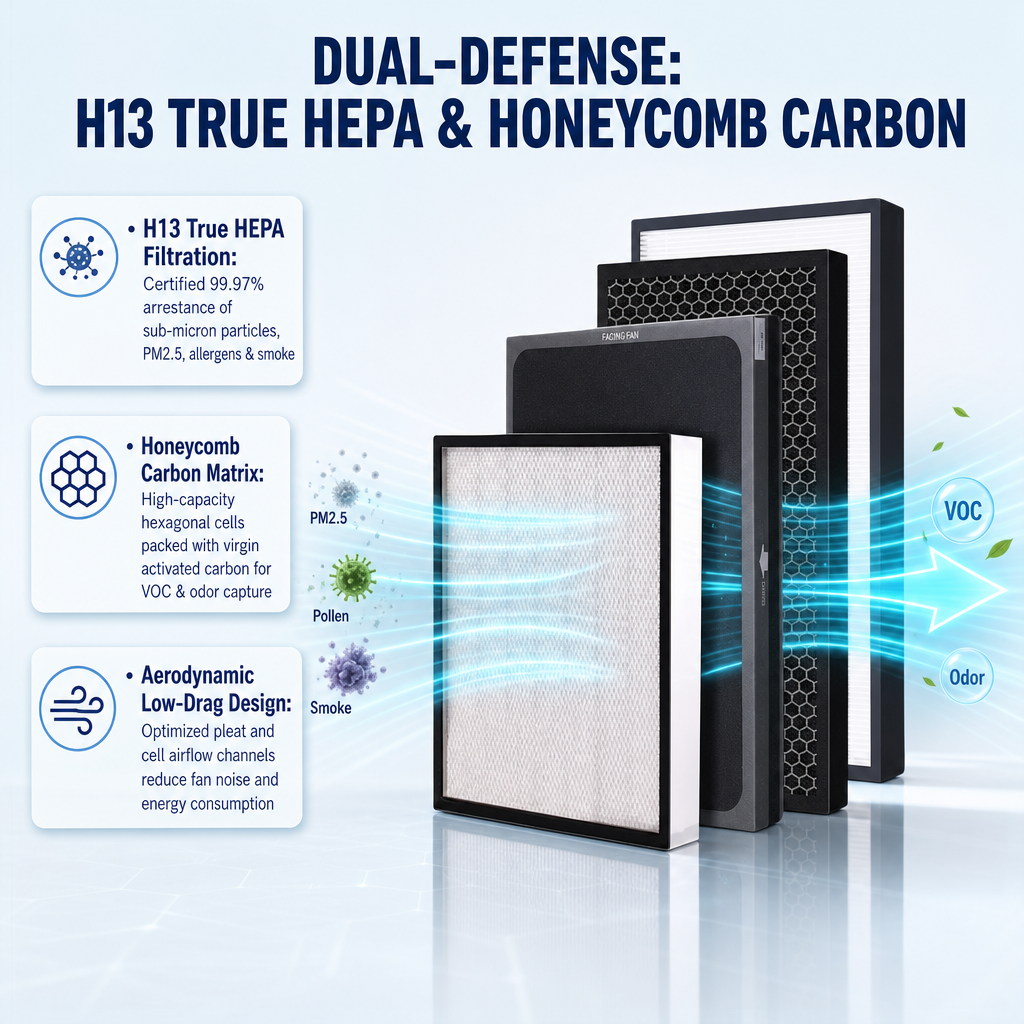

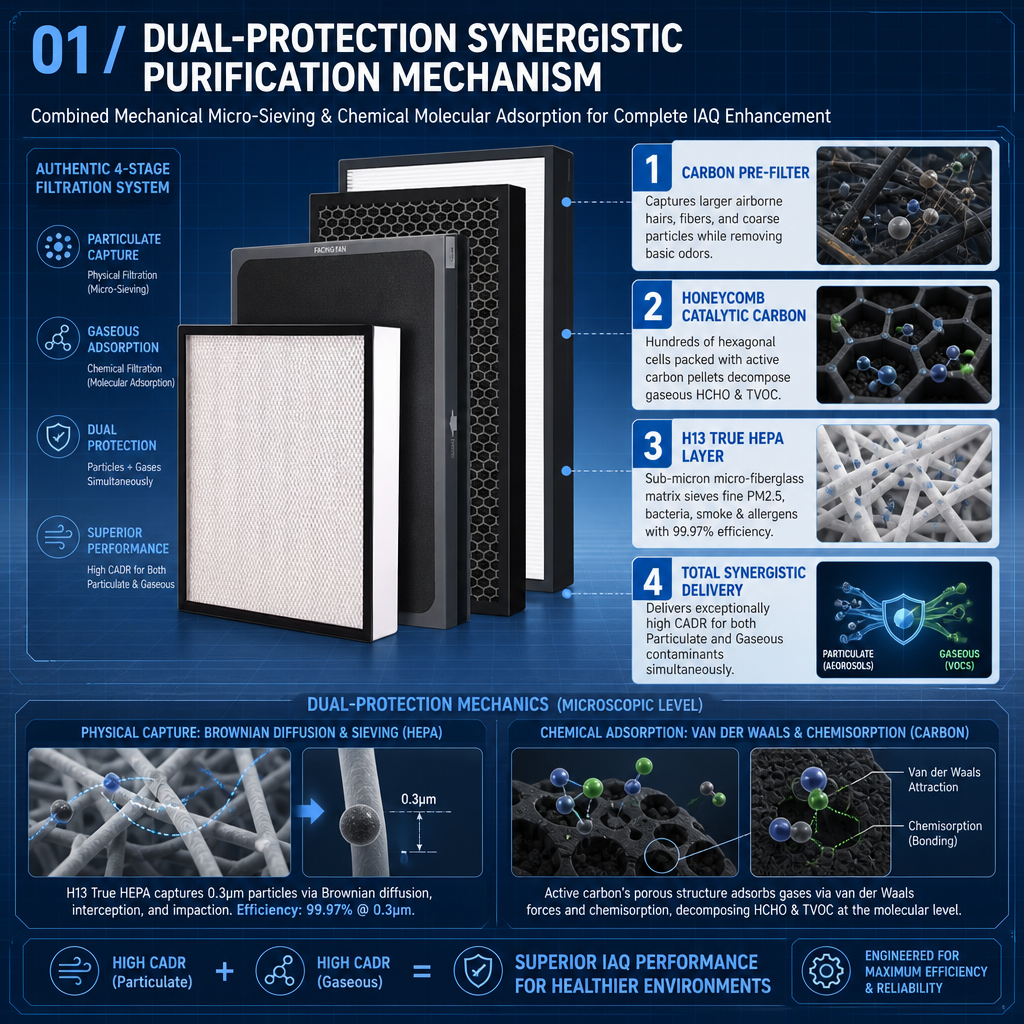

Particulate filtration does nothing about smell. Solvents, cooking odours, vehicle exhaust and process VOCs pass straight through a HEPA filter because they are gases, not particles. An activated carbon pleated panel addresses that: the pleat pack carries a high-efficiency particulate layer alongside granular or impregnated carbon, so one stage handles both the dust and the gas phase.
Why Choose GUANLIN Activated Carbon Panels
- Two functions in one stage — particulate removal plus VOC and odour adsorption.
- High carbon loading — more吸附 capacity per panel than thin carbon mats.

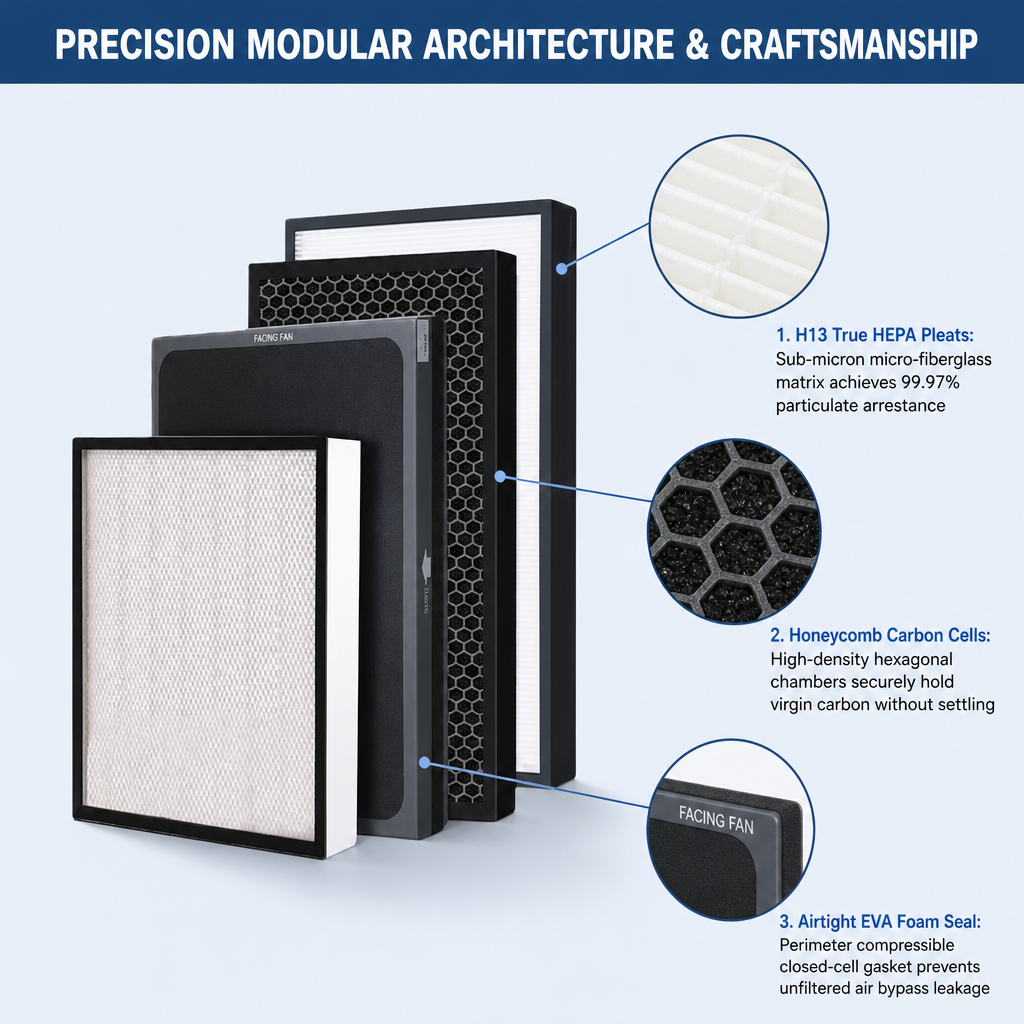

- Pleated construction — large surface area keeps particulate efficiency high at low pressure drop.
- Impregnation options — acid gas or ammonia removal grades available.
- Standard HVAC dimensions — direct replacement for panel filters.
- Custom sizes — matched to the AHU or unit opening.
Application Scenarios
Commercial HVAC in city centres
Vehicle exhaust and urban odours are adsorbed before reaching occupied spaces.
Laboratories and hospitals
Solvent and chemical vapours are removed from supply air and fume recirculation systems.
Food processing and kitchens
Cooking and process odours are controlled before exhaust or recirculation.
Cleanrooms with gas-phase limits
VOC-sensitive processes benefit from carbon stages ahead of HEPA.
Museums, archives and galleries
Corrosive gas removal protects collections and sensitive equipment.
Industrial ventilation
Solvent and hydrocarbon vapours from process areas are adsorbed.
Our Factory
GUANLIN has manufactured filtration products in Dongguan since 2003, operating a 6,000 m² plant with automated filter bag sewing lines, automated singeing equipment, cage welding systems and pleated filter production lines. Products are exported to Singapore, Vietnam, Malaysia and other markets, with ISO 9001 and ISO 14001 certified quality management.
Product Specifications
| Item | Specification |
| Type | Activated carbon pleated panel |
| Carbon | Granular activated carbon / impregnated grades |
| Particulate Efficiency | Medium to high efficiency |
| Frame | Paper or galvanised frame |
| MOQ | 30 pcs |
FAQ
Q1. Does carbon also filter dust?
Yes, the pleat pack provides particulate efficiency alongside gas adsorption.
Q2. How long does the carbon last?
Depends on gas concentration; typically 3–6 months in urban HVAC duty.
Q3. Can it remove acid gases?
Yes, impregnated grades are available for acid gas and ammonia.
Q4. MOQ and lead time?
30 pcs, 10–20 days.
Key Specifications
- Type: activated carbon pleated panel
- Function: particulate + VOC/odour
- Sizes: standard and custom
- MOQ: 30 pcs
